8-38 Phaser 3300MFP Service Manual
Service Parts Disassembly
Duplex Guide Housing (With Feed Roller)
Note
To allow better access to the parts, lay the machine on its back. Refer to
“Laying the Unit on its Back” on page 8-4.
Before you remove the Duplex Guide Housing, you must remove:
■ Duplex Unit (page 8-35)
■ Pick Up Roller Shaft (page 8-37)

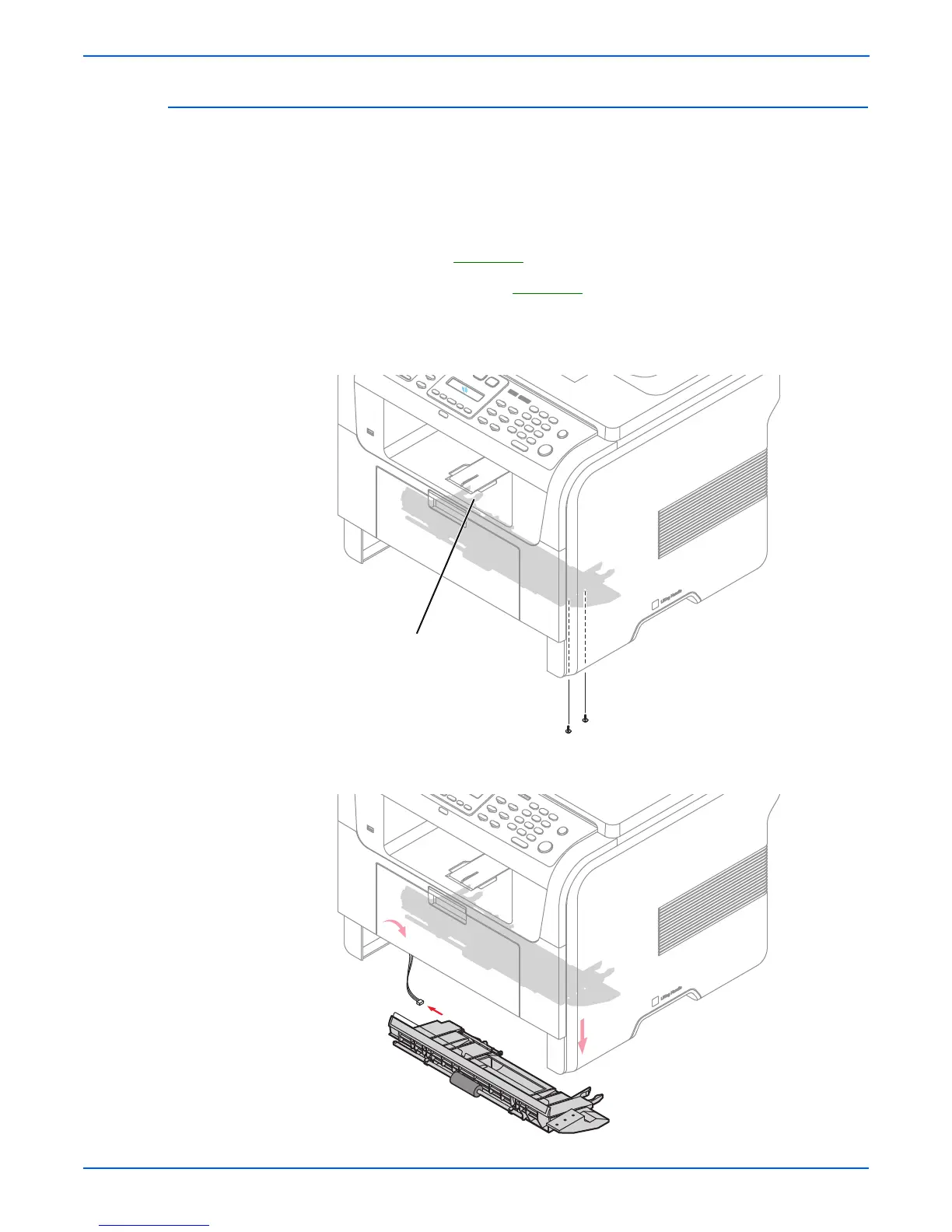

1. Remove the screw securing the white Duplex Unit front guide on the left
side and remove the guide from the Duplex Guide Housing.
2. Remove the two screws securing the Duplex Guide Housing.
3. Unplug the one connector from the sensor (Photo Interrupter) and remove
the Duplex Guide Housing (with Feed Roller), as shown below.
s3300mfp-123
Duplex Unit Front Guide (Left)
s3300mfp-124
