Phaser 3300MFP Service Manual 8-25
Service Parts Disassembly

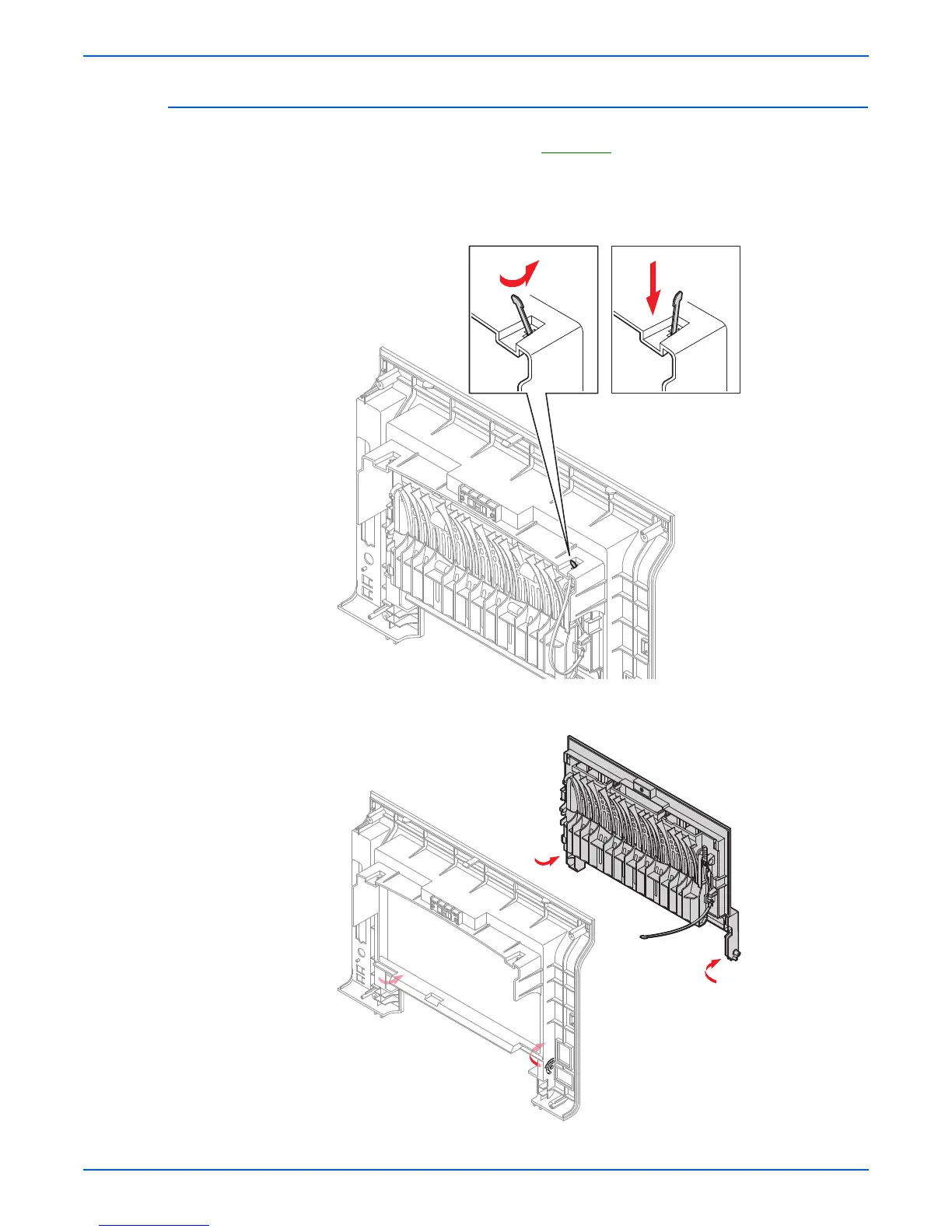

Face Up Cover Assembly
1. Remove the Duplex Unit (page 8-35).
2. Open the Face Up Cover and release the Stopper Strap from the Face Up
Cover
3. Release the Stopper Strap from the Rear Cover by twisting the strap 90
degrees so that the wide end of the strap can pull through the slot.
4. Unlatch the Face Up Cover from the Rear Cover and then release the
Face Up Cover, as shown below.
Stopper Strap
s3300mfp-014
