8-36 Phaser 3300MFP Service Manual
Service Parts Disassembly
Paper Feeder
Pick Up Roller Assembly
Note
To allow better access to the parts, lay the machine on its back. Refer to
“Laying the Unit on its Back” on page 8-4.
To remove the Pick Up Roller Assembly:
1. Take out the Cassette.
2. lift the latch tab on the Pick Up Roller Assembly from the notch in the
Shaft, then slide the Pick Up Roller Assembly to the right and free of the
shaft.

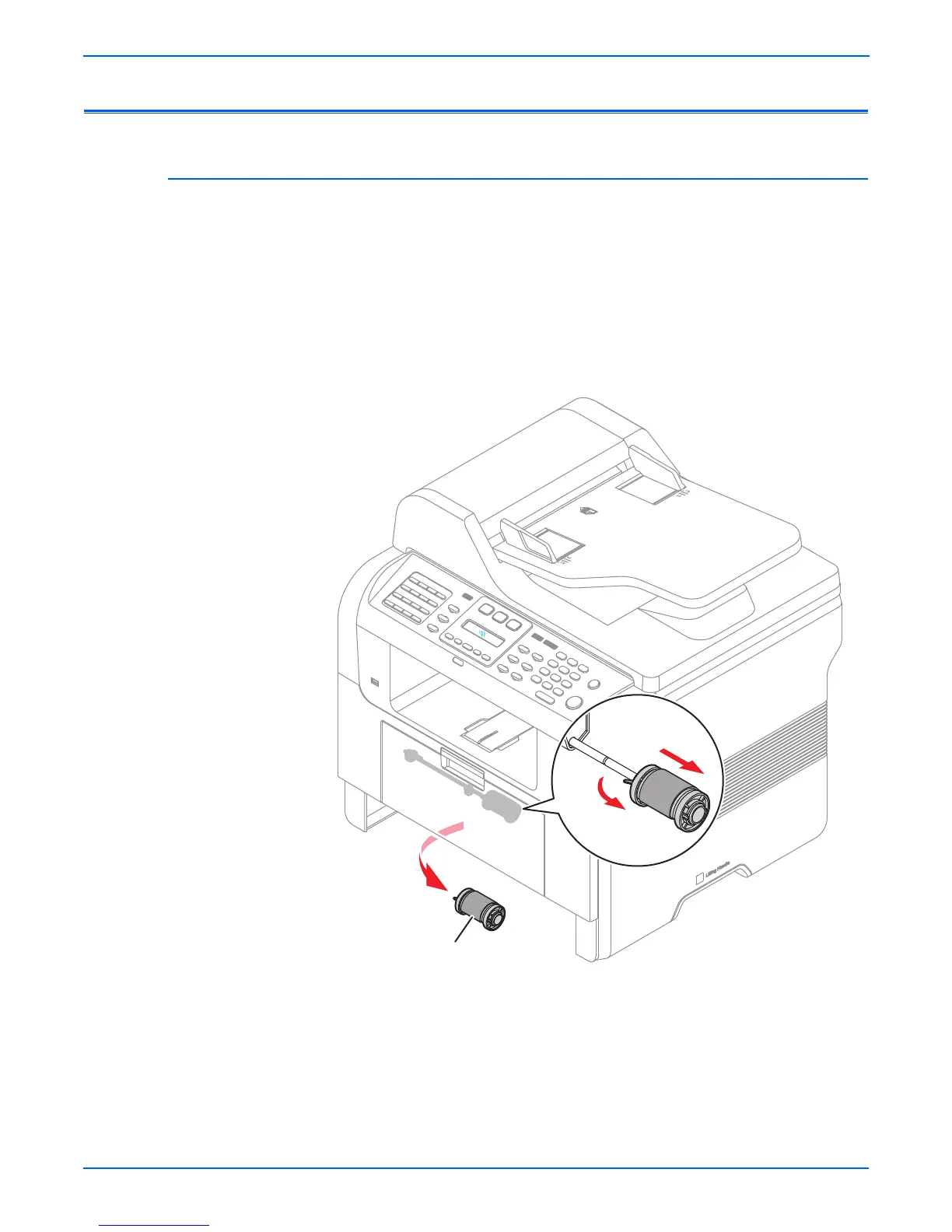

s3300mfp-121
Pick Up Roller
