Xerox WorkCentre 3119 Service Manual

Repairs/Adjustments
WorkCentre 3119 06/06 4-5
REP 3 Fuser Fan
Parts list on PL 2
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Rear Cover. (Refer to REP 2)

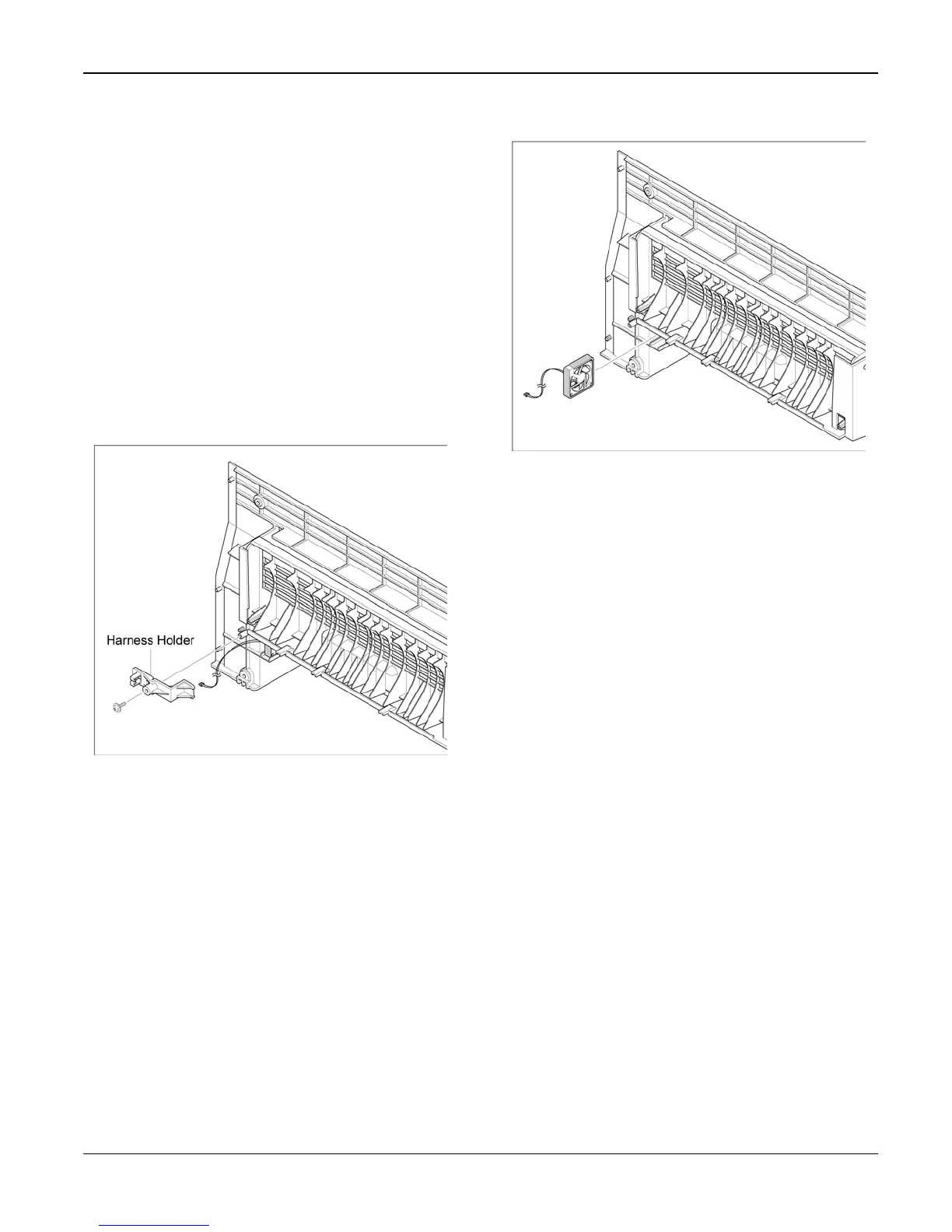

2. Release the harness from the Harness
Holder. Remove 1 screw, then the Har-
ness Holder, Figure 1.
Figure 1
3. Remove the Fuser Fan, Figure 2.
Figure 2
