Repairs/Adjustments
4-26 06/06 WorkCentre 3119
REP 20 Drive Assembly
Parts list on PL 6
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Front Cover. (Refer to REP
1)
2. Remove the Rear Cover. (Refer to REP 2)
3. Remove the Left Side Cover. (Refer to
REP 5)
4. Remove the 6 screws, Figure 1.
Note: When replacing the drive assembly,
tighten the screws in the order that they are
numbered on the Drive Assembly plate.

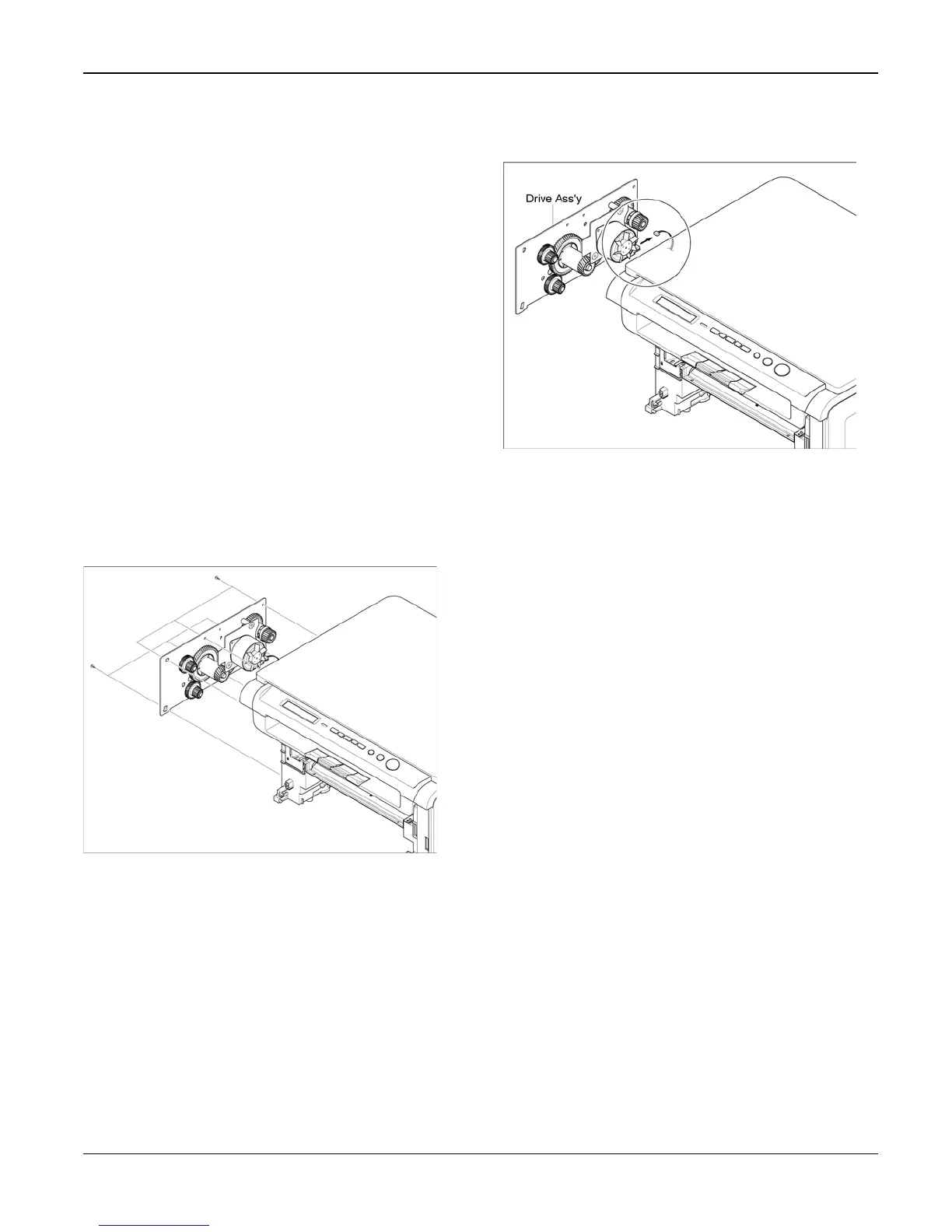

Figure 1
5. Disconnect the motor connector and
remove the drive assembly, Figure 2.
Figure 2
