Repairs/Adjustments
4-6 06/06 WorkCentre 3119
REP 4 Right Side Cover
Parts list on PL 2
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Front Cover. (Refer to REP
1)
2. Remove the Rear Cover. (Refer to REP 2)

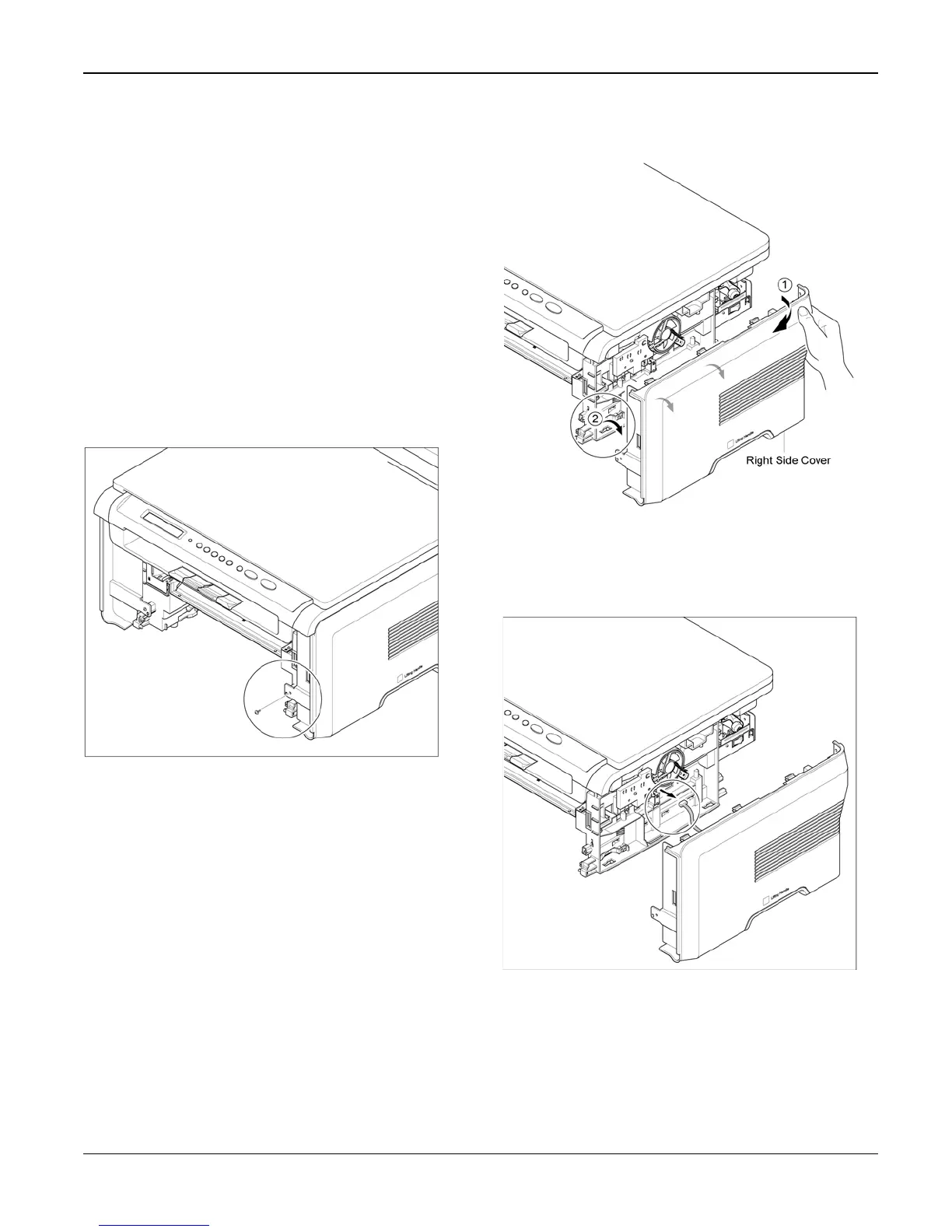

3. Remove 1 screw, Figure 1.
Figure 1
4. Gently flex the Right Side Cover in the
direction of the arrows, Figure 2.
Figure 2
5. Disconnect CON 4 from the SMPS/HVPS,
Figure 3.
Figure 3
To Next Page
