Repairs/Adjustments
4-20 06/06 WorkCentre 3119
REP 14 SMPS/HVPS
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Engine Shield Assembly.
(Refer to REP 12)

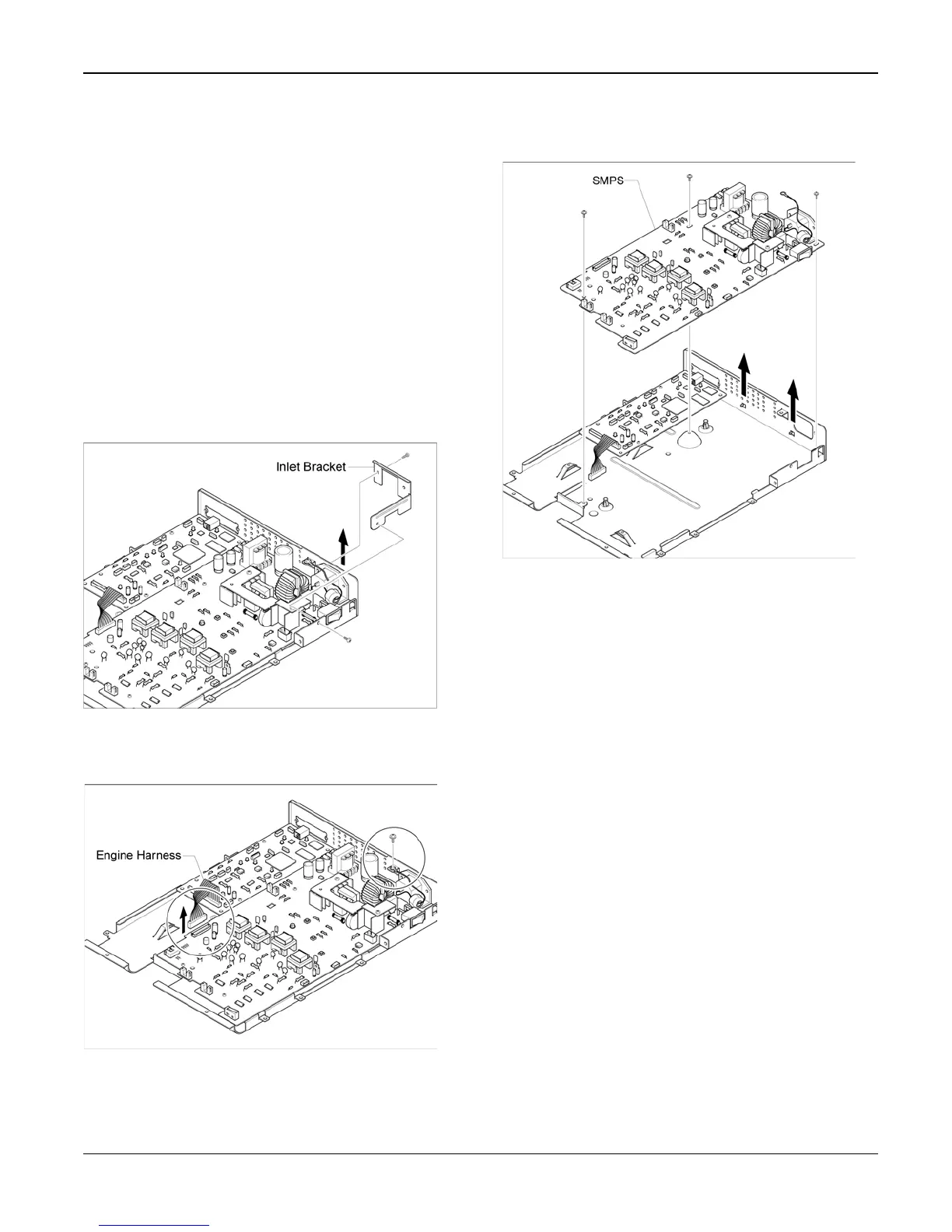

2. Remove 2 screws, then the Inlet Bracket,
Figure 1.
Figure 1
3. Disconnect CON 2, Figure 2.
Figure 2
4. Remove 3 screws then the SMPS/HVPS,
Figure 3.
Figure 3
To Next Page
