Repairs/Adjustments
WorkCentre 3119 06/06 4-19

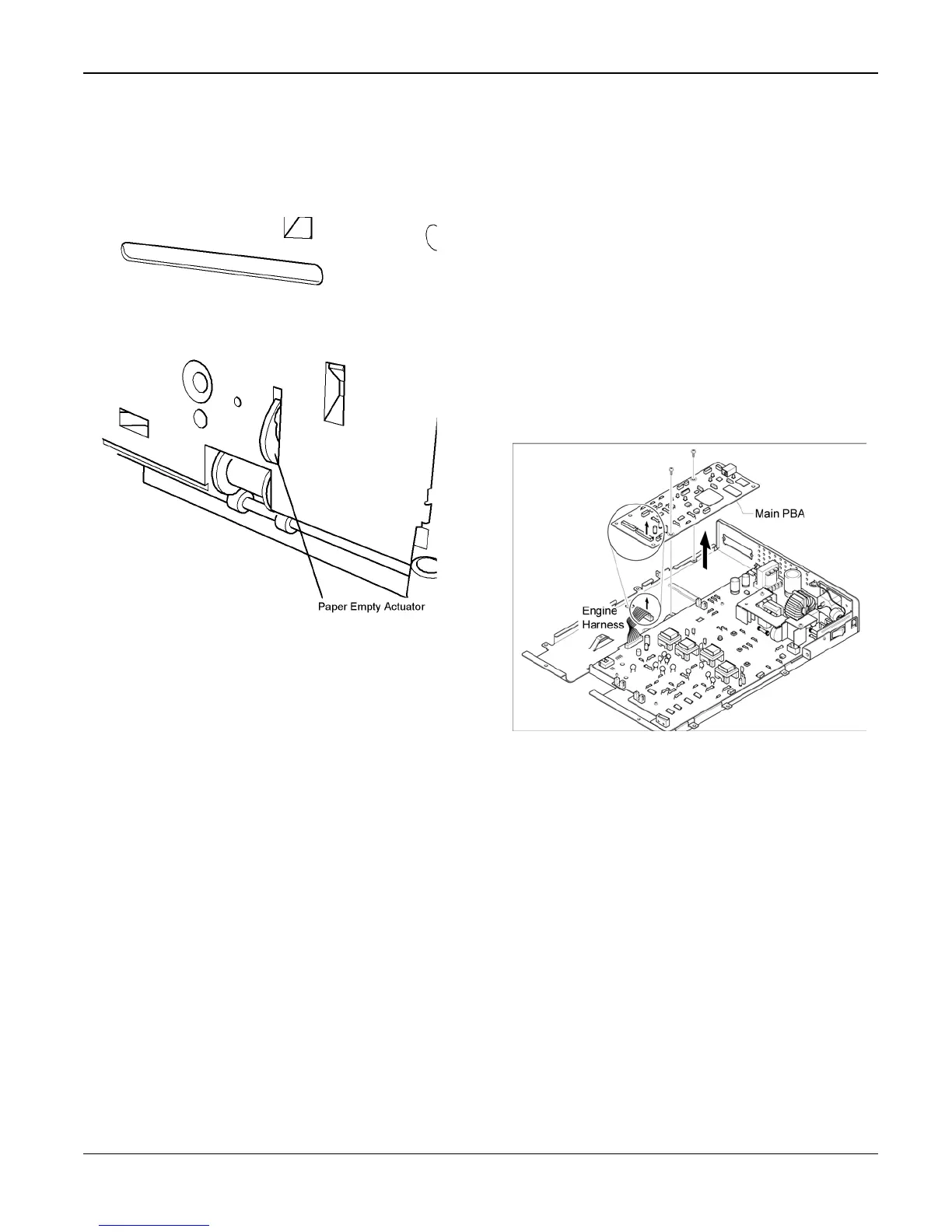

Note: When replacing the Engine Shield
Assembly, replace the Paper Empty Actuator
through the gap on the assembly. Ensure all
the screws are properly fitted, Figure 3.
Figure 3
REP 13 Main PBA
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Engine Shield Assembly.
(Refer to REP 12)
2. Disconnect CN 4. Remove 2 screws, then
the Main PBA, Figure 1.
Figure 1
To Next Page
