Xerox WorkCentre 3119 Service Manual

Repairs/Adjustments
WorkCentre 3119 06/06 4-7

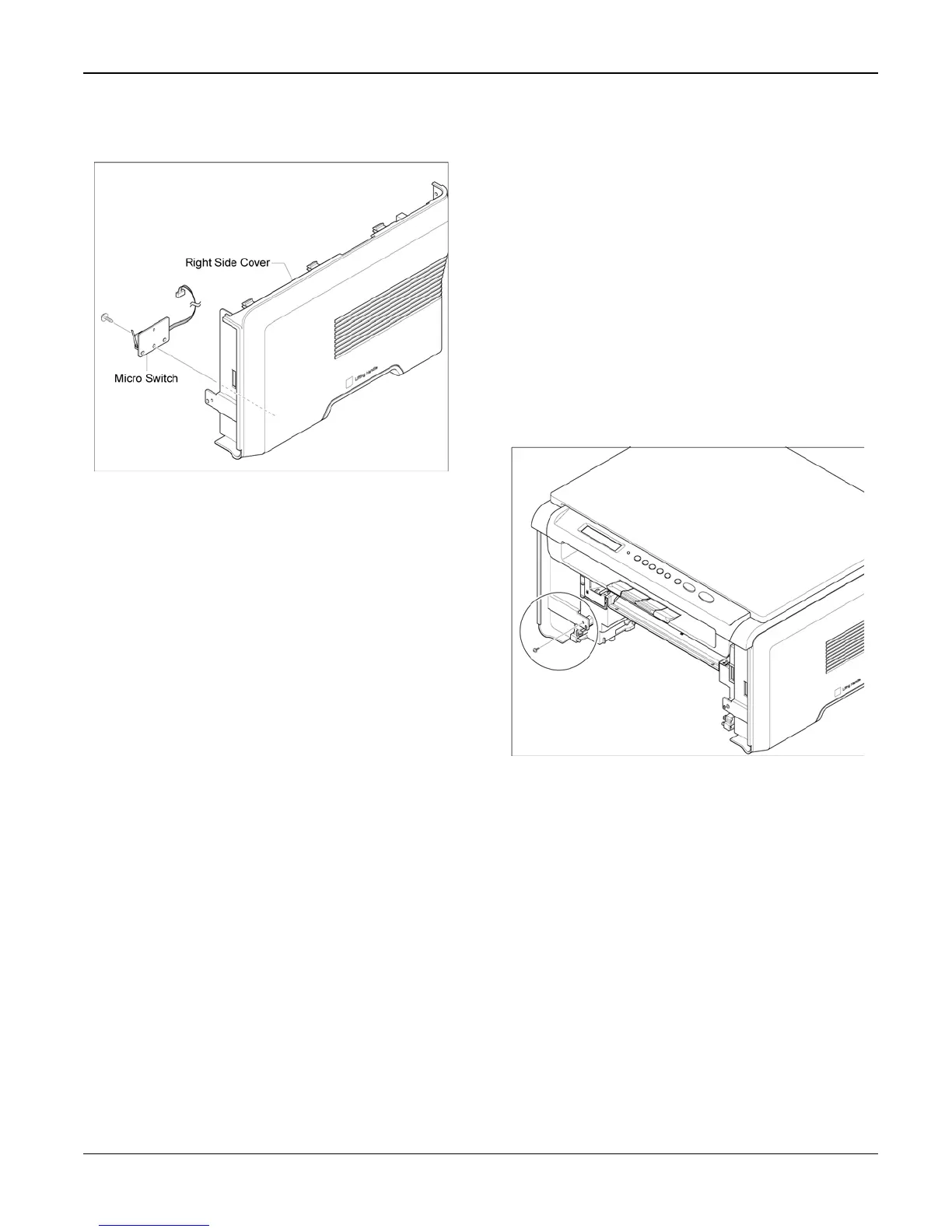

6. If necessary, remove the Cover Open
Micro Switch, Figure 4.
Figure 4
REP 5 Left Side Cover
Parts list on PL 2
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Front Cover. (Refer to REP
1)
2. Remove the Rear Cover. (Refer to REP 2)
3. Remove 1 screw, Figure 1.
Figure 1
