Repairs/Adjustments
4-24 06/06 WorkCentre 3119

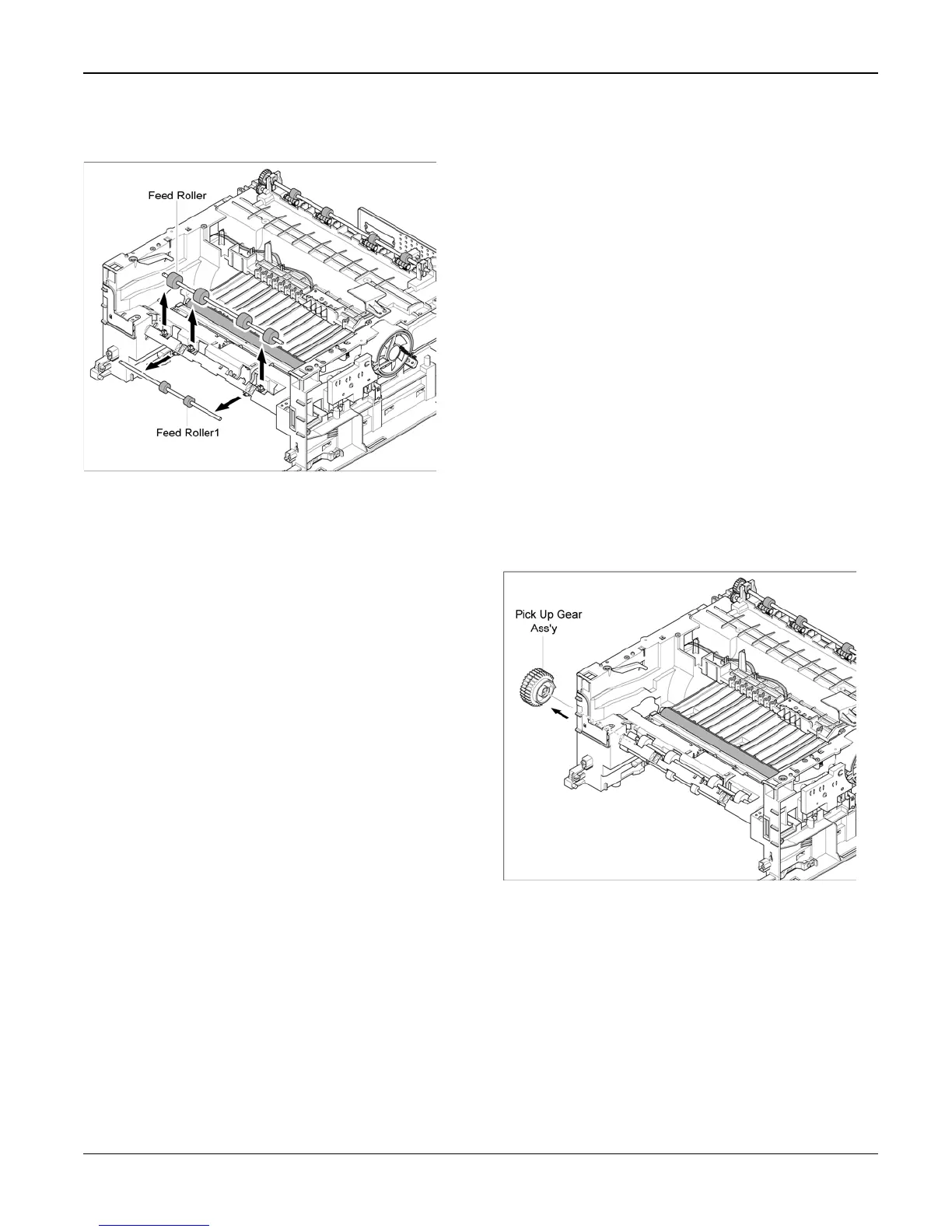

7. Remove the Feed Roller and Feed Roller
1, Figure 6.
Figure 6
REP 18 Pickup Roller, Solenoid
HB (Pickup) and Solenoid HB
(Bypass)
Parts list on PL 3
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the LSU. (Refer to REP 10)
Remove the Drive Assembly. (Refer to
REP 20)
Remove the Feed Bracket and Gear.
(Refer to REP 17, steps 4-6)
2. Remove the Pickup Gear Assembly, Fig-
ure 1.
Figure 1
To Next Page
