Repairs/Adjustments
4-22 06/06 WorkCentre 3119

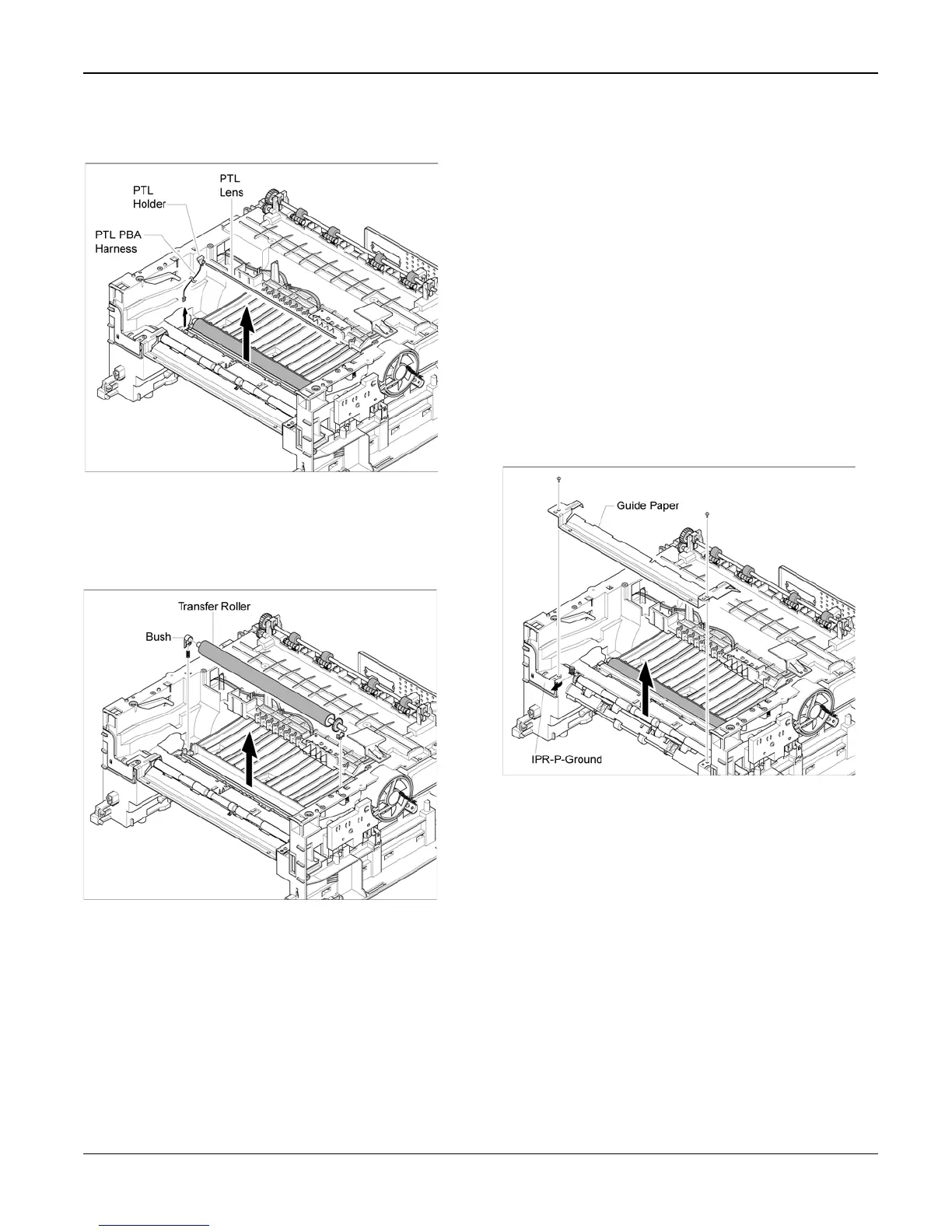

Note: Take note of the orientation of the PTL
Lens to ensure correct replacement.
Figure 2
4. Unlatch the bush, then remove the bush.
Remove the Transfer Roller in the direc-
tion of the arrow, Figure 3.
Figure 3
REP 17 Feed Roller
Parts list on PL 4
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Middle Cover (Refer to REP
8)
2. Remove 2 screws. Adjust the IPR-P-
Ground slightly allowing the Guide Paper
to be removed, Figure 1.
Figure 1
To Next Page
