Xerox WorkCentre 5222 User Manual

February, 2008
4-229
WorkCentre 5225, 5230
ADJ 11.1.1
Repairs and Adjustments
Launch Version
ADJ 11.1.1 IIT Lead Edge/Side Edge Registration
Purpose
To set the home position for the IIT Lead Edge (Slow Scan) direction/IIT Side Edge (Fast Scan)
direction.
NOTE: The IOT Lead Edge/Side Edge Registration must be adjusted.
Check
1. Register Side A of Test Chart 82P521 (A3) or 82P524 (Legal) on the Platen. Make 5
100% copies of the Test Chart on A3SEF or Legal SEF paper.
2. Measure the Lead Edge and Side Edge of the third copy (Figure 1).
Lead Edge: Part A of the pattern
Side Edge: Part B of the pattern

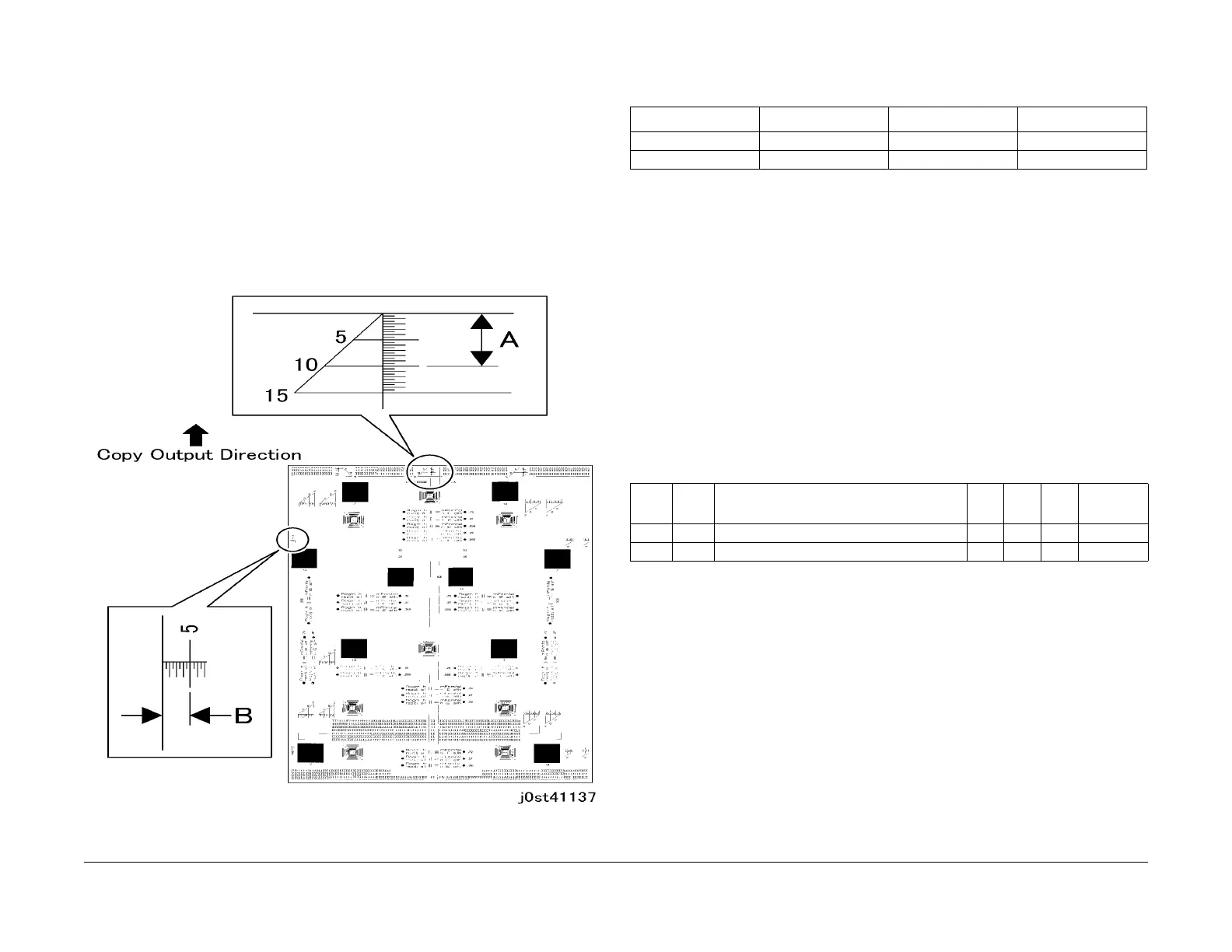

Figure 1 IIT Registration (j0st41137)
3. Check that the measured values of the Lead Edge (A) and Side Edge (B) fall within the
specifications of the supporting mode.
Adjustment
1. Access Diagnostic Routines.
a. Enter UI Diagnostics (UI Diagnostic Mode).
2. Select NVM Read/Write.
3. Adjust the measured values of the Lead Edge (A) and Side Edge (B) using the following
NVM so that the measured values fall within the specifications.
Side Edge
If the measured value is short: Set a smaller value.
If the measured value is long: Set a larger value.
Lead Edge
If the measured value is short: Set a larger value.
If the measured value is long: Set a smaller value.
NOTE: After performing the IIT side Edge Registration Adjustment, perform the DADF
side Edge Registration Adjustment. (ADJ 15.1.1)
4. After adjustment, place Side A of Test Chart 82P521 (A3) or 82P524 (Legal) on the Platen
so that there is no gap between the chart and the Registration Guide at the rear of the
Platen. Make another 100% copy on A3SEF or Legal SEF paper.
5. Repeat the procedure until the measured values of the Lead Edge (A) and Side Edge (B)
fall within the specifications.
Table 1 Specification
Item Simplex Duplex MPT
Lead Edge (A) 10 ± 1.6mm 10 ± 2.0mm 10 ± 2.2mm
Side Edge (B) 5 ± 2.1mm 5 ± 2.5mm 5 ± 3.0mm
Table 2 NVM List
Chain Link Name Min.
Initia
l
Max Increment
715 050 Platen SS Registration Adjustment 16 100 184 0.036mm
715 053 Platen FS Registration Adjustment 0 120 240 0.085mm

Xerox WorkCentre 5222 Specifications

General

AC input voltage	100 - 127 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	3 W
Power consumption (standby)	95 W
Power consumption (average operating)	605 W
Depth (imperial)	25.7 \
Finishing option	Yes
Width (imperial)	25.2 \
Height (imperial)	43.1 \
Scan file formats	TIFF, PDF, XPS
Minimum storage drive space	40 GB
Maximum media size (WxH) (imperial)	11.7 x 17 \
Minimum media size (WxH) (imperial)	5.5 x 8.3 \
Processor frequency	333 MHz
Card reader integrated	No
Sound power level (standby)	22 dB
Paper input type	Paper tray
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Total number of input trays	2
Maximum number of input trays	4
Auto document feeder (ADF) input capacity	75 sheets
Print technology	Laser
Duplex printing mode	Auto
Print speed (ISO/IEC 24734) mono	54.8 ipm
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A3)	13 ppm
Print speed (black, normal quality, A4/US Letter)	22 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4, 8
Optical scanning resolution	- DPI
PCL fonts	81
Printer fonts	PCL, PostScript
Printing colors	Black
Stapling capacity	50 sheets
Maximum duty cycle	70000 pages per month
Recommended duty cycle	0 - 12000 pages per month
Number of PostScript fonts	136
Page description languages	PCL 5e, PCL 6
Cabling technology	10/100Base-T(X)
Security algorithms	HTTPS, SNMP
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv6)	EtherTalk, FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP
Paper tray media types	Bond paper, Heavy paper, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 105 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5
Multi-purpose tray media types	Bond paper, Envelopes, Hole punched paper, Labels, Letterhead, Plain paper, Recycled paper, Transparencies
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Paper tray media weight (imperial)	16 - 28 lbs
Auto Document Feeder (ADF) media weight	38 - 128 g/m²
Multi-Purpose Tray media weight (imperial)	16 - 80 lbs
Auto Document Feeder (ADF) media weight (imperial)	16 - 32 lbs
Display	LCD
Product color	White
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported	SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3
Other operating systems supported	Solaris 10, Solaris 8, Solaris 9
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Certification	FCC, 89/336/EEC, UL, CB, 73/23/EEC, GOST, NOM, ISO 15408
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %

Weight and Dimensions

Depth	654 mm
Width	640 mm
Height	1114 mm
