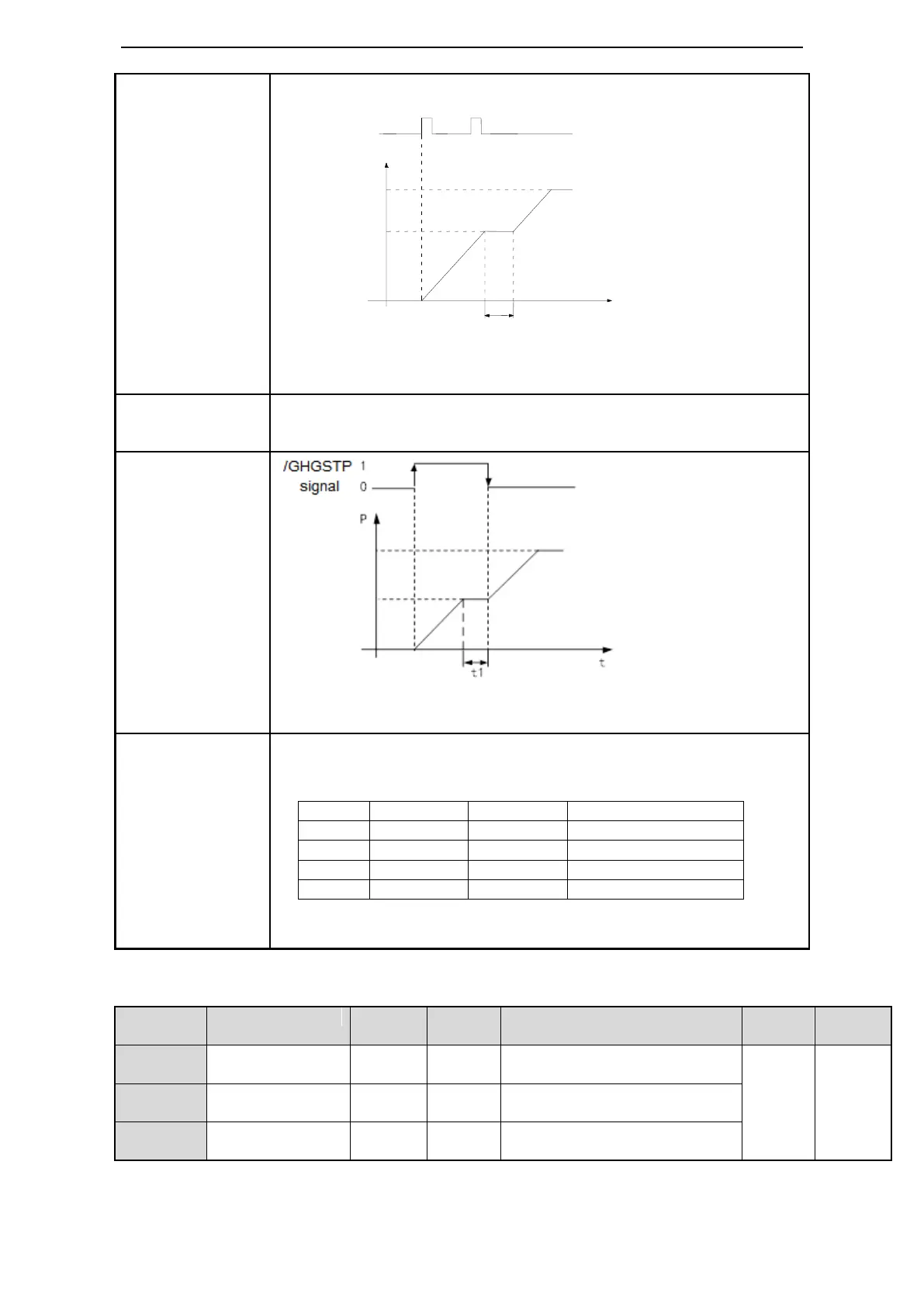

Start at the rising
edge of the signal,
sequential run all,
not recycling
Suppose there are 2 segments. t1=P4-11
/CHGSTP signal is ineffective when one cycle has not been finished, such as
the second /CHNGSTP signal in the diagram.
3: set segment no.
through
communication
Servo is ON, set parameter P2-09=0, then set the running segment.
4: /CHSTP double
edge triggering
/CHSTP rising edge triggers the first segment, the fallingedge triggers the
second segment.
5: /PREFA(P5-57)
/PREFB(P5-58)
/PREFC(P5-59)
Choose the segment,
the range is segment
1~3
/PREFC
/PREFB
/PREFA
Segment
0
0
0
-
0
0
1
1 (segment 1 position)
0
1
0
2 (segment 2 position)
0
1
1
3 (segment 3 position)
The following input signal can switch the segment 1 to 3:
Parameter
Signal name
Default
setting
Suitable
mode
Setting range
Modify
effective
P5-57
/PREFA internal
position segment 1
n.0000
5
Range 0000-0014, distribute to
input terminal through P5-57
Any
At once
P5-58
/PREFB internal
position segment 2
n.0000
5
Range 0000-0014, distribute to
input terminal through P5-58
P5-59
/PREFC internal
position segment 3
n.0000
5
Range 0000-0014, distribute to
input terminal through P5-59
t1
P
t
/CHGSTP
Signal
1
0
