100 Chapter 10—Bus Outs
03D—Owner’s Manual
Bus Out Delay
Analog bus out signals can be delayed individually. This can be used to compensate for
delays in multi-speaker sound reinforcement systems.
1. Use the [DELAY/∅] button to locate the CH Delay page.
2. Use the [MIXING LAYER] button to select 17–24/MASTER.
3. Use the [SEL] buttons to select a bus out.

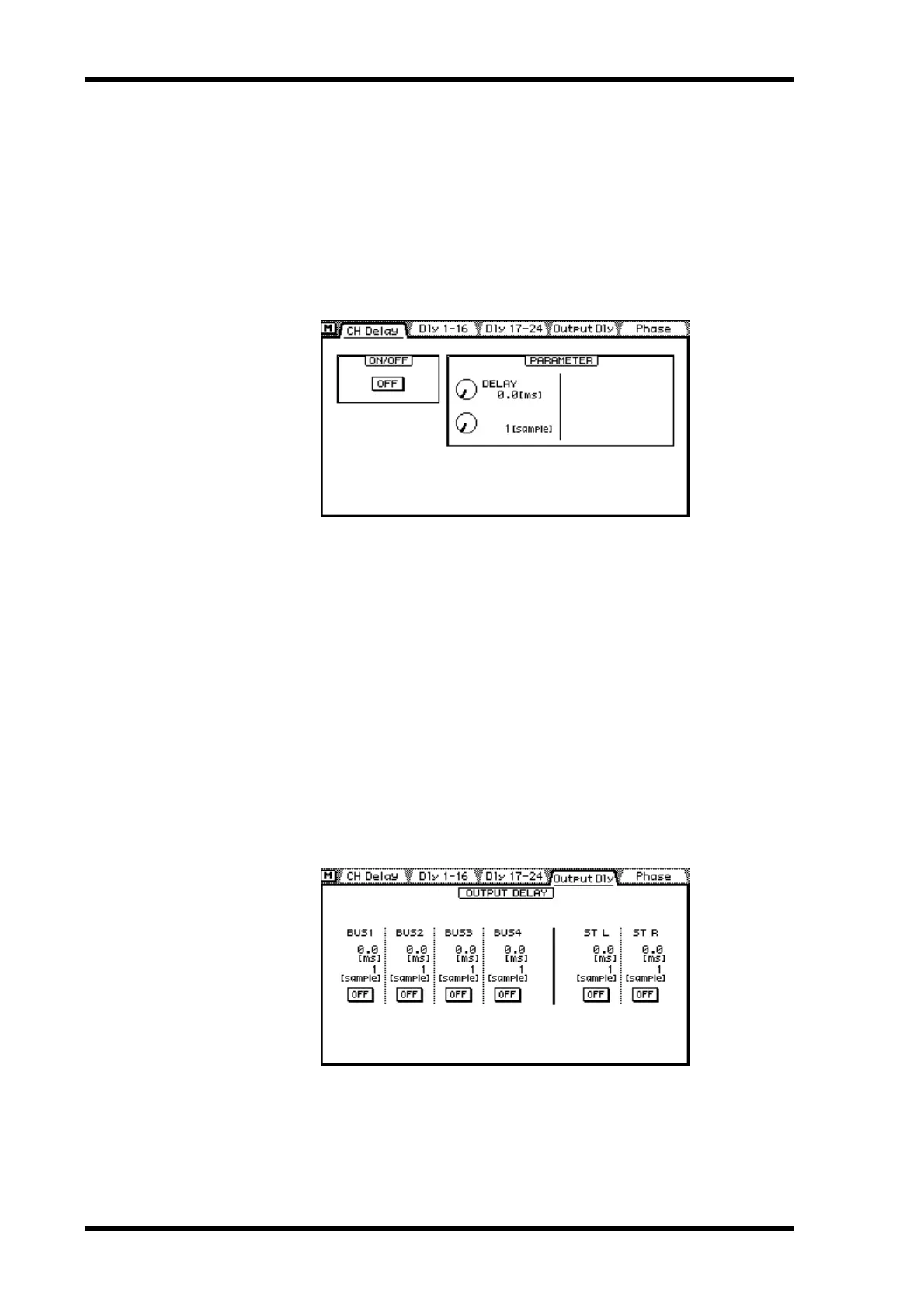

The CH Delay page shown below appears.
4. Use the cursor buttons to select the delay parameters and the [ENTER]
button and PARAMETER wheel to set them.
If you are using a mouse, simply click the switches and drag the rotary controls.
ON/OFF—This switch is used to turn on and off the delay. When the cursor is located
within the PARAMETER window, the [ENTER] button can be used to turn on and off
the delay without having to select the ON/OFF switch.
PARAMETER—These controls are used to set the delay time. Delay can be specified in
either seconds or samples. The maximum delay is 2,000 samples. The actual delay in
seconds depends on the sampling rate: 45.4 milliseconds at a sampling rate of 44.1 kHz,
and 41.7 milliseconds at a sampling rate of 48 kHz.
Viewing Bus Out Delay Settings
Bus out delay settings can be viewed on the following page.
1. Use the [DELAY/∅] button to locate this page.
This page shows the delay time set for each bus out. The delay time cannot be changed
on this pages. The delays can, however, be turned on and off.
2. Use the [SEL] buttons to select bus outs and the [ENTER] button to turn
the delays on and off.
If you are using a mouse, simply click the switches. The switches can also be selected
using the cursor buttons.
