Digital Stereo Out 219
03D—Owner’s Manual
Digital Stereo Out
The 03D features both AES/EBU and COAX-
IAL-type digital stereo outputs. They output the
same digital audio signal but in different formats.
The XLR-3-32-type connector outputs AES/EBU
format digital audio, while the COAXIAL connec-
tor outputs Consumer format digital audio.
In addition to the stereo output signal, the Stereo
bus signals can be selected as the source for these outputs.

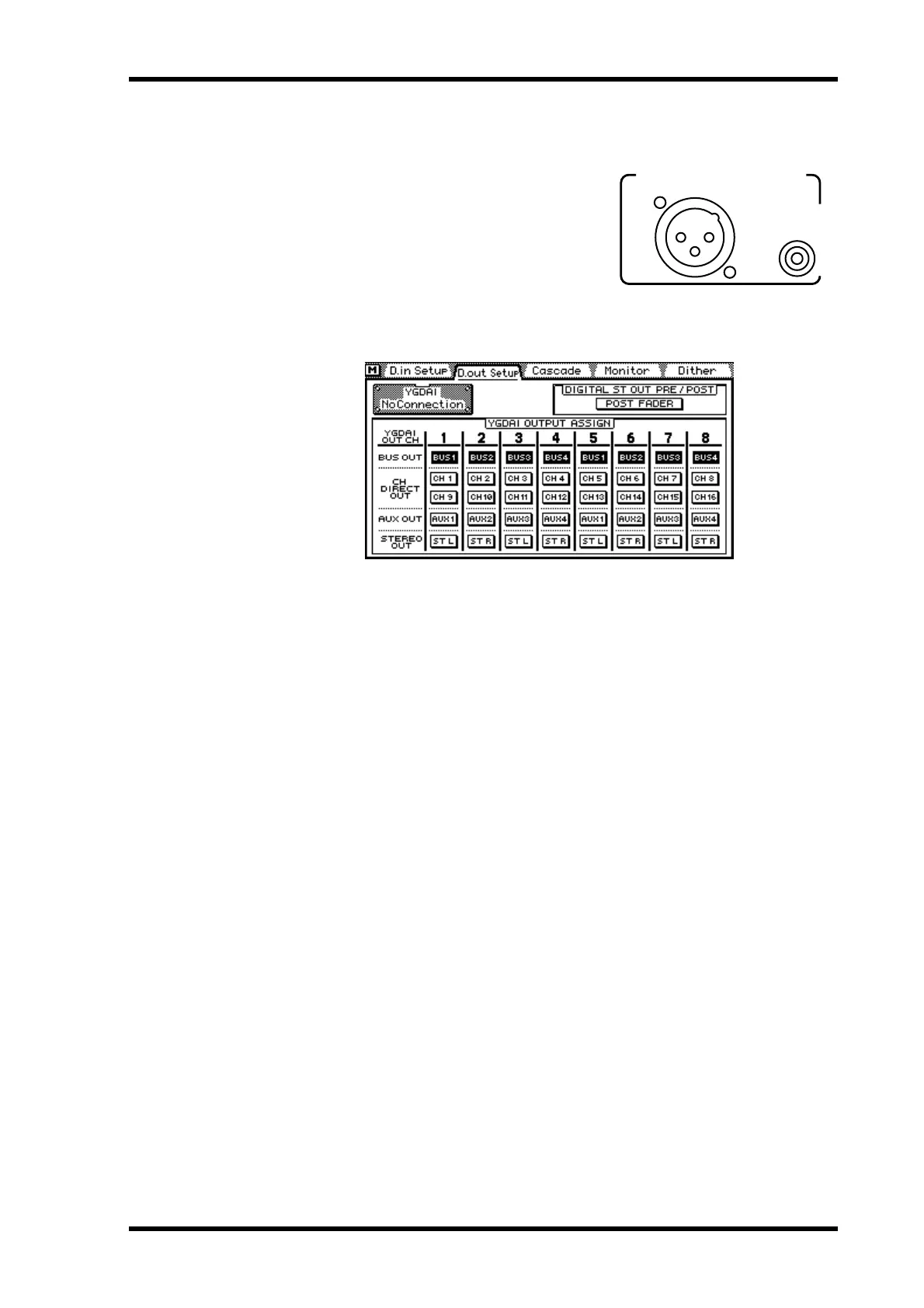

1. Use the [DIO] button to locate the D.out Setup page shown below.
2. Use the cursor buttons to select the DIGITAL ST OUT PRE/POST switch,
and the [ENTER] button to select POST FADER or PRE FADER.
POST FADER means that the signal is sourced after the stereo output fader. PRE
FADER means that the signal is sourced directly from the Stereo bus.
If you are using a mouse, simply click the DIGITAL ST OUT PRE/POST switch.
The AES/EBU connection outputs digital audio data with a wordlength of 24 bits. The
Coaxial connection outputs digital audio data with a wordlength of 20 bits.
3
12
DIGITAL STEREO OUT
COAXIAL
AES/EBU
