90 Chapter 9—Aux Sends
03D—Owner’s Manual
About Aux Sends
The 03D features four aux sends. Input channel, stereo input channel, and effects
return signals can be fed to the four aux sends. Each aux send features four-band para-
metric EQ and a dynamics processor. Aux sends can be used individually or in stereo
pairs. Aux send signals are output via analog phone jacks. They can also be output via
the YGDAI digital outputs.
The 03D does not have dedicated aux return inputs. Use the input channels or stereo
input channel to return aux signals.
The onboard effects are explained in their own chapter. See Onboard Effects on page
117 for more information.
Analog Aux Send Outputs
Aux send signals are converted to analog using
18-bit D/A converters, and then output via bal-
anced 1/4-inch phone jacks with a +4 dB nominal
output level.
Aux Sends & the YGDAI Interface
In addition to the analog aux send outputs, aux send signals can be output via the
YGDAI digital outputs. See YGDAI Cards on page 223 for more information.
Monitoring Aux Sends
See Solo, Monitors & Meters on page 71 for more information.
Metering Aux Sends
Aux send signal levels can be metered on the Meter pages. See Metering on page 79 for
more information.

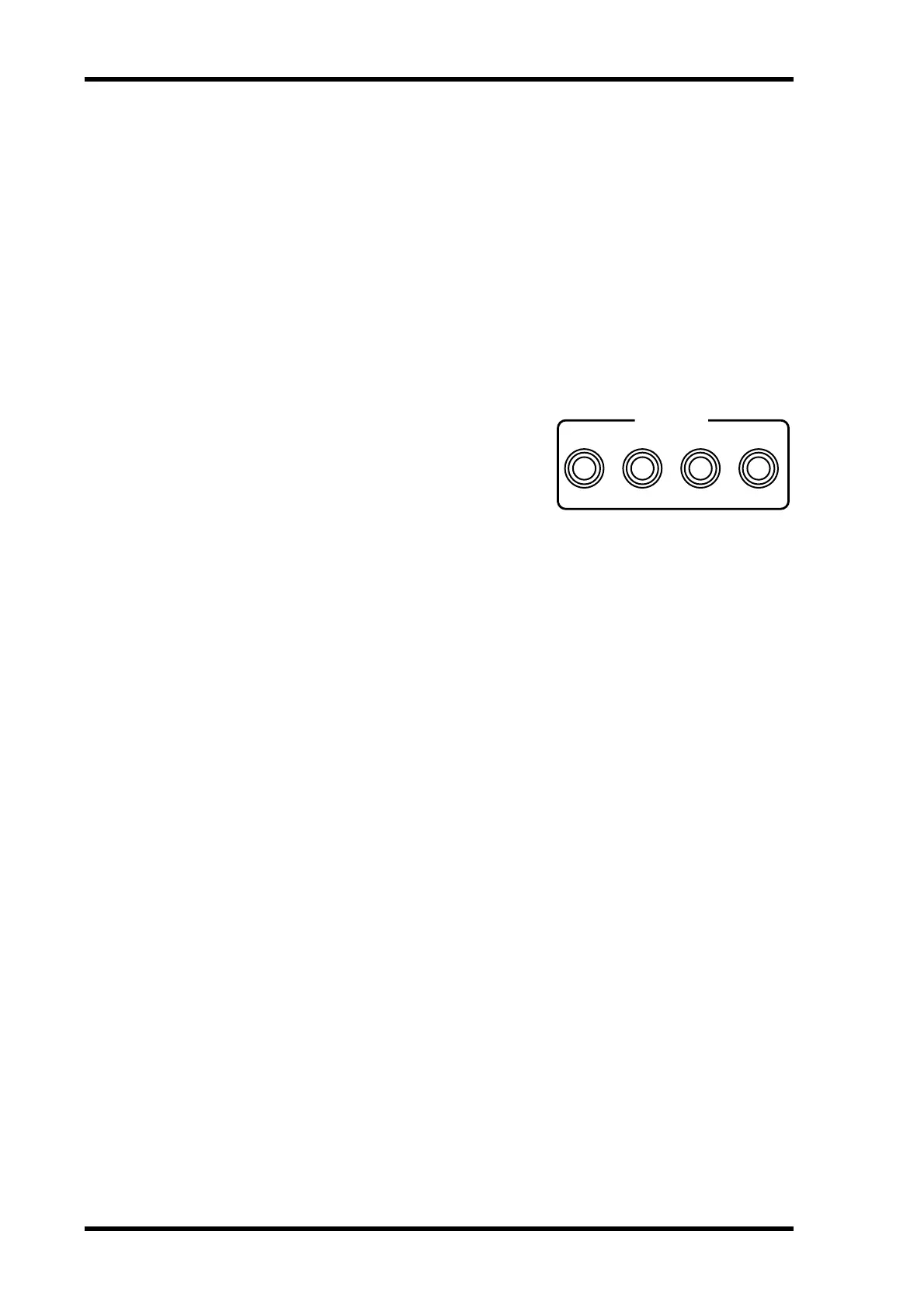

AUX OUT
