Using Surround Pan
When a surround pan mode is selected (see Selecting a Pan Mode on page 58), the Surr.
1–16 and Surr. 17–24 surround pan pages shown below can be accessed.

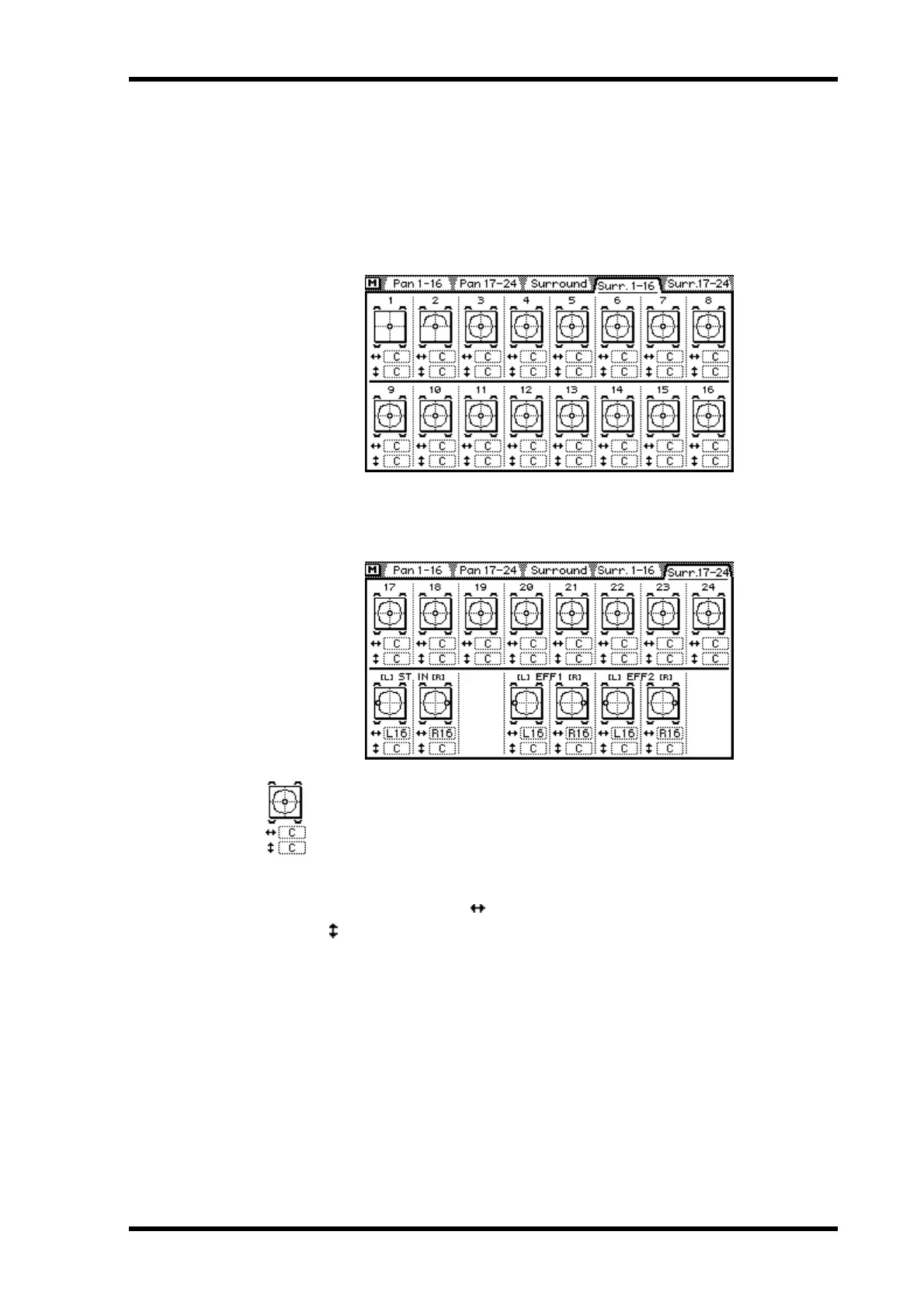

1. Use the [PAN/ROUTING] button to locate the Surr. 1–16 and Surr. 17–24
pages shown below.
The Surr. 1–16 page contains surround pan controls for input channels 1 to 16.
The Surr. 17–24 page contains surround pan controls for input channels 17 to 24, the
stereo input channel, and the effects returns. The left and right channels of the stereo
input channel and effects returns can be panned independently.
The surround pan position for each channel is displayed on a two-dimensional
pan graph. The pan position is indicated by a small circle. Small speaker icons
above and below the pan graph indicate the selected surround pan mode. In
this example, two speakers at the front and two at the rear indicate that 2+2 sur-
round mode is selected. The larger circle indicates that the circle trajectory is selected.
Trajectory settings are made on the surround pan trajectory window. Below the pan
graph are two parameters. The (left/right) parameter indicates the left to right posi-
tion. The (front/rear) parameter indicates the front to rear position. These parame-
ters can also be used to adjust the positions.
2. Use the [SEL] buttons to select a channel, and then press the [ENTER] but-
ton.
If you are using a mouse, simply click a pan graph.
