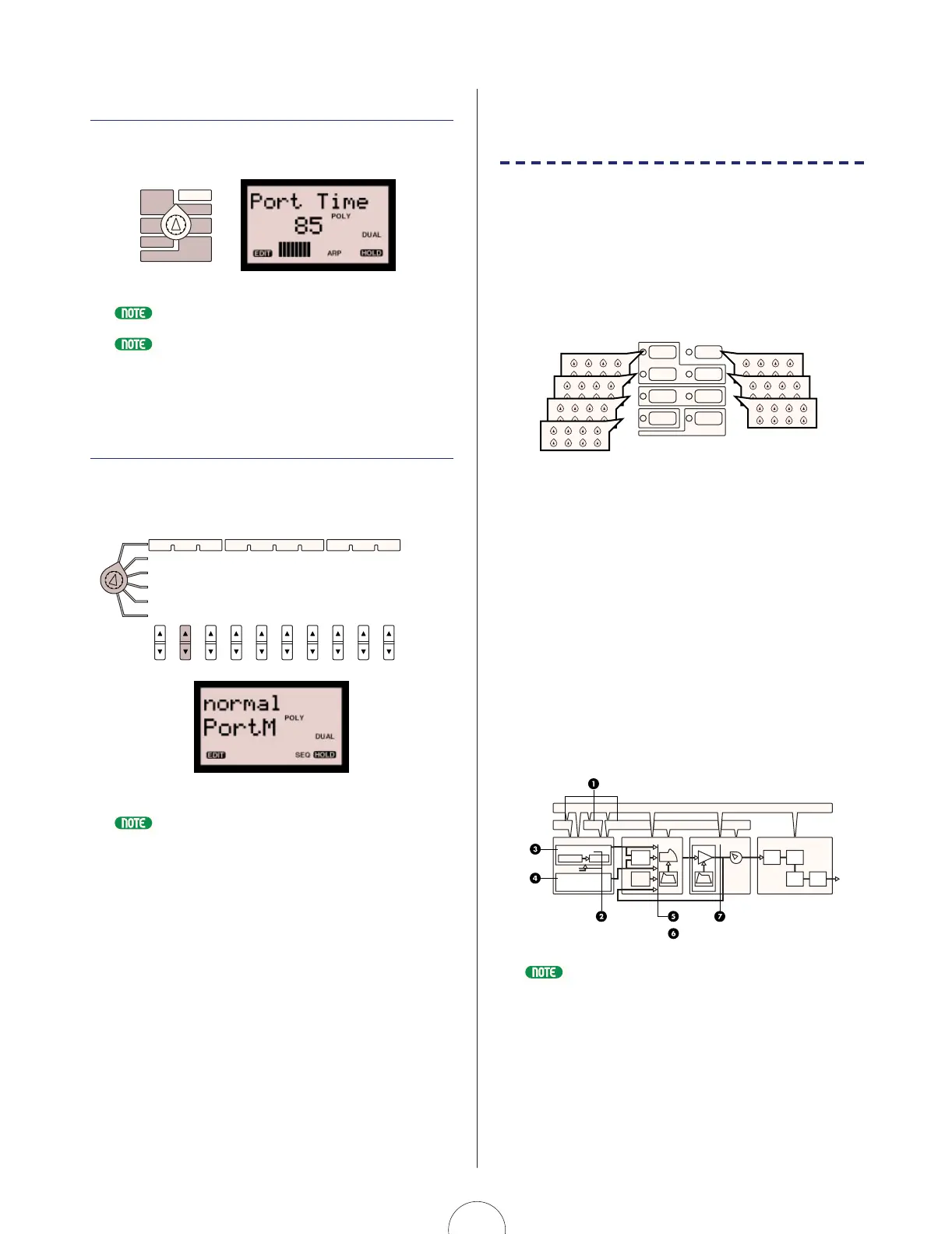

Setting Portamento Time
You can determine the Portamento time by pressing
[PEG/LFO] and turning CONTROL knob 4.
When the [PORTAMENTO] switch is turned off, “– – –” will flash in the LCD.
For more information, see page 56.
Selecting Portamento
Modes
There are various Portamento modes available depending
on Poly mode setting. These are accessed by the VOICE
SCENE SETUP menu.
For more information, see page 73.
Mode
Poly
Por t
VOICE
SCENE SETUPLFO Rst
Ctrl Matrix
Set No
Param Source
Depth
Layer
Pan
Separate
Unison
Detune
ASSIGN 4
Sync Pitch
Src
Edge
Port Time
Edge
Release
Release
Noise
Level
Selecting
Parameter Groups
The KNOB PARAMETER GROUP switches
determine which group of tone generator
parameters you can edit by turning the
CONTROL knobs. You can change the voice
drastically by editing the various parameters.
Simply press a switch to access a group of
parameters. The selected switch will be indicated
by a lit LED to the left of it.
The name of each parameter in the group is printed on the
panel next to the knob by which it is edited, color coded
and arranged in relation to each KNOB PARAMETER
GROUP switch. A description of each parameter group,
along with available parameters and settings available
within each group, is provided in the REFERENCE section.
For details, see as follows:
1PEG/LFO — page 54
2SYNC/FM — page 58
3VCO1 — page 61
4VCO2 — page 63
5VCF — page 64
6MIX/VCF — page 66
7VCA — page 68
(ASSIGN — page 70)
For details about assigning parameters to CONTROL knobs, see page 95. For
information about the AN1x’s tone generator, see page 10.
