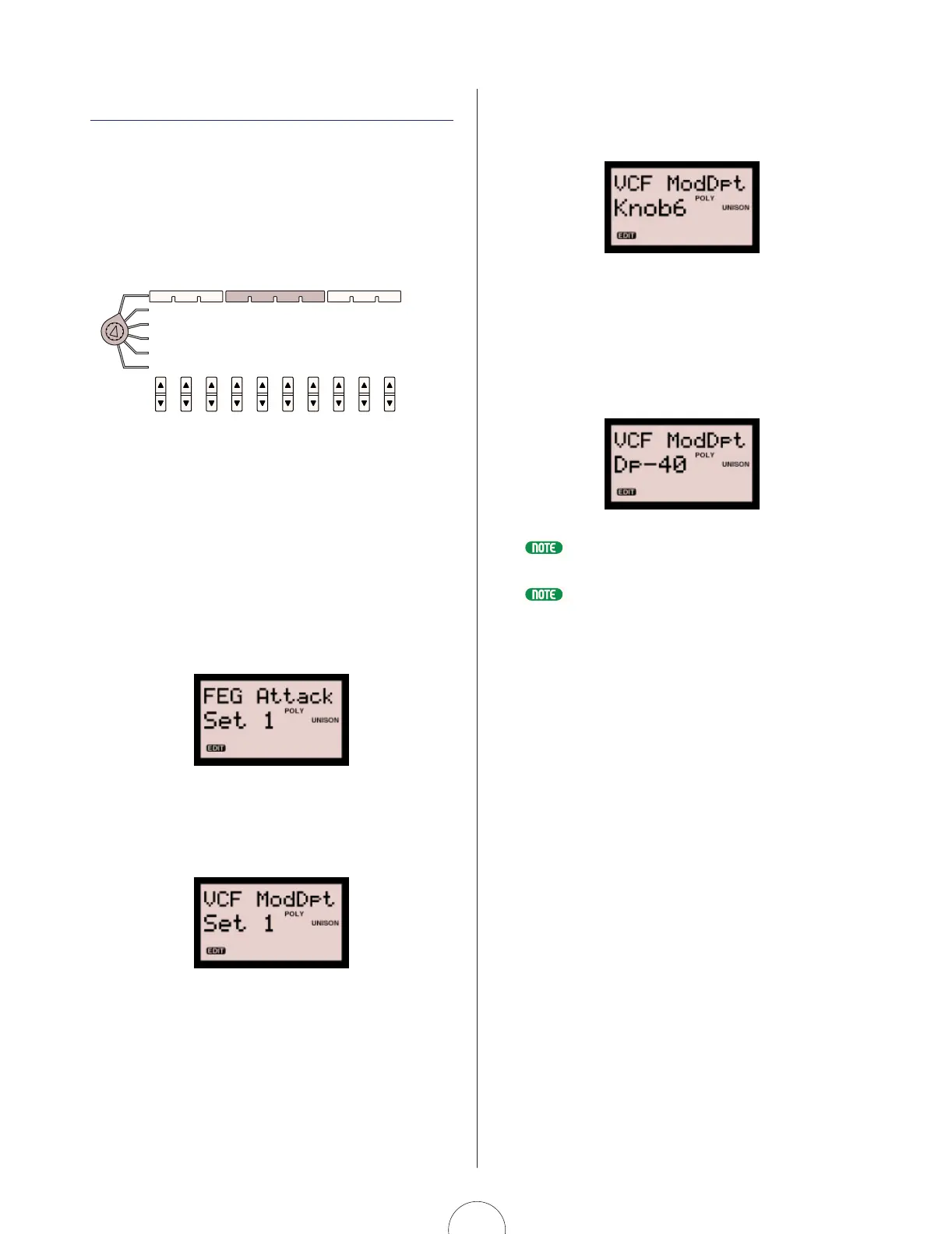

Control Matrix
Control Matrix parameters apply to the internal tone
generator only. It determines how MIDI Control Change
messages generated by the on-board controllers (eight
CONTROL knobs, [MODULATION] wheel, [FOOT
CONTROLLER], [RIBBON] controller, etc.), as well as
messages generated by external devices received at the
MIDI [IN] terminal, are routed to the AN1x’s tone
generator, as well as the depth range of control.
The Control Matrix is a configuration of 16 Sets of
control setup, plus Pitch Bend parameters and two sets
of Common parameters. The 16 parameter Sets and
Pitch Bend parameters apply to each Scene separately,
and the Common parameters apply to the voice.
Following is a brief description of each.
Set No: For selecting Pitch Bend Pitch Up and
Down (each Scene), the number of the Set (1-16;
for each Scene), and Common (1 and 2; both
Scenes) parameter assignments.
Parameter: Determines which parameter is
assigned to the Scene Set Number (1-16) or Pitch
Bend, or Common Set (1-2).
Mode
Poly
Por t
VOICE
SCENE SETUPLFO Rst
Ctrl Matrix
Set No
Param Source
Depth
Layer
Pan
Separate
Unison
Detune
Source: Determines which controller (by Control
Change number) is assigned to control the
corresponding Parameter.
Depth: Determines the control range of the Source
controller. When set to "Dirct" (0 setting), the Direct
Control function is activated, and you can directly
edit the parameter assigned to the controller within
its original range. For more information, see page
75.
For more information about each parameter, available settings, and how to assign
parameters and controllers using the Control Matrix, see page 73.
For information about MIDI and MIDI Control Change messages, see page 109.
