28

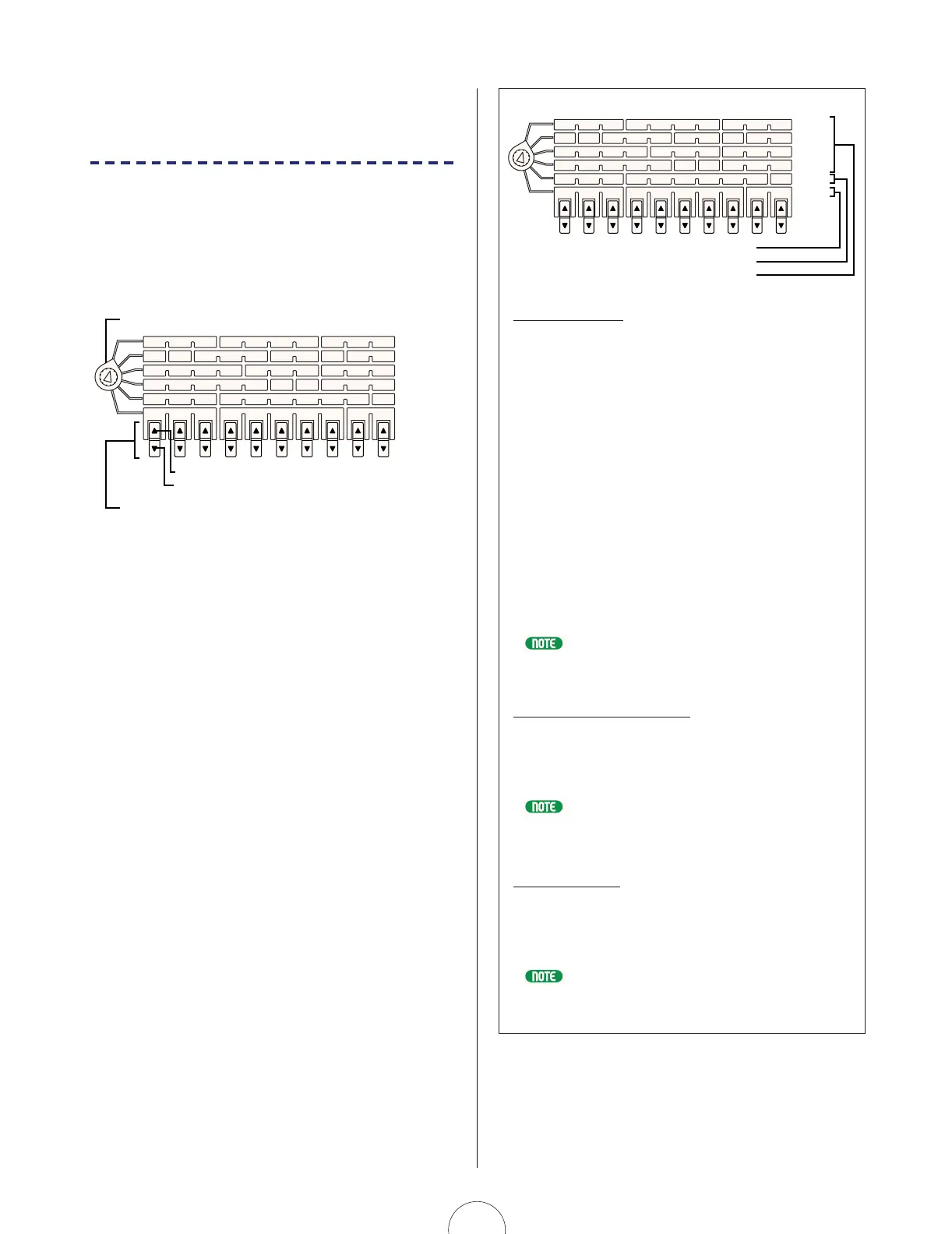

Using The Panel
Edit Matrix
The AN1x’s panel matrix of Edit menus gives
you quick and easy access to hundreds of
parameter settings. All you have to do is set the
[EDIT ROTARY] switch to one of the six menus
and press the parameter value [UP/DOWN]
switch located beneath the name of the
parameter you want to edit.
Press the [UP/DOWN] switch once to display the name of
the parameter and current value setting in the LCD. Press
the upper or lower area of the switch repeatedly to
increment or decrement through the settings, or hold the
upper or lower area of the switch to scroll through the
settings.
Mode
Poly
Por t
Tempo Split Pnt
Track Common
Trigger
LoopType
Common
Arp /SEQ
Type/No
Knob
Event
1-8/9-16
System
Mstr Tune
Kbd Trans
VOICE
SCENE SETUP
VOICE
COMMON
VOICE
FREE EG
VOICE
ARPEGGIO/SEQ
SEQ
EDIT/SETUP
UTILITY
SETUP
LFO Rst
Ctrl Matrix
Set No
Vari EF/EQ
Param Data
Length
Key Track
KbdMode Hold
Step Hold
Pattern
Bank
Kbd Vel
MIDI
Tx Ch
Param Source
Vari EF
Dry:Wet
Dly/Rev EF
Param
Param
Track
Track No
SceneSw
MIDI
Ptn Tx Ch
No
Base Unit
Rx Ch
DeviceNo Local
BulkDump
Length LoopType
Arpeggio
Subdivide
Play EF
Swing
Scene Sw
Track Job
Rec
Data
Depth
EF
Bypass
Layer
Pan
Separate
Unison
Detune
Name
Cursor Char
Copy Undo
Velocity
GateTime
Ctrl No
SEQ
Store
Ctrl
Device
Ctrl No
Press this area to decrement settings (hold to scroll)
Select a menu (1 - 6)
Press once to display information in LCD
Press this area to increment settings (hold to scroll)
1 Voice Menus
The four Voice menus are primarily dedicated to parameters
which affect the tone generator.
VOICE SCENE SETUP Includes Scene Mode and Control
Matrix parameters plus Layer-related parameters for the
voice.
VOICE COMMON Includes Tempo, Split Point, Effect and
voice naming parameters which are common to both Scenes,
and Variation Effect Dry:Wet balance parameter which can
be set for each Scene.
VOICE FREE EG Includes Trigger and Length setting, Track
and Parameter select, plus recording and other parameters
related to the Free EG function.
VOICE ARPEGGIO/SEQ Includes common and specific
parameters related to the Arpeggiator and Step Sequencer.
For a description of each parameter and available settings, see the REFERENCE
section, page 72. For information about the Arpeggiator, see page 33.
2 Step Sequencer Menu
The SEQ EDIT/SETUP menu includes Knob event and
sequence editing-related parameters, as well as Pattern Bank
and Number select, and other parameters related to the Step
Sequencer.
For a description of each parameter and available settings, see the REFERENCE
section, page 89. For information about the Step Sequencer, see page 37.
3 Utility Menu
The UTILITY SETUP menu includes “global” parameters,
including System tuning and keyboard transpose and velocity
parameters, MIDI channel transmit, receive and other
settings, and Control function assignment-related parameters.
For a description of each parameter and available settings, see the REFERENCE
section, page 92. For more information about the Control function, see page
50.
Mode
Poly
Por t
Tempo Split Pnt
Track Common
Trigger
LoopType
Common
Arp /SEQ
Type/No
Knob
Event
1-8/9-16
System
Mstr Tune
Kbd Trans
VOICE
SCENE SETUP
VOICE
COMMON
VOICE
FREE EG
VOICE
ARPEGGIO/SEQ
SEQ
EDIT /SETUP
UTILITY
SETUP
LFO Rst
Ctrl Matrix
Set No
Vari EF/EQ
Param Data
Length
Key Track
KbdMode Hold
Step Hold
Pattern
Bank
Kbd Vel
MIDI
Tx Ch
Param Source
Vari EF
Dry:Wet
Dly/Rev EF
Param
Param
Track
Track No
SceneSw
MIDI
Ptn Tx Ch
No
Base Unit
Rx Ch
DeviceNo Local
BulkDump
Length LoopType
Arpeggio
Subdivide
Play EF
Swing
Scene Sw
Track Job
Rec
Data
Depth
EF
Bypass
Layer
Pan
Separate
Unison
Detune
Name
Cursor Char
Copy Undo
Velocity
GateTime
Ctrl No
SEQ
Store
Ctrl
Device
Ctrl No
3 Utility Menu
2 Step Sequencer Menu
1 Voice Menus
