Charge Only Cradle
This section describes how to use a Charge Only Cradle with the ET5X. The Charge Only Cradle ships with an
insert that must be installed when inserting an ET5X without the protective boot installed.
The Charge Only Cradle:
• Provides power for operating the ET5X.
• Charges the ET5X’s battery and optional Power Pack installed in an Expansion Back .

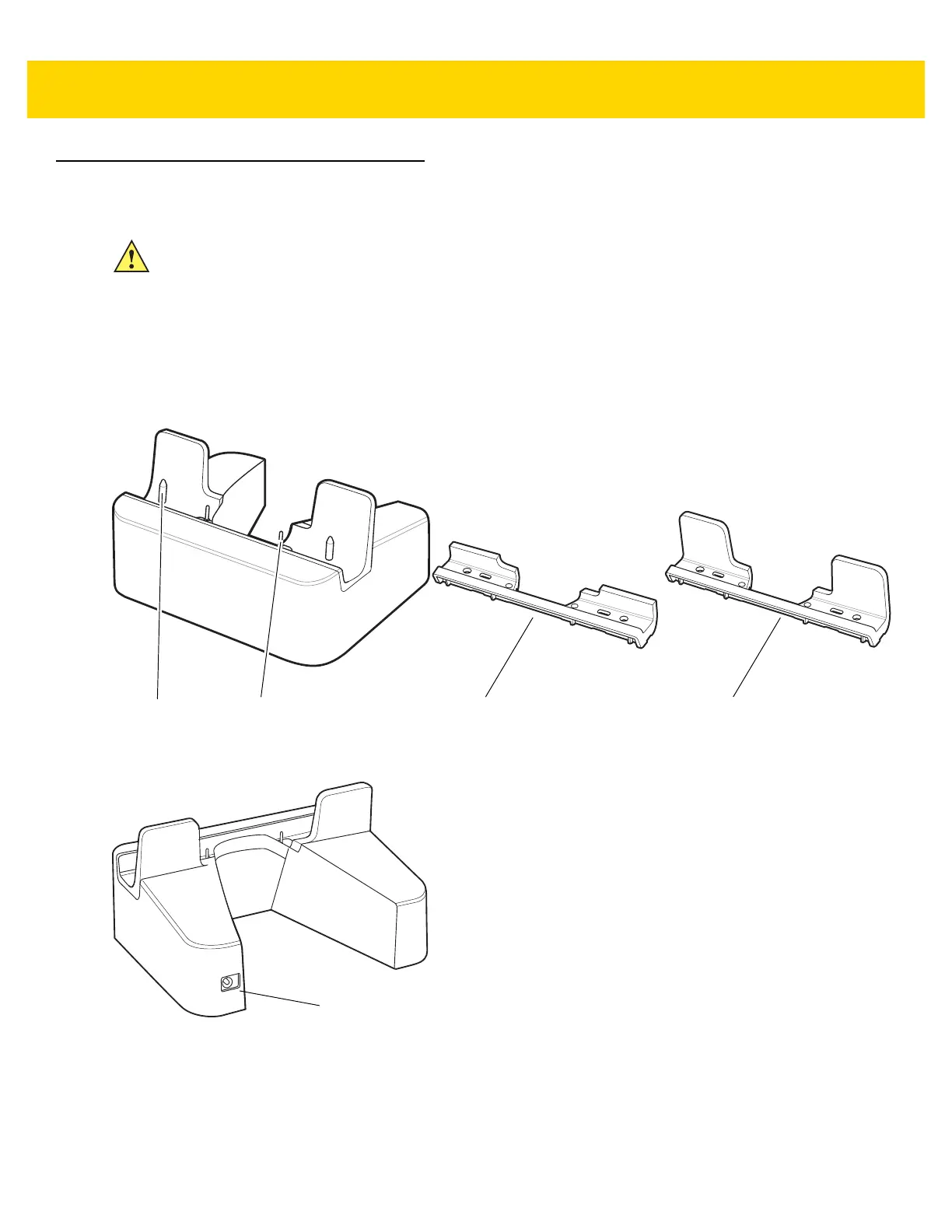

Figure 5-1 Charge Only Cradle - Front View
Figure 5-2 Charge Only Cradle - Rear View
Installing the Insert
Install the tall insert when using an ET5X without a Rugged Frame or Expansion Back. Install the small insert when using an
ET5X with an Expansion Back and without a Rugged Frame.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 6-1.
Charging PinsGuide Pins Small Insert Tall Insert
Power Input
