SCANNING 2 - 5
Hands-Free Scanning
Unless hands-free mode is disabled by scanning Hands-Free (Presentation) Trigger Mode on page 7-10, the
linear imager is in hands-free (presentation) mode when it sits in the gooseneck stand. In this mode the linear
imager operates in continuous (constant-on) mode, where it automatically decodes a bar code presented in the
field of view. The scanner LED is on, solid green.
To sc an :
1. Ensure all connections are secure (see appropriate host chapter).
2. Present the bar code in the linear imager field of view.

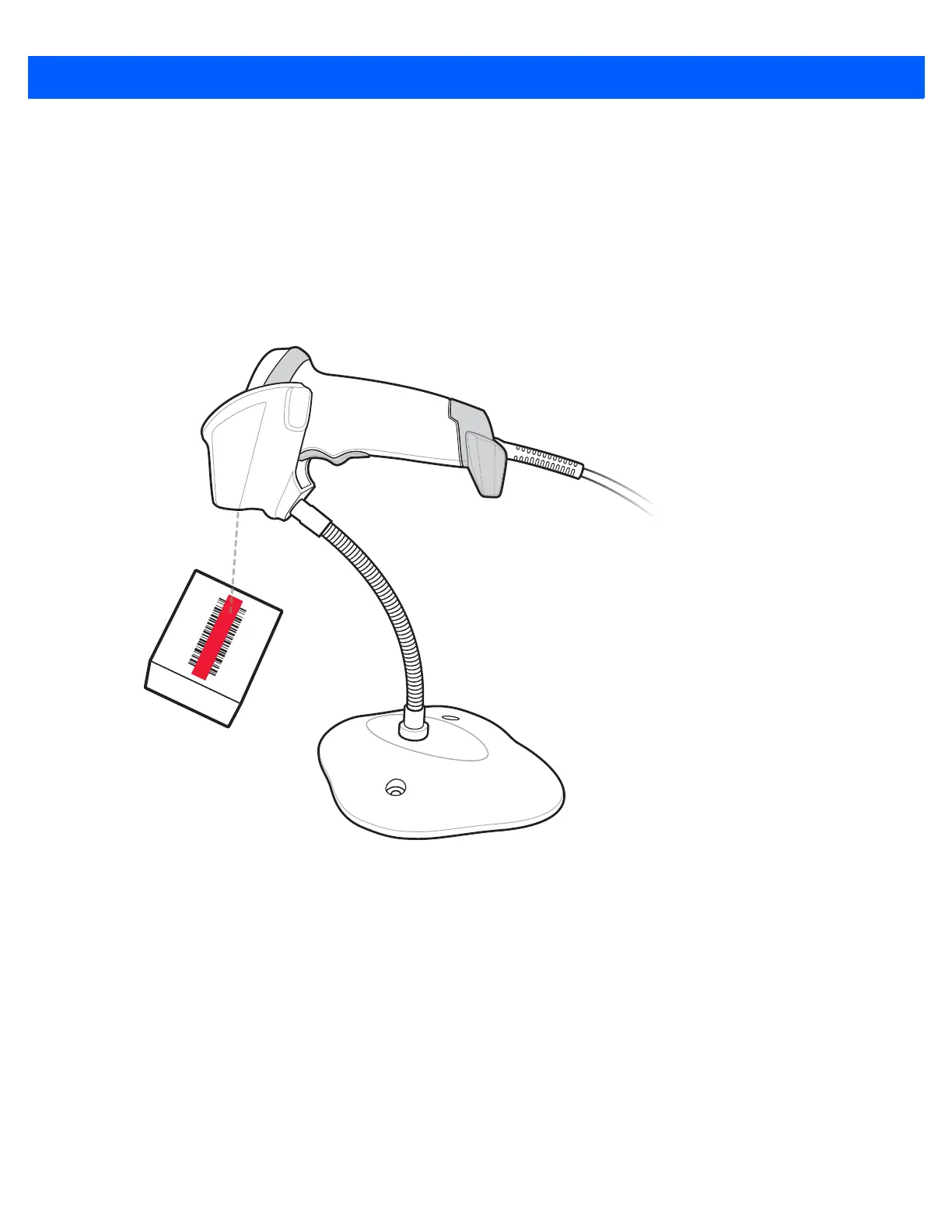

Figure 2-2 Presentation Scanning
3. Upon successful decode, the linear imager beeps and the green LED momentarily turns off. (For more
information about beeper and LED definitions, see Table 2-1.)

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
