Zebra LI2208 User Manual

3 - 2 LI2208 PRODUCT REFERENCE GUIDE
Connecting a USB Interface

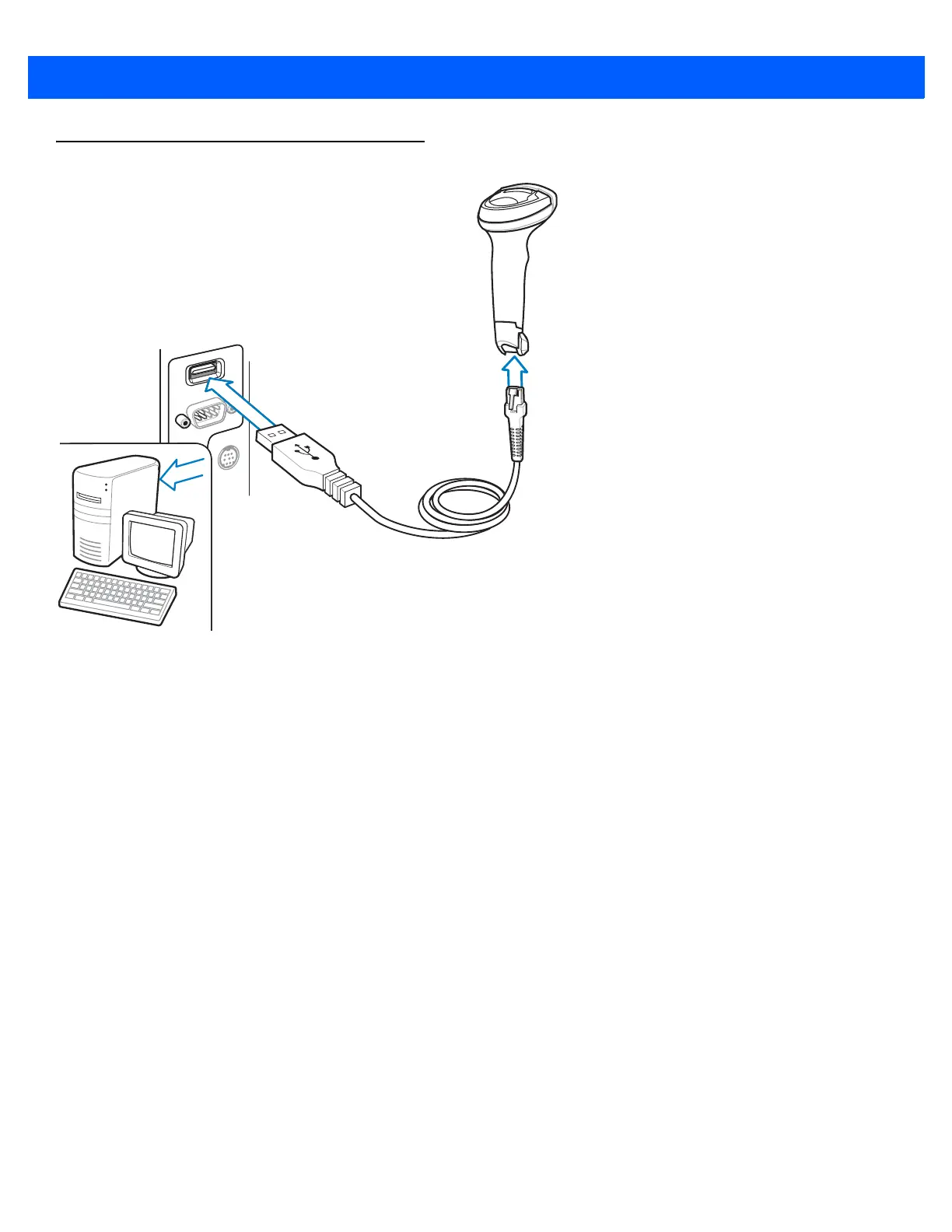

Figure 3-1 USB Connection
The linear imager connects with USB capable hosts including:
• Desktop PCs and Notebooks
• Apple™ iMac, G4, iBooks (North America only), Macbook, Macbook Pro, Macbook Air (North American
keyboard only)
• IBM SurePOS terminals
• Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the linear imager through USB:
• Windows 98, 2000, ME, XP, Vista, Windows 7 - 32-bit/64-bit, Windows 8
• MacOS 8.5 and above
• IBM 4690 OS.
The linear imager also interfaces with other USB hosts which support USB Human Interface Devices (HID).

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
