4 - 10 LI2208 PRODUCT REFERENCE GUIDE
Data Bits (ASCII Format)
This parameter allows the linear imager to interface with devices requiring a 7-bit or 8-bit ASCII protocol.
Parity
A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to
host device requirements.
• Select Odd parity and the parity bit value is set to 0 or 1, based on data, to ensure that an odd number of
1 bits are contained in the coded character.
• Select Even parity and the parity bit value is set to 0 or 1, based on data, to ensure that an even number
of 1 bits are contained in the coded character.
• Select None when no parity bit is required.
NOTE When 7-bit is selected, Parity must be set to Odd or Even. If Parity is set to None, the scanner
automatically operates in 8-bit mode, even if 7-bit is scanned.

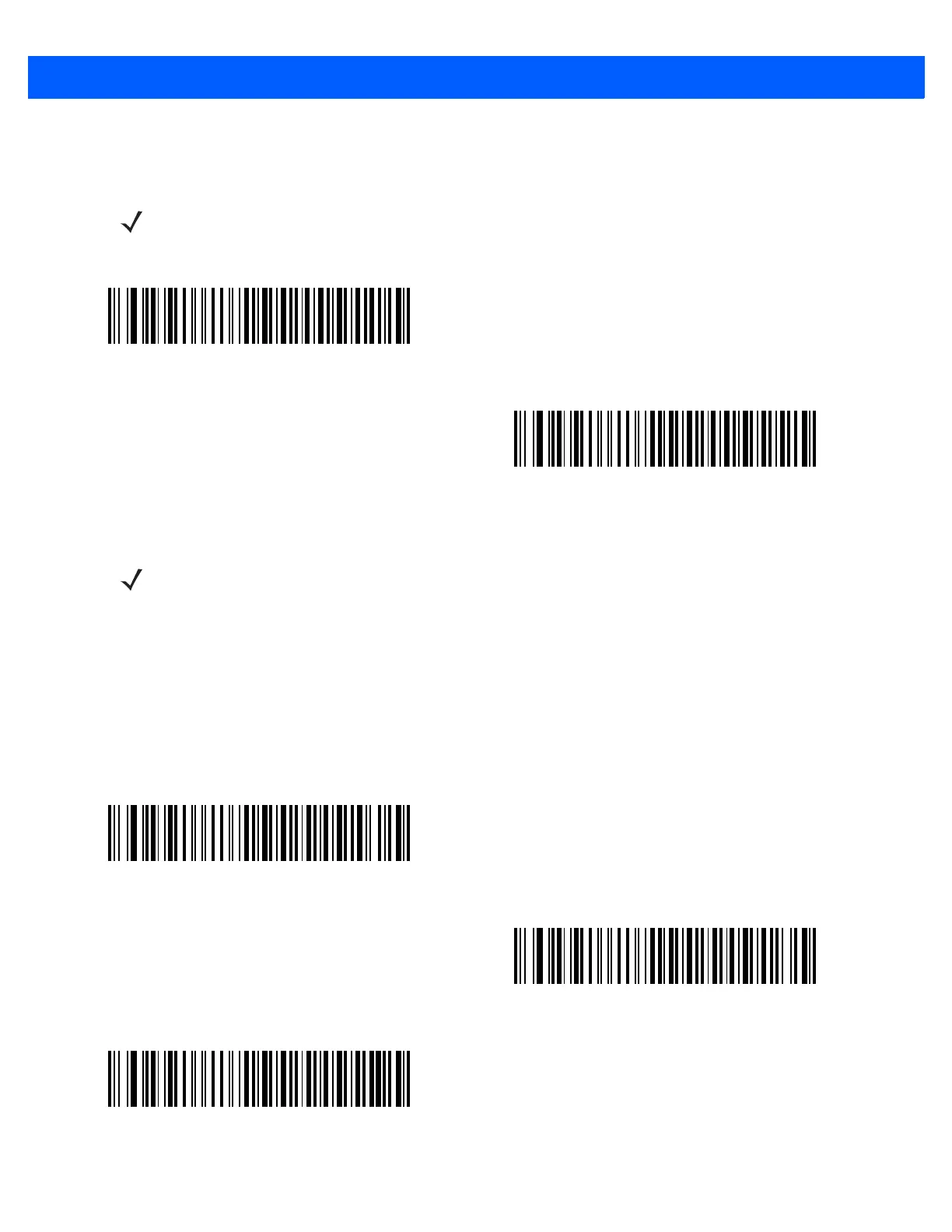

7-bit
*8-bit
NOTE Parity of None is not valid when Data Bits is set to 7-bit.
Odd
Even
*None

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
