Zebra LI2208 User Manual

4 - 18 LI2208 PRODUCT REFERENCE GUIDE
Nixdorf Beep/LED Options
When Nixdorf Mode B is selected, this indicates when the linear imager should beep and turn on its LED after
a decode.
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. When Send Bar Codes with Unknown
Characters is selected, all bar code data is sent except for unknown characters, and no error beeps sound on
the linear imager. When Do Not Send Bar Codes With Unknown Characters is selected, bar code data is
sent up to the first unknown character and then an error beep sounds on the linear imager.

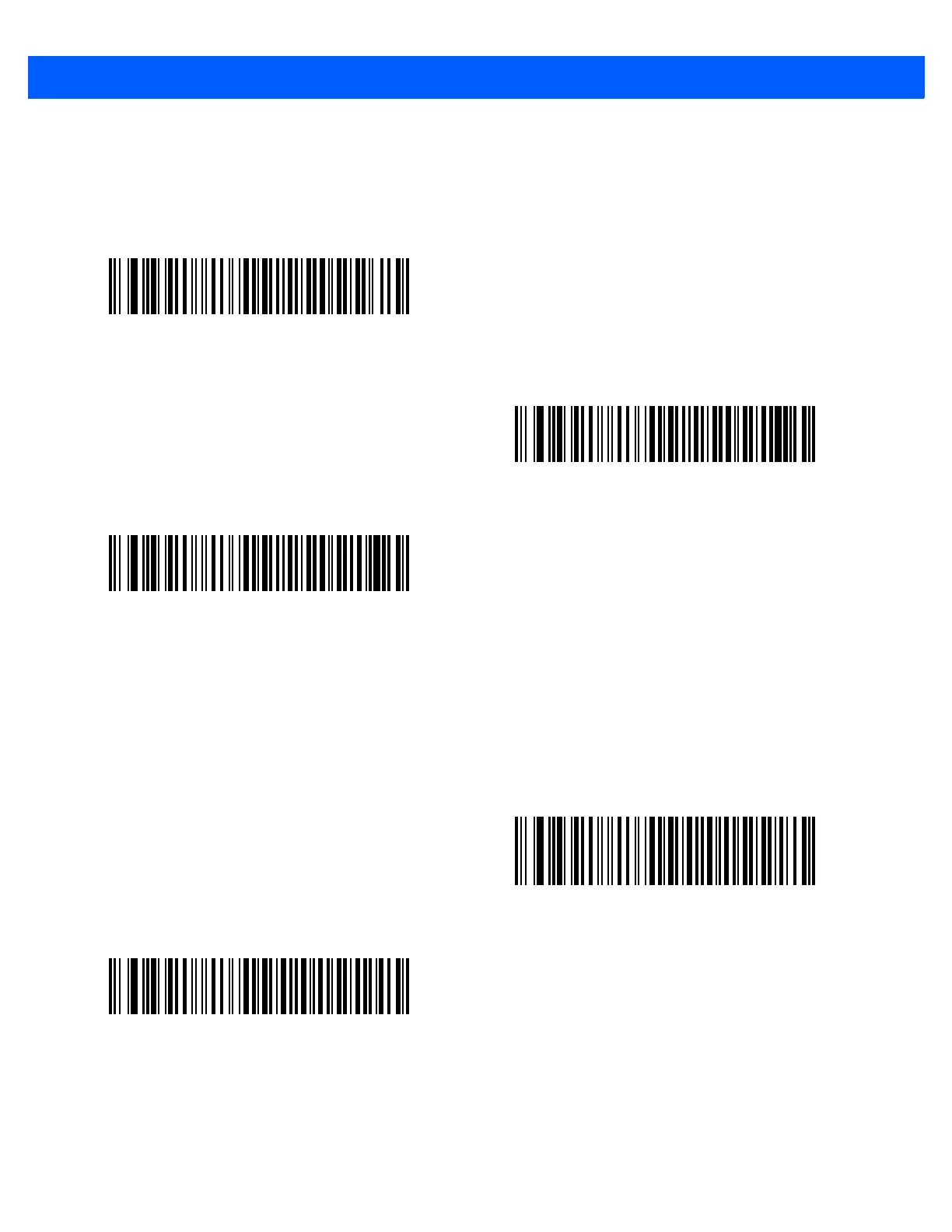

*Normal Operation
(Beep/LED immediately after decode)
Beep/LED After Transmission
Beep/LED After CTS Pulse
*Send Bar Code with Unknown Characters
Do Not Send Bar Codes with Unknown Characters

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
