Zebra LI2208 User Manual

6 - 2 LI2208 PRODUCT REFERENCE GUIDE
Connecting a Keyboard Wedge Interface

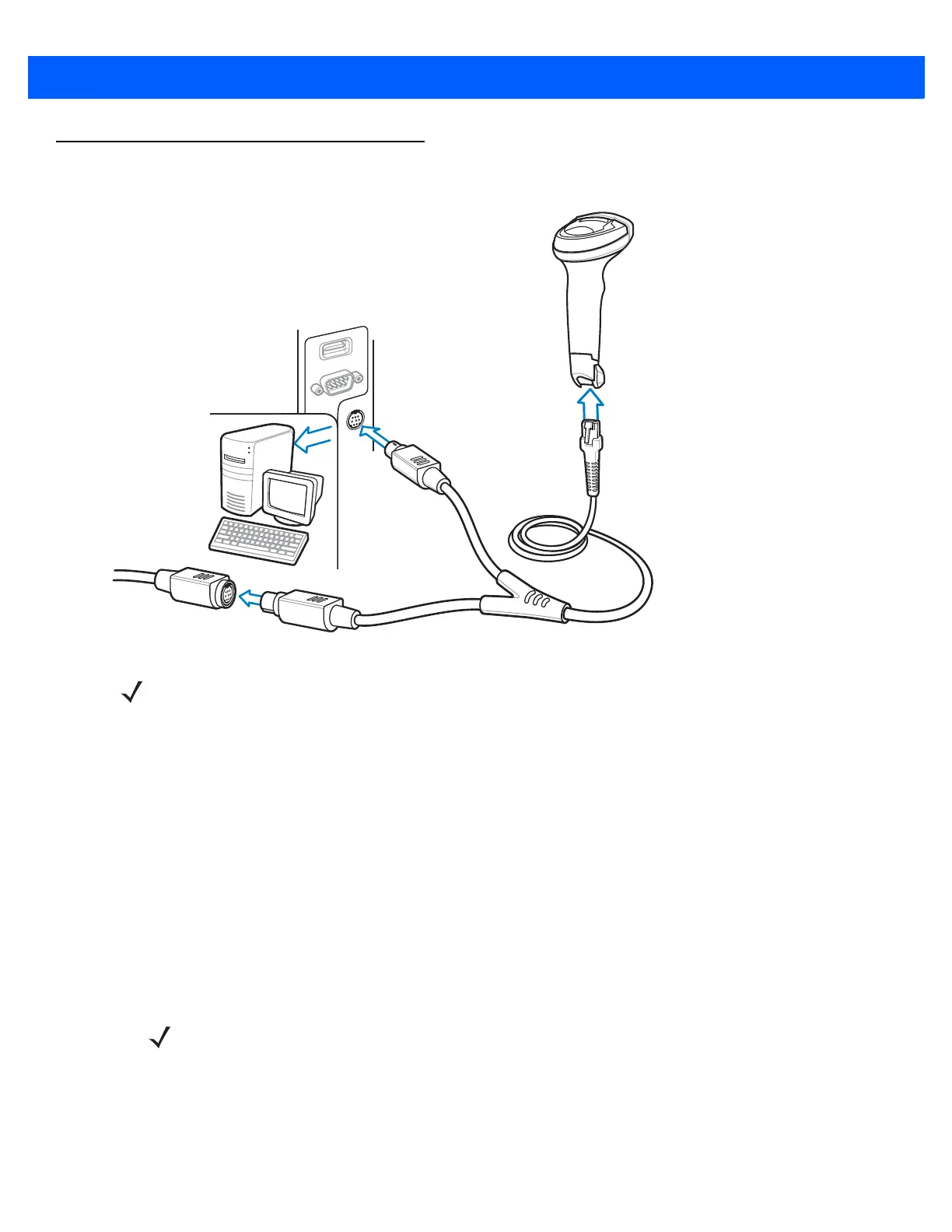

Figure 6-1 Keyboard Wedge Connection with Y-cable
To connect the Keyboard Wedge interface Y-cable:
1. Turn off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the linear imager.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host device.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. If needed, attach the optional power supply to the connector in the middle of the Y-cable.
6. Ensure that all connections are secure.
7. Turn on the host system.
8. Select the Keyboard Wedge host type by scanning the appropriate bar code from Keyboard Wedge Host
Parameters on page 6-4.
9. To modify any other parameter options, scan the appropriate bar codes in this chapter.
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 6-1 are examples only.
The connectors may be different than those illustrated, but the steps to connect the scanner remain the
same.
NOTE The Auto-Host Detect Cable feature automatically detects the host interface type and uses
the default setting. If the default (*) does not meet your requirements, scan IBM PC/AT & IBM PC
Compatibles on page 6-4.

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
