4 - 2 LI2208 PRODUCT REFERENCE GUIDE
Connecting an RS-232 Interface
This connection is made directly from the scanner to the host computer.

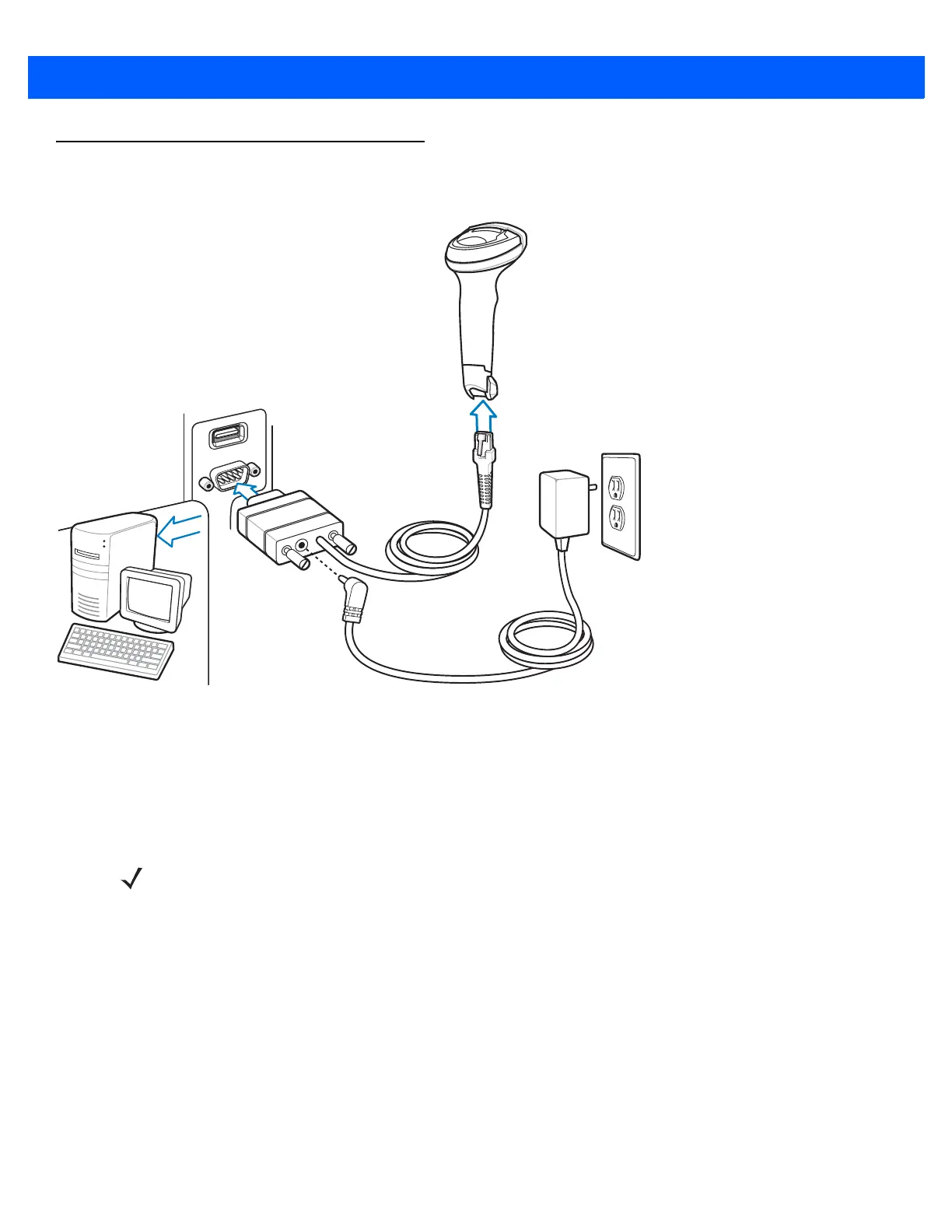

Figure 4-1 RS-232 Direct Connection
To connect the RS-232 interface:
1. Attach the modular connector of the RS-232 interface cable to the host port on the bottom of the scanner.
2. Connect the other end of the RS-232 interface cable to the serial port on the host.
3. Connect the power supply to the serial connector end of the RS-232 interface cable. Plug the power supply
into an appropriate outlet.
4. Select the RS-232 host type by scanning the appropriate bar code from RS-232 Host Types on page 4-6.
5. To modify any other parameter options, scan the appropriate bar codes in this chapter.
NOTE The interface cable automatically detects the host interface type and uses the default setting. If the default
(*) does not meet your requirements, scan another host bar code.

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
