Zebra TC56 User Manual

5 - 8 TC56 User Guide for Android Version 6.0.1

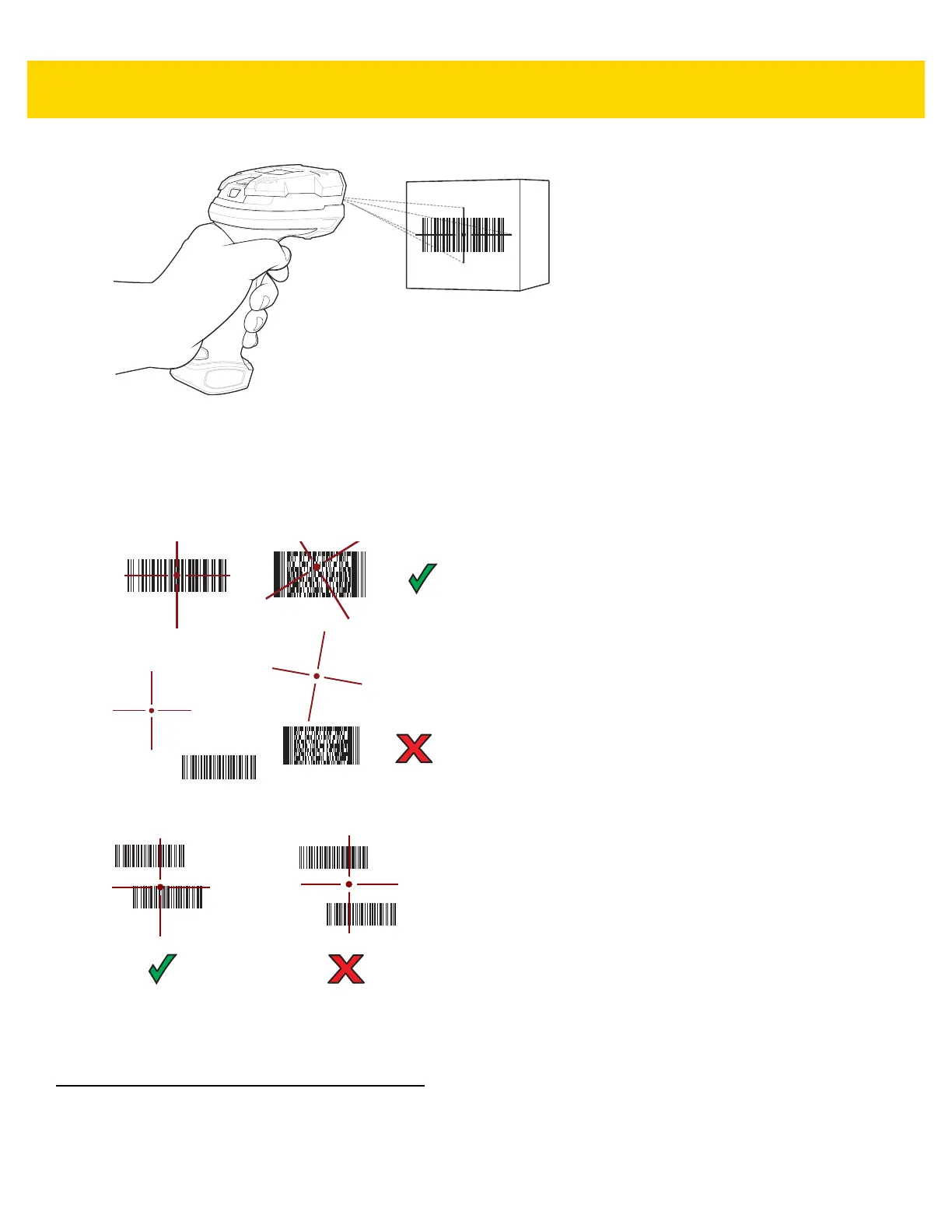

Figure 5-13 Bar Code Scanning with DS3678-HP
3. Press and hold the trigger.
Upon successful decode, the scanner beeps and the LED displays a single green flash.
Note that when the DS3678 is in Pick List Mode, the scanner does not decode the bar code until the center of
the crosshair touches the bar code.
Figure 5-14 Aiming Pattern
Figure 5-15 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Pairing the RS507/RS6000 Hands-Free Imager
To connect the RS507 or RS6000 imagers to the TC56, use one of the following methods:

Zebra TC56 Specifications

General

Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	0.016 GB
Internal memory	0.002 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Processor family	Qualcomm
Processor frequency	1.8 GHz
Operating system version	6.0
Operating system installed	Android
RFID reader	-
Certification	WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS), Miracast WFA (Mobile AP / Personal Hotspot)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Battery capacity	4300 mAh
Data network	CDMA, EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
WCDMA bands supported	850, 1900 MHz
Second camera	No
Rear camera resolution (numeric)	13 MP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	155 mm
Width	75.5 mm
Height	18.6 mm
Weight	249 g
