Replacing fuses
The circuit has 8 blade type fuses in its wiring circuit (See UTILIX 45 / UTILIX 55 Cabin wiring diagram)
When a fuse has blown replace it with one of the same value.
Using a large capacity fuse or wire burn out the wiring system.
Use fuse tongs to replace fuses.
Main fuses
Important: Always check the reason for a blown fuse otherwise the new fuse is also likely to
blow.
NEVER EVER USE WIRE in place of correct grade fuse.

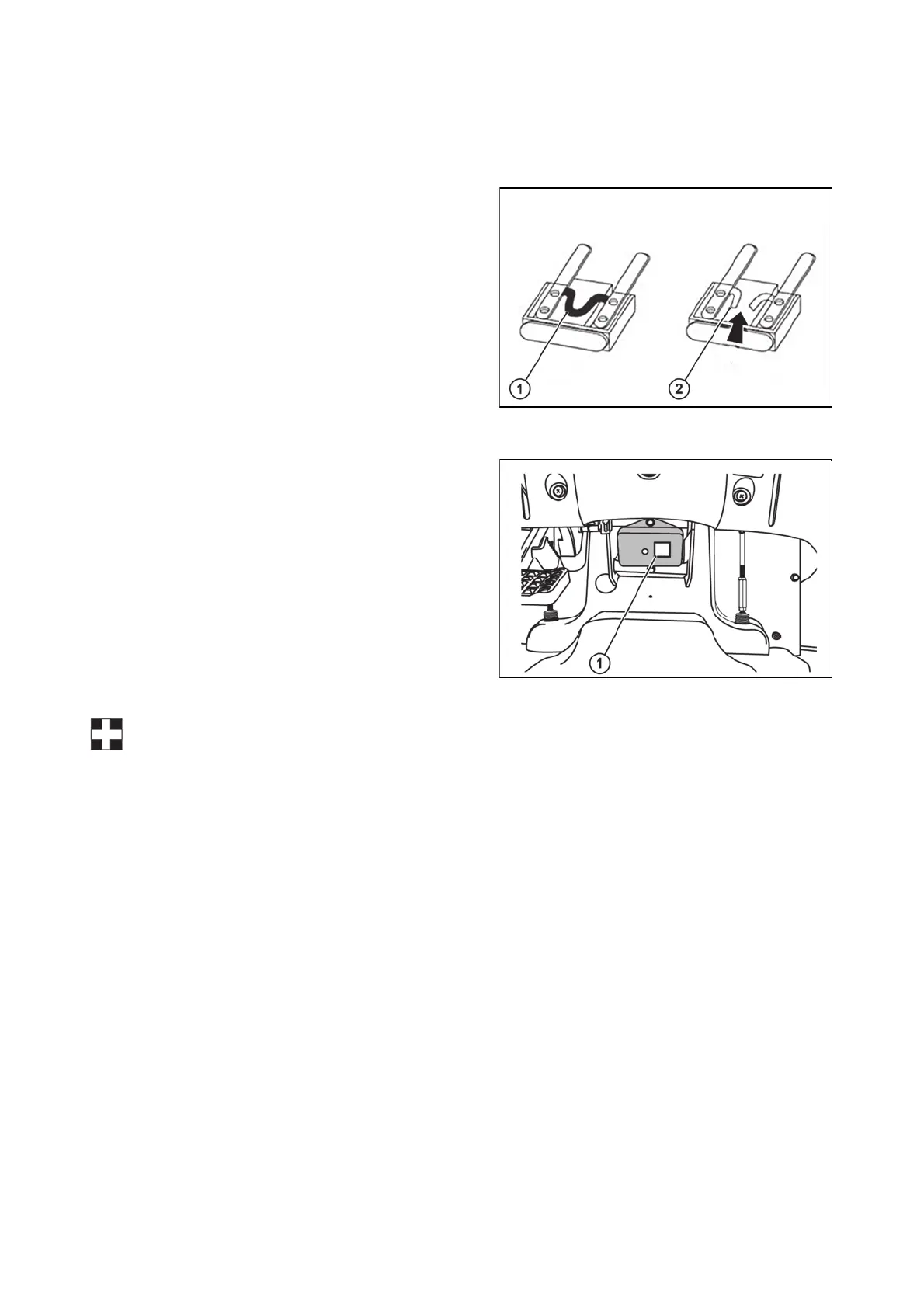

1 - Normal
2 - Blown out
U18N100
1 - Fuse case
The wiring harness is equipped with 3 main fuses who's
function is to preserve the wiring. However when a main
fuse blows the entire circuit is dead.
Always check the reason & rectify before replacing the
fuse of the same value.
U18N101
