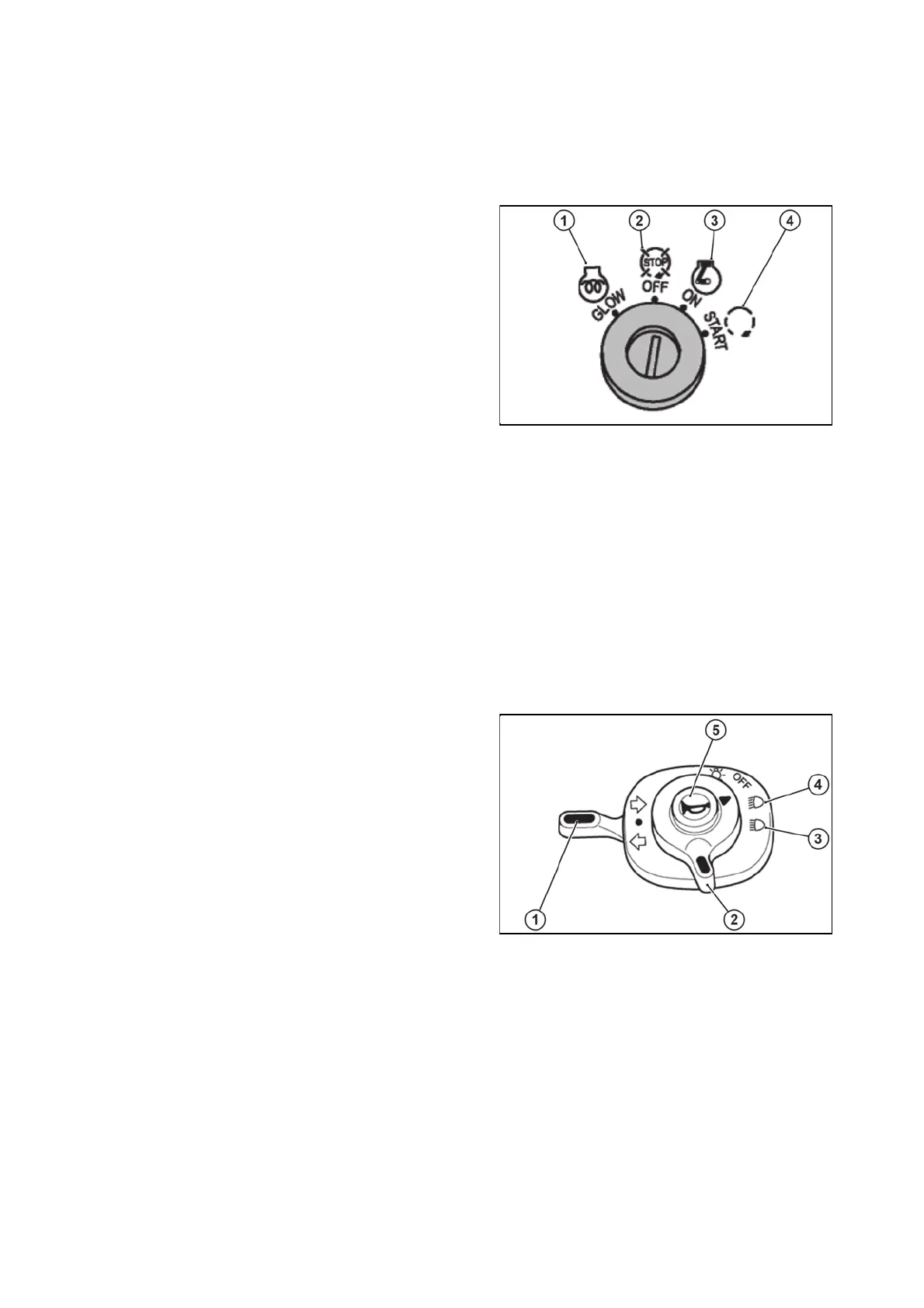

Main switch (key switch)
[OFF]- The key can be inserted or removed.
[ON]- The electric circuit is on.
[GLOW] - Glow plugs preheat the com-bustion chamber.
[START]- The starter motor is engaged.
When the key is released it will return to the ON position.
Headlights, turn signal lights, beacon and horn switch
Front light switch
High beam and low beam lights are controlled by the main switch
Position 3 - high beam light and beacon light
Position 4 - low beam light and beacon light
Turn signal light switch
Pull down the turn signal light lever to activate the left turn signal light.
Push up the turn signal light lever to activate the right turn signal light.
Horn
Press the red button.
1 - Glow
2 - Off
3 - On
4 - Start
U18N011
Beacon
The beacon is switched on simultaneously when the low
beam lights or high beam lights are switched on
- positions 3 and 4
U18N012
CONTROLS, INSTRUMENTS & OPERATIONS
