Joystick leve
NOTE: The joystick can also be used for other applications if the front loader is not attached.
3
rd
function of the loader is controlled by the button on the joystick head.
Safety implement for joystick lever
Warning:
Hydraulic fluid escaping under pressure can have enough force to penetrate the skin.
Hydraulic fluid may also infect a minor cut or opening in the skin.
If injured by escaping fluid. See a doctor at once.
Serious infection or reaction can result if medical treatment is not given immediately. Make sure all
connections are tight and that hoses and lines are in good condition before applying pressure to the
system.
Release all pressure before disconnecting the lines or performing other work on the hydraulic
system.
To find a leak under pressure use a small piece of cardboard or wood. Never use hands.
To control the front loader and the front three-point hitch,
the joystick lever is used.
It allows to control the lifting, lowering and unloading of the
front loader with one lever.
To lift the front loader: Pull the lever backwards.
To lower the front loader: Push the lever forwards.
To roll back the adapter: Push the lever to the left.
To dump (unload) the adapter: Push the lever to the right.
To control the third loader function, the button located on
the joystick head is used.

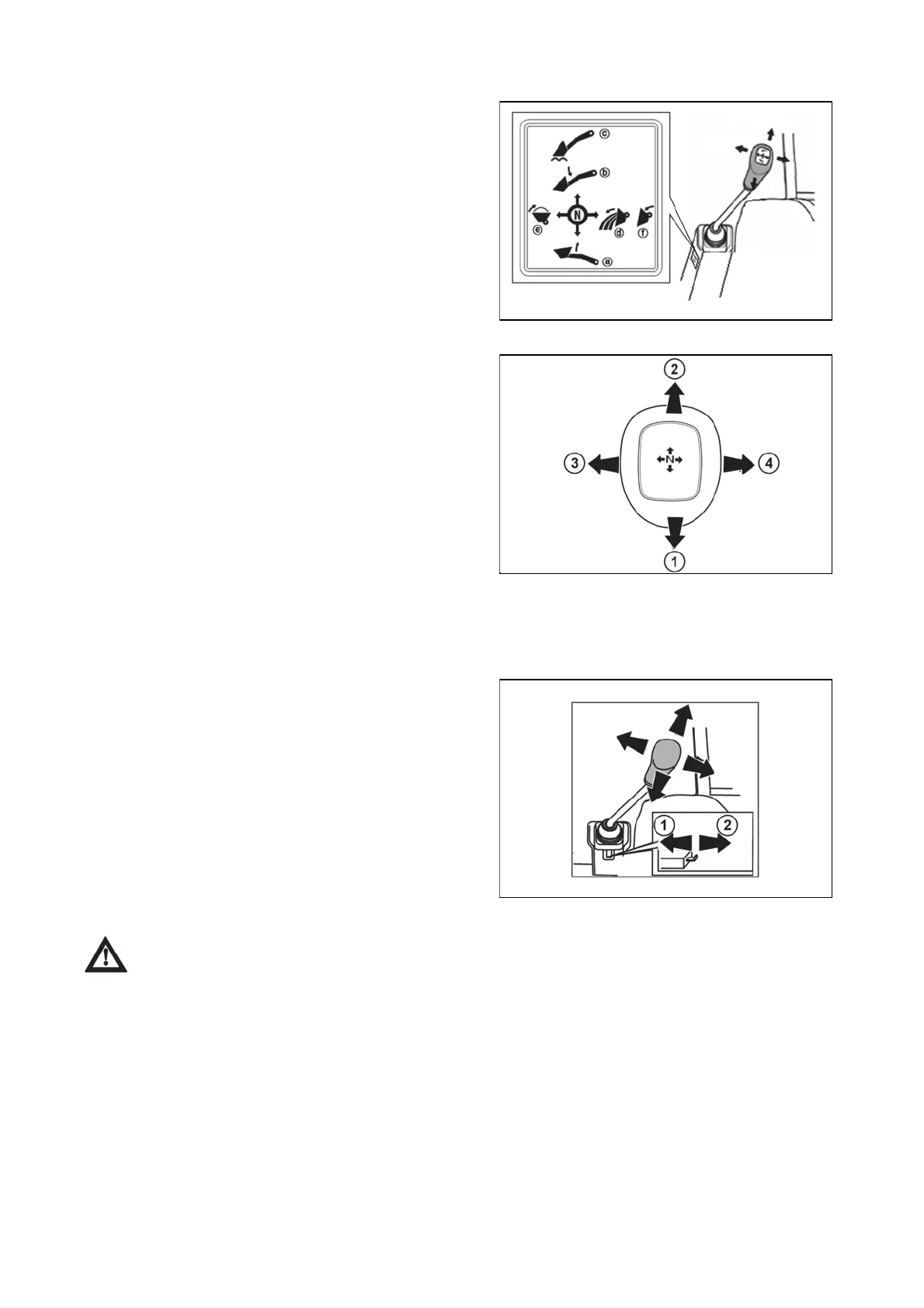

U18N038
1. Lifting of the front loader boom
2. Lowering of the front loader boom
3. Rolling the front loader adapter back
4. Dumping the front loader adapter
UCL18N035
1 - Lock
2 - Unlock
This simple Safety locking system can lock the joystick by
pushing the Button and unlocked by pulling.
U18N040
CONTROLS, INSTRUMENTS & OPERATIONS
