Zetor UTILIX HT Series User Manual

Adjustment of the top link
Adjustment of the lower links of the three-point hitch
Retraction of the lower link (if it is the extendable type)
Push the point area and pull the end of the lower link to adjust the length of lower link.
Danger: Only use drawbar to tow and keep the 3 point linkage in raised position when toeing
with the drawbar. Position can create unbalance causing the tractor to roll-over & result the death or
serious injury.

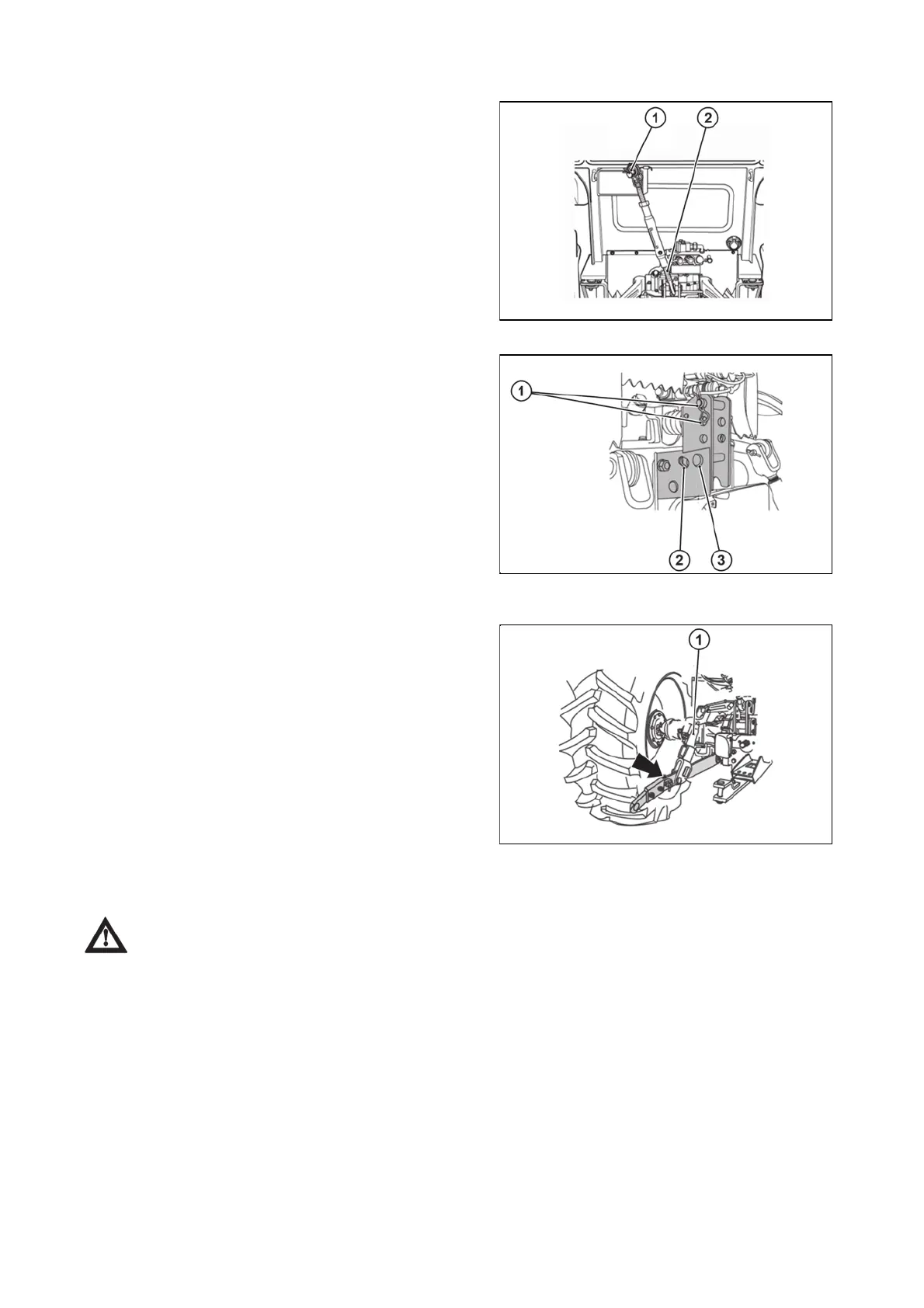

1 - Upper Link
2 - Length Adjustment Handle of the Upper Link
Extending or shortening the upper link changes the angle
of the implement.
U18N043
1 - Position of Top Link
1) For general implement: Use the Pin to Position 3 point.
2) For Draft control: Use the Pin to Position 2 point.
U18N044
1 - Vertical link
Adjustment is made using the adjustment handle of the
right vertical link.
Turn the handle clockwise to retract and turn the handle
counterclockwise to extend.
After proper adjustment, secure the handle against
spontaneous rotation.
U18N045
CONTROLS, INSTRUMENTS & OPERATIONS
68
