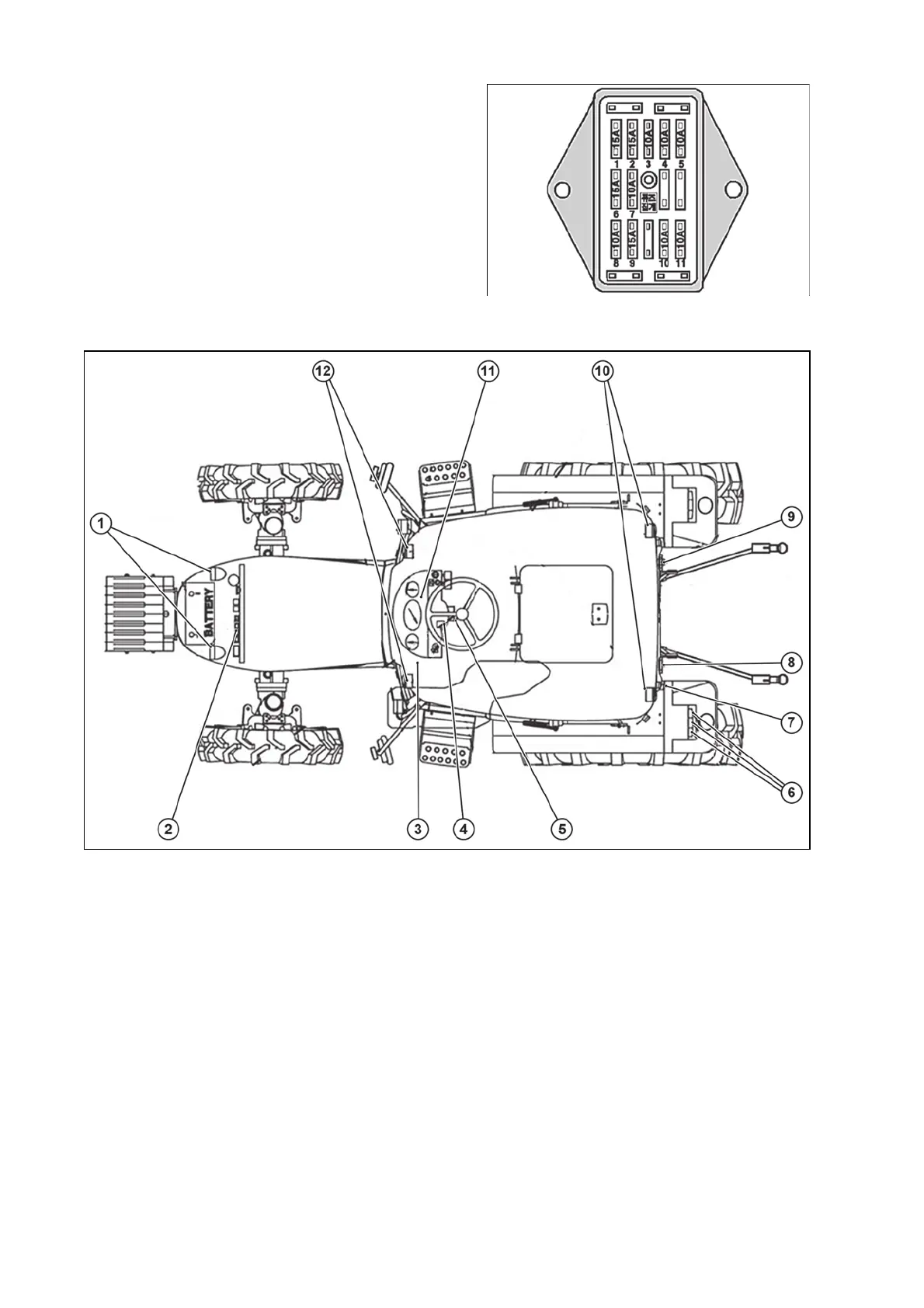

U18N133
1 - Head lamp - 12V55W
2 - Slow blow fuse
3 - Units for direction signal relay for the power
4 - PTO monitor
5 - Fuse box
6 - Turn signal lamp (rear) - 12V21W; Stop lamp, Tail lamp - 21/5W
7 - Coupler for the power max rated ampere
8 - Reversing lamp - 12V20W
9 - Coupler for the trailer
10 - Working lamp - 12V35W
11 - Instrument panel lamp - 12V3.4W
12 - Turn si
nal lam
front
- 12V21W; Front
osition lam
-21V5W
1 - Panel, range RPM sensor
2 - Head lamp, horn
3 - Working lamp
4 - Stop lamp, reversing lamp
5 - Turn signal
6 - PTO
7 - Fuel pump engine stop
8 - Not used
9 - Coupler
10 - Controller
11 - E-hydro
U18N132
