Cooling
solutions

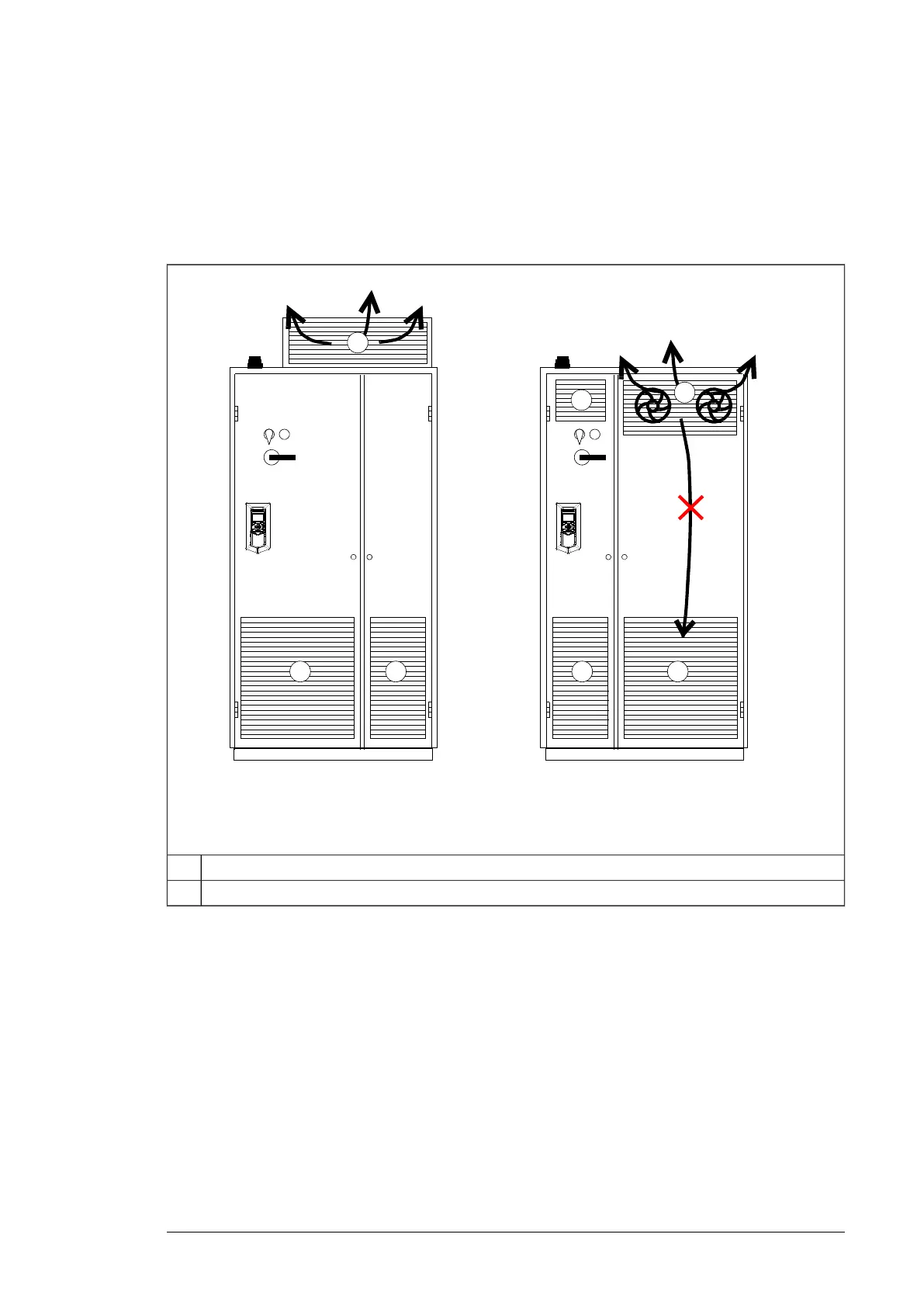

The
drawing
below
shows
typical
cabinet
cooling
solutions.
The
air
inlet
is
at
the
bottom
of
the
cabinet,
while
the
outlet
is
on
the
roof
or
on
the
upper
part
of
the
door
.
Use
extra
exhaust
fans
if
the
air
outlet
is
on
the
cabinet
door
,
see
the
technical
data
for
the
required
cooling
air
flow
.
1
1
2
1
1
2
2
Air
inlet
1
Air
outlet
2
Preventing
the
recirculation
of
hot
air
Guidelines
for
planning
the
mechanical
installation
55
54
56
