238 Parameters
AI2 percent 12.102 AI2 percent value 12
Control panel (ref
saved)
Panel reference (03.01 Panel reference, see page 111)
saved by the control system for the location where the
control returns is used as the reference.
13
Control panel (ref
copied)
Panel reference (03.01 Panel reference, see page 111) for
the previous control location is used as the reference
when the control location changes if the references for the
two locations are of the same type (eg
frequency/speed/torque/PID); otherwise, the actual signal
is used as the new reference.
14
EFB ref1 03.09 EFB reference 1 19
EFB ref2 03.10 EFB reference 2 20
Setpoint data storage 40.92 Setpoint data storage 24
Integrated panel (ref
saved)
See above Control panel (ref saved). 26
Integrated panel (ref
copied)
See above Control panel (ref copied. 27
Other Source selection (see Terms and abbreviations). -
40.17 Set 1 setpoint 2
source
Selects the second source of process setpoint. The
second source is used only if the setpoint function
requires two inputs.
For the selections, see parameter 40.16 Set 1 setpoint 1
source.
Not selected
40.18 Set 1 setpoint function Selects a function between the setpoint sources selected
by parameters 40.16 Set 1 setpoint 1 source and 40.17
Set 1 setpoint 2 source.
In1
In1 Source 1. 0
In1+In2 Sum of sources 1 and 2. 1
In1-In2 Source 2 subtracted from source 1. 2
In1*In2 Source 1 multiplied by source 2. 3
In1/In2 Source 1 divided by source 2. 4
MIN(In1,In2) Smaller of the two sources. 5
MAX(In1,In2) Greater of the two sources. 6
AVE(In1,In2) Average of the two sources. 7
sqrt(In1) Square root of source 1. 8
No. Name/Value Description Default
FbEq 16
Ext1 -> Ext2
t
Reference
Ext1 reference
Ext2 reference
Active reference
Inactive reference
Ext1 -> Ext2
Ext1 reference
Ext2 reference
Active reference
t
Inactive reference
Reference

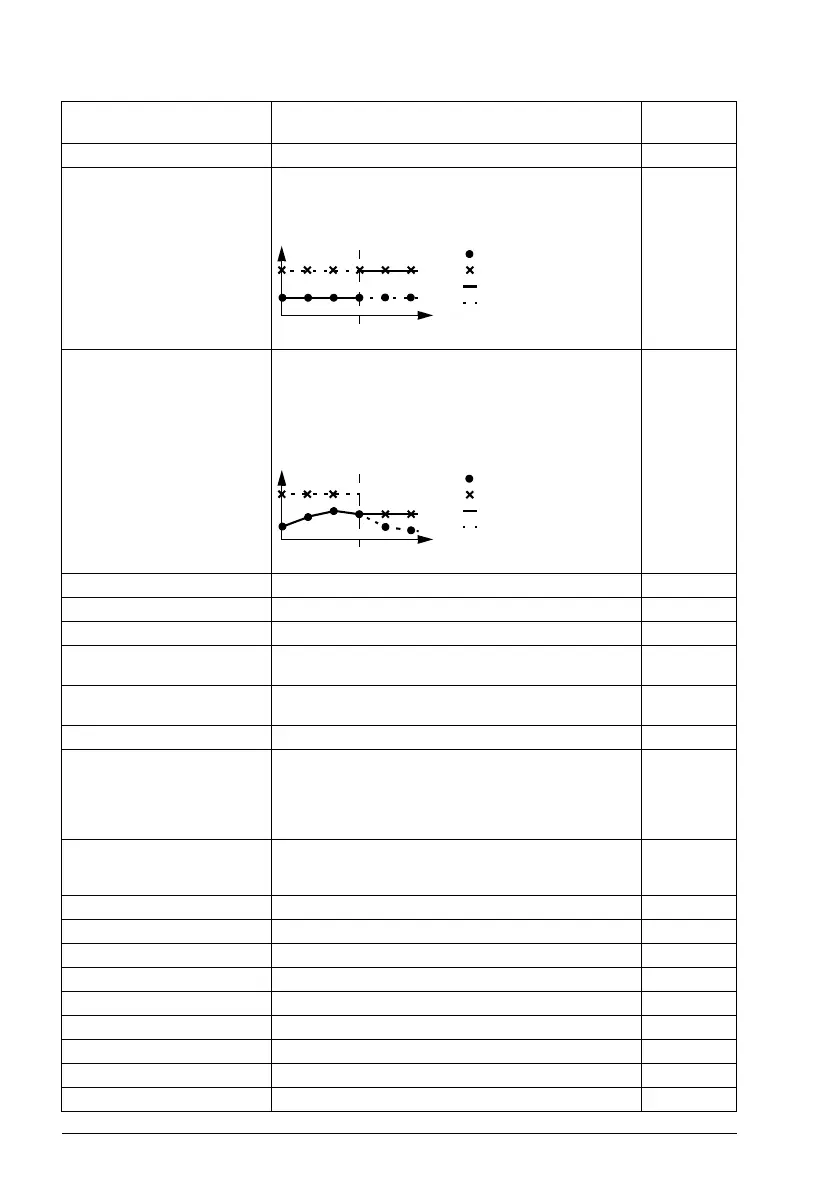

ACS180 FW.book Page 238 Tuesday, March 9, 2021 2:25 PM
