Control macros 31

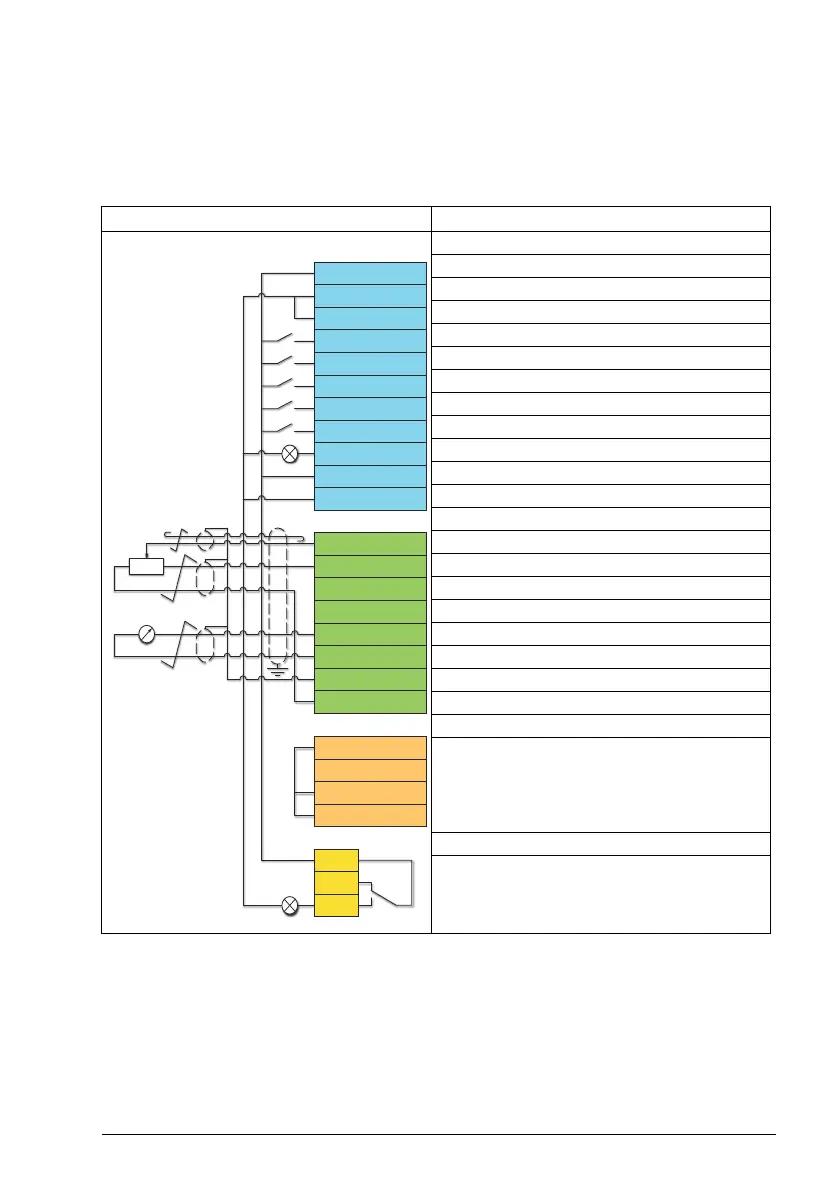

Default control connections for the ABB standard macro
This connection diagram is valid for the standard drive variant ACS380-04xS and the
configured drive variant ACS380-04xC +L538 (with the ABB standard macro
selected).
Notes:
Terminal sizes: 0.14 mm² … 1.5 mm²
Tightening torques: 0.5 N·m (0.4 lbf·ft).
Terminals DGND, AGND and SGND are internally connected to same reference
potential.
Terminals Description
Digital I/O connections
Aux. +24 V DC, max 200 mA
Aux. voltage output common
Digital input common
Start forward; DI1 = DI2: stop
Start reverse
Constant speed / freq selection
1)
Constant speed / freq selection
1)
Ramp set 1(0) / Ramp set (2)
2)
Ready run (0) / Not ready
Digital output auxiliary voltage
Digital input/output common
Analog I/O
Speed / freq.(0...10V)
Analog input circuit common
Not configured
Analog input circuit common
Output frequency (0...20 mA)
Analog output circuit common
Signal cable shield (screen)
Ref. voltage +10 V DC
Safe torque off (STO)
Safe torque off. Connected at factory.
Drive starts only if both circuits are closed.
Relay output 1
No fault [Fault (-1)]
+24V
DGND
DCOM
DI1
DI2
DI3
DI4
DIO1
DIO2
DIO SRC
DIO COM
AI1
AGND
AI2
AGND
AO
AGND
SCR
+10V
S+
SGND
S1
S2
RC
RA
RB
1...10 kohm
Max. 500 ohm
