ABB ACS380 Series User Manual

458 Control chain diagrams

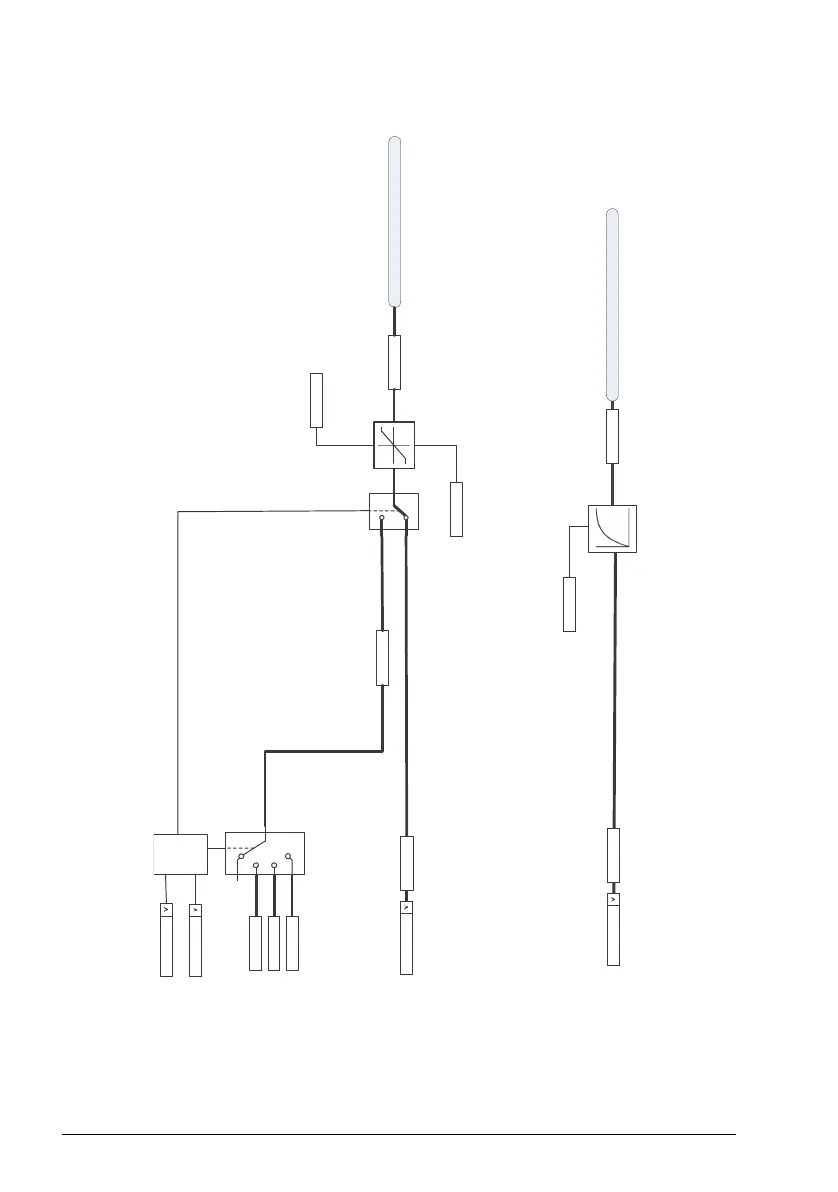

External PID setpoint and feedback source selection
71.26 Setpoint min
71.27 Setpoint max
71.11 Feedback filter time
Value
71.16 Setpoint 1 source
71.21 Internal setpoint 1 71.22 Internal setpoint 2 71.23 Internal setpoint 3
Selection
Value
Value
Value
71.08 Feedback 1 source
Selection
71.02 Feedback act value
Value
Value
71.03 Setpoint act value
Value Value Value
Value
71.62 PID internal setpoint actual
Value
71.19 Internal setpoint sel1 71.20 Internal setpoint sel2
BIN TO INT SEL
b0
b1
0
Selection
Selection
OUT
0
1
2
3
0
