ABB ACS380 Series User Manual

Control chain diagrams 453

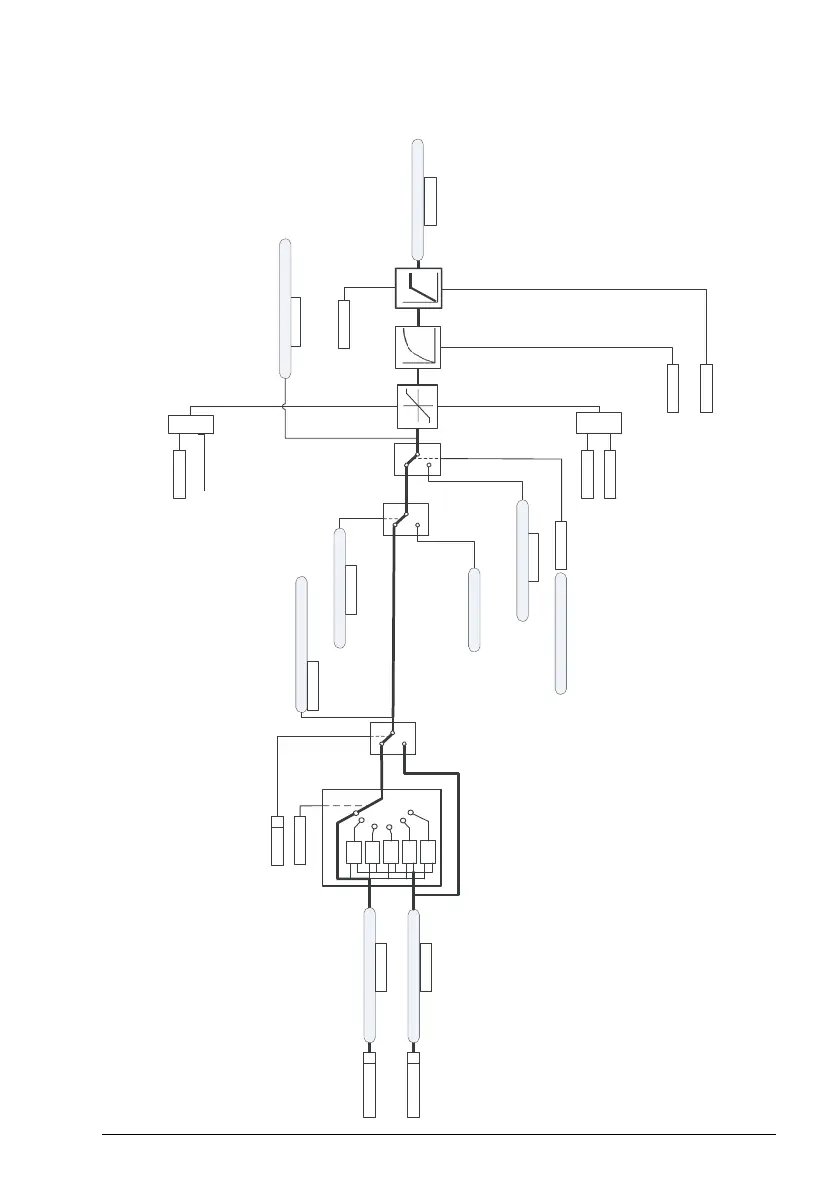

Torque reference source selection and modification
26.18 Torq ramp up time
26.19 Torque ramp down time
26.17 Torque ref filter time
26.13 Torq ref1 function
26.14 Torq ref1/2 selection
26.11 Torq ref1 source
Selection
>
26.12 Torq ref2 source
Selection
>
26.70 Torque Reference act 1
26.71 Torque Reference act 2
MUL
ADD
SUB
MIN
MAX
Ref 1
26.72 Torque reference act 3
Value
Selection
>
Value Value
MAX
26.08 Minimum torque ref
Value Value
Internal torque lim min
MIN
26.09 Maximum torque ref
Value
Value
Value Value
26.74 Torque ref ramp out
Value
Value
Network ref
Internal torque lim max
Fieldbus: ODVA CIP™
Value
Value
Value
Value
6.16 bit 9 Network control
6.16 bit 8 Local control
03.01 Panel reference
26.73 Torque reference act 4
