ABB DCS 500B User Manual

Functional Software description
2 DCS 500 Software Description
Software Overview
Parameter Sets Two parameter sets are available for two different applications in a
drive.
Example: A digital input can be used to select 1 of 2 parameter
sets. Parameter set 1 is for motor set 1 and parameter set 2 is for
motor set 2. A digital output is used to control external hardware
which selects the actual motor 1 or motor 2 connection.
M1
DCS 500 Converter
AC supply
M MM
PARAMETER
SET 1 for
APPLICATION 1
M2 M1M2
M
I/O board
PARAMETER
SET 2 for
APPLICATION 2
Field M1
(Field M2)
Field M1
(Field M2)
[MOTOR2]
RDY RUNNING
RDY ON
913
MOTOR ACT
10913
SOFTWARE
Drive Logic
DI
DO
Application 2
selected
Application selection
0 = Appl. 1
1 = Appl. 2

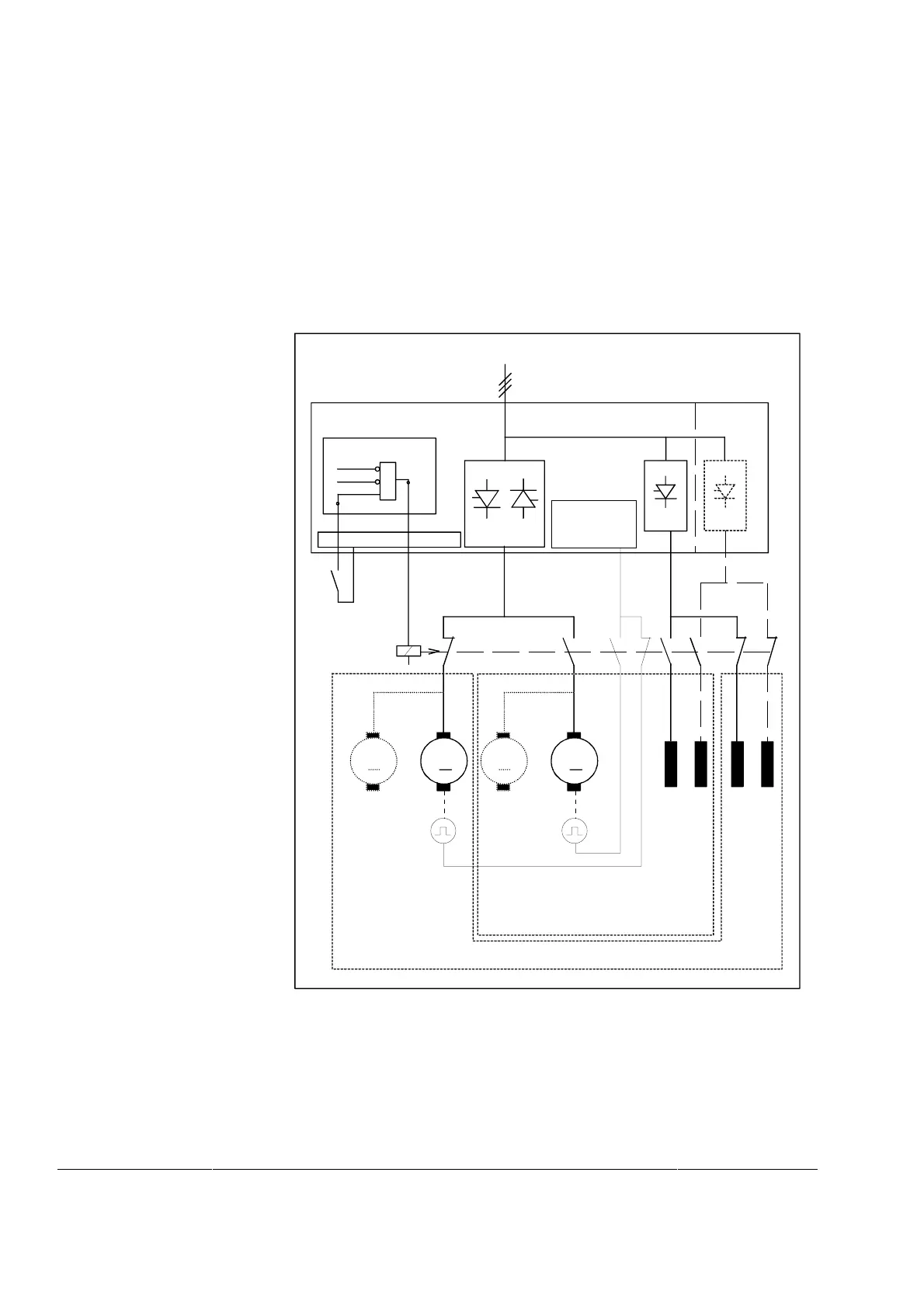

Figure 2 Two different applications in one drive
Saving the pro-
gram
The converter program is stored in a FPROM memory circuit
(D33).The parameters for the converter and the field exciter are
stored in one FPROM memory circuit (D35). The circuits are in-
stalled on the control board SCDS-CON-2.
