 Configuring an Allen-Bradley® PLC
This example shows how to set up an Allen-Bradley CompactLogix
PLC with a 1769-SDN DeviceNet Scanner to use a drive equipped
with a FDNA-01 fieldbus adapter, using RSNetWorx and RSLogix
5000 to configure and control the network. Slight vendor-specific
differences may exist when using other programs or master
devices.
In this example, ACS880 is used as the drive.

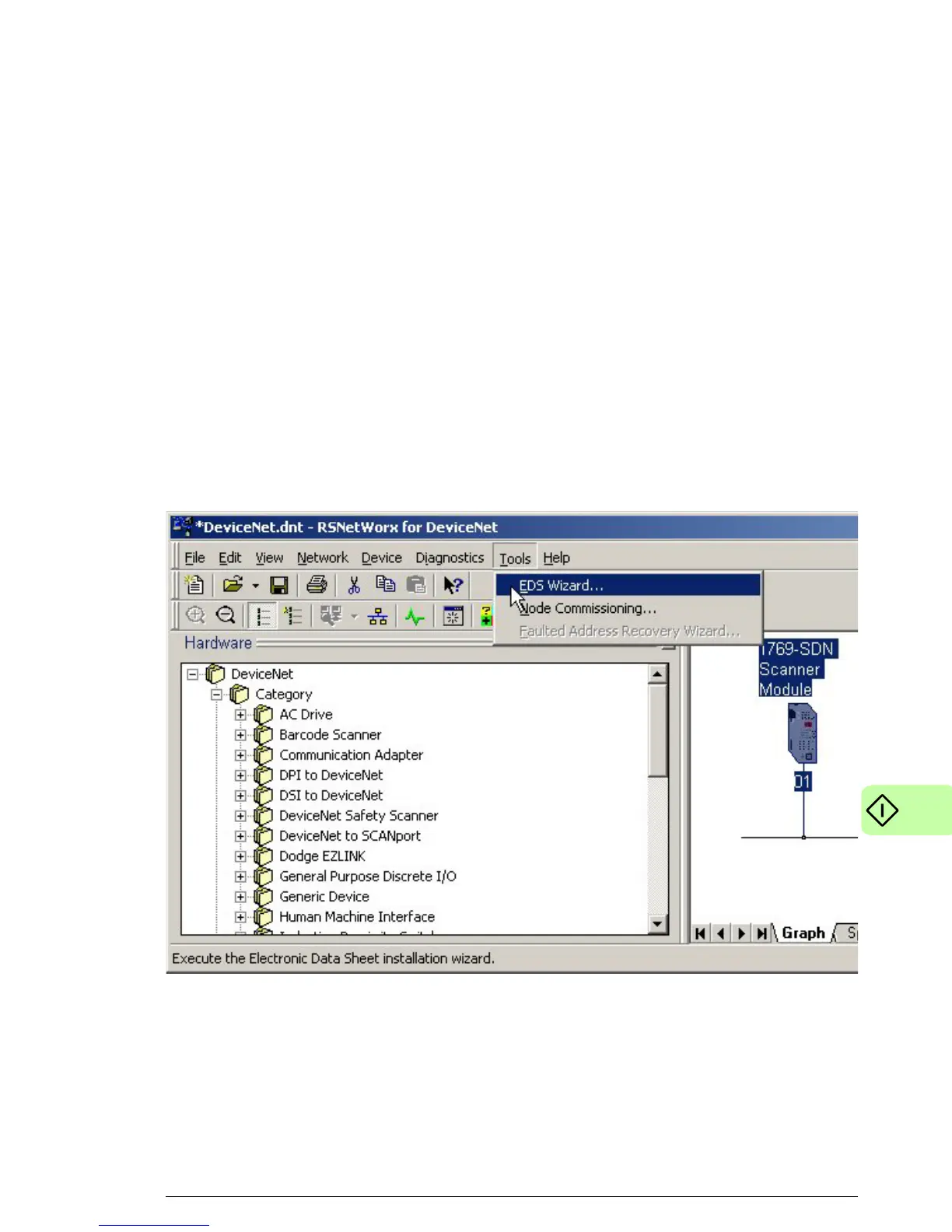

1. Select and import the EDS file for the drive, for example,
ACS880_FDNA01_v2.23_eu.EDS. For more help on choosing
the correct file, refer to ABB EDS Selection Guide delivered
with the EDS files.
Note: Only one EDS file with the same Product ID can be
installed in the PLC at a time.
2. Add a drive to the network in RSNetWorx for DeviceNet.
