ABB IRB 2600 Series User Manual

IRB 2600 Type C-20/1.65, IRB 2600 Type C-12/1.65

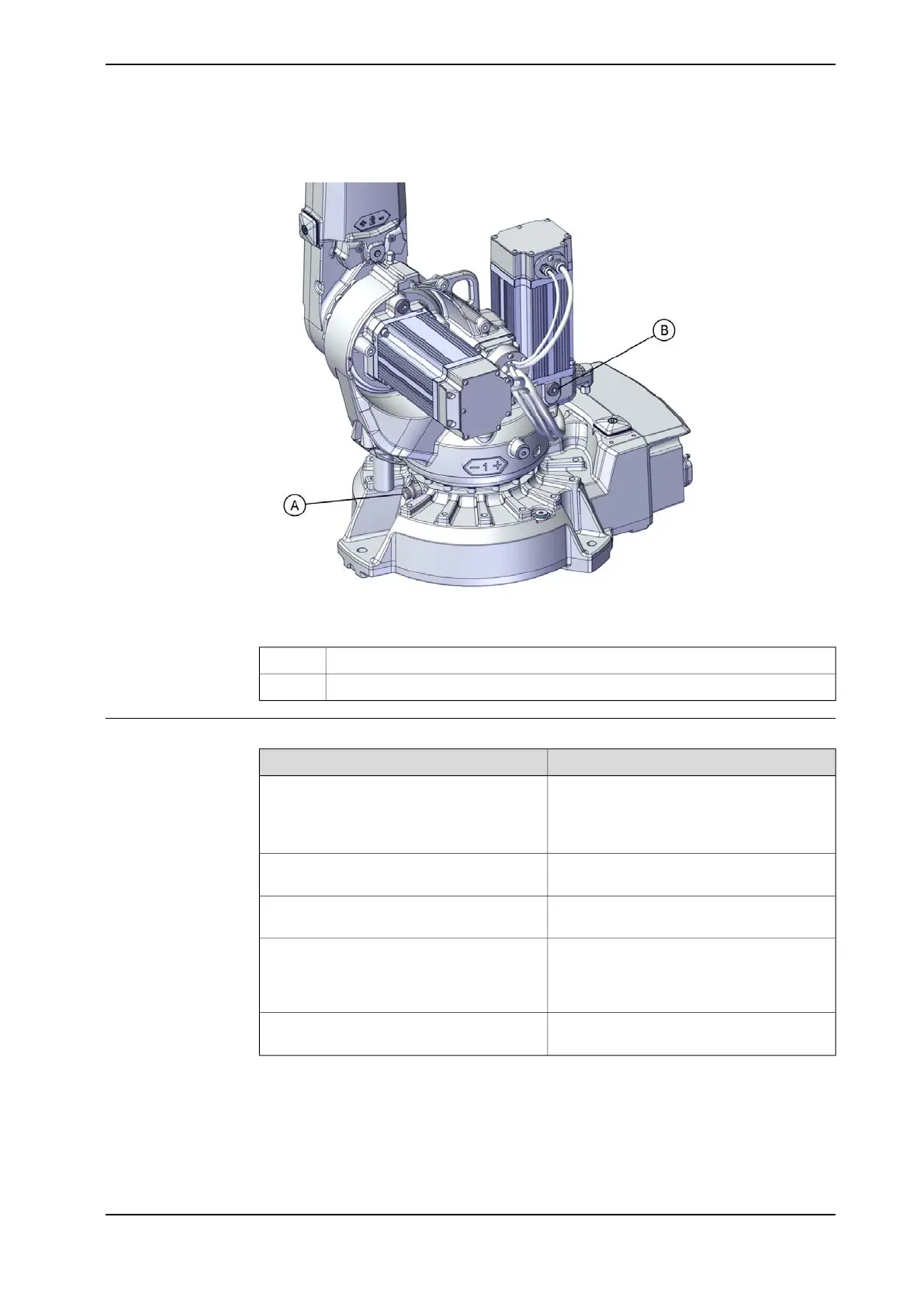

xx1800001135
Oil plug, filling and drainingA
Oil plug, ventingB
Required equipment
NoteEquipment
Valid for IRB 2600-20/1.65, IRB 2600-12/1.65,
IRB 2600-12/1.85, IRB 2600ID-15/1.85, IRB
2600ID-8/2.0
Oil plug sealing washer, gearbox
3HAC029646-001
See section Type of lubrication in gearboxes
on page 148.
Lubricating oil
The capacity of the vessel must be sufficient
to take the complete amount of oil.
Oil collecting vessel
One example of oil dispenser can be found
in section:
• Type of lubrication in gearboxes on
page 148
Oil dispenser
Content is defined in section Standard tools
on page 441.
Standard toolkit
Continues on next page
Product manual - IRB 2600 151
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
3 Maintenance
3.4.2 Changing the oil, axis 1 gearbox on floor mounted robots
Continued
