NoteAction
Note
Always use removal tools in pairs diagon-
al to each other.

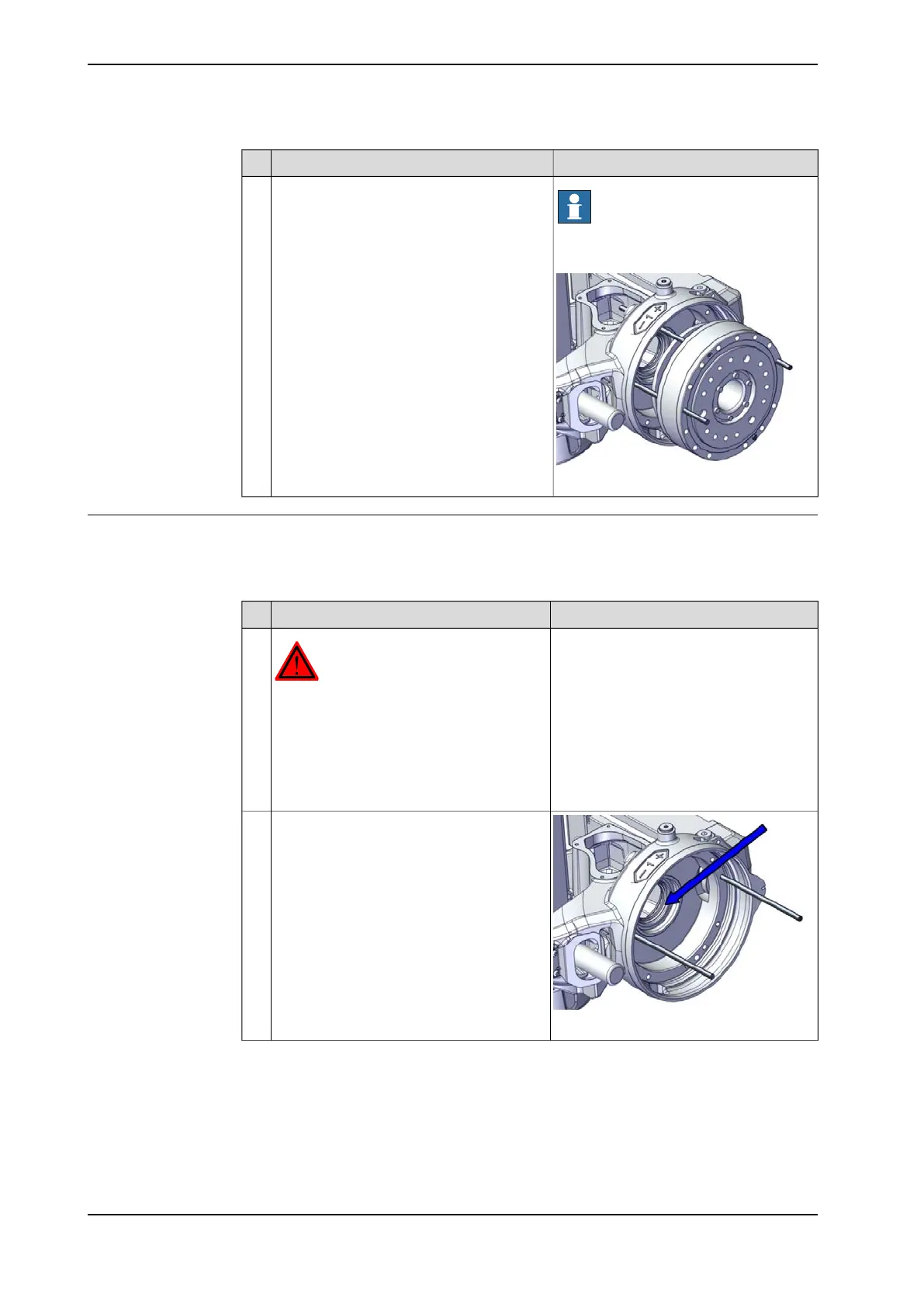

Slide the gearbox out onto the guide pins
and lift it away.
If necessary use removal tools to remove
the gearbox.
16
xx1800000791
Refitting gearbox axis 1
Use these procedures to refit the gearbox.
Refitting the gearbox to the frame
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
1
xx1800000794
Check the radial sealing in the frame.
Replace if damaged.
2
Continues on next page
364 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.8.1 Replacing gearbox axis 1
Continued
