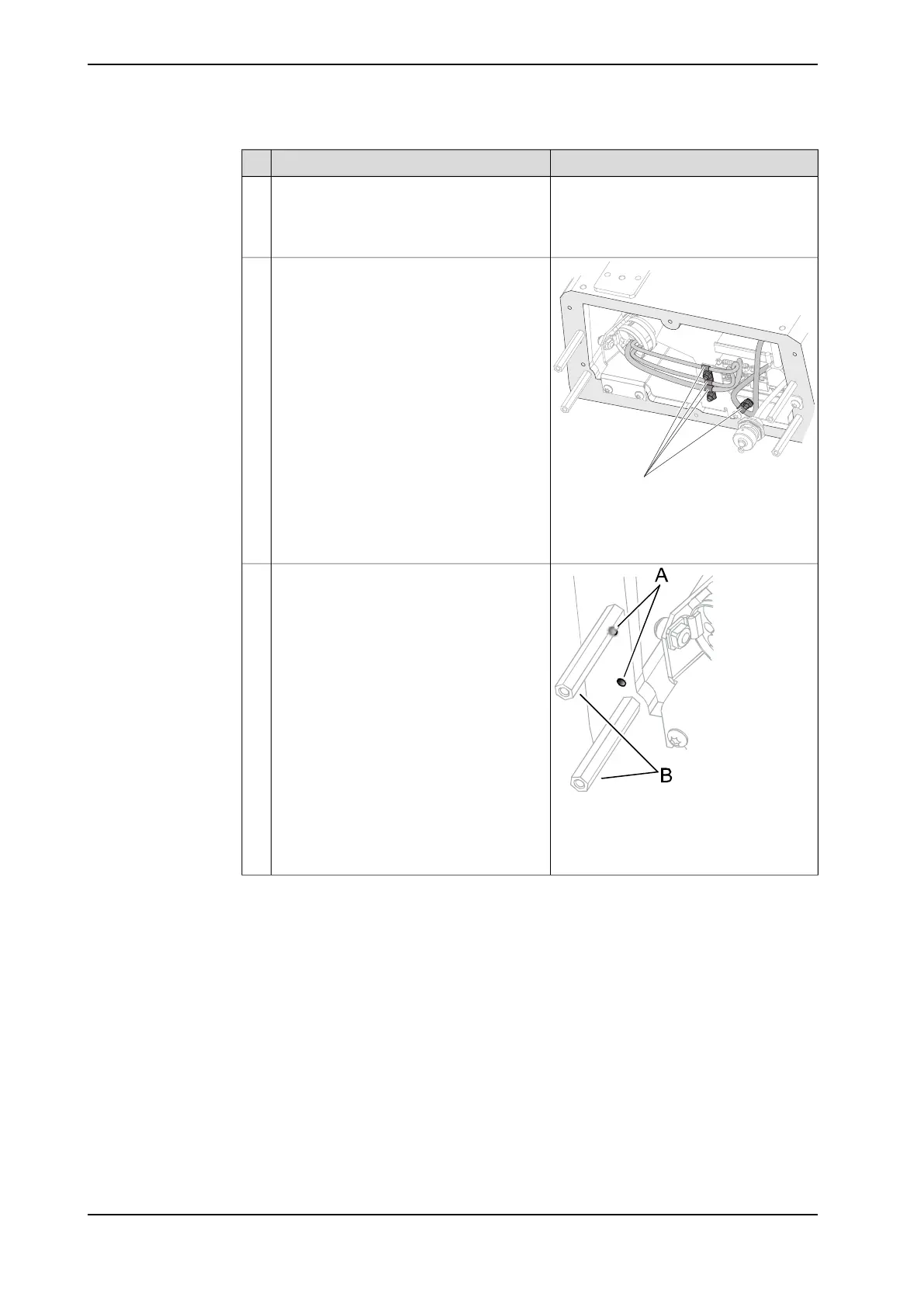

ABB IRB 2600 Series User Manual

NoteAction
Disconnect connectors on the SMB unit:
• R1.SMB1-2
• R1.SMB2-6
• R2.SMB
14
A
xx0900000035
Disconnect the screen connections of:
• R1.SMB1-2
• R1.SMB2-6
15
Parts:
• A: Screen connection (4 pcs)
xx0900000015
Disconnect the earth cables.16
Parts:
• A: Earth
• B: Distance screws
Continues on next page
202 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.3.1 Removing the complete cable harness
Continued
