ABB IRB 2600 Series User Manual

NoteAction
xx0900000098

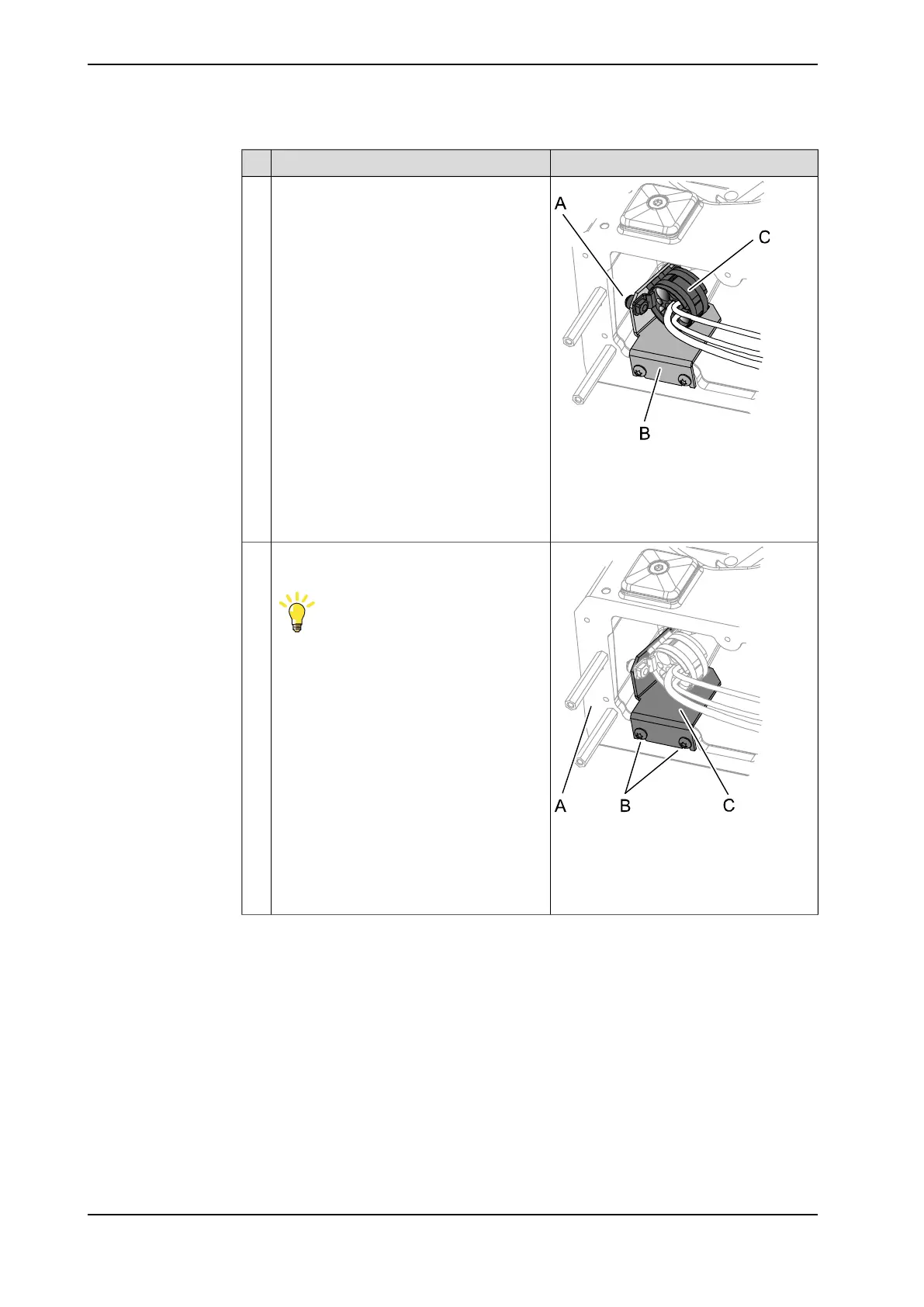

Attach the cable harness to the bracket.2
Parts:
• A: Attachment screw and nut
• B: Bracket
• C: Cable harness
xx0900000018
Secure the bracket on its attachment screws
in the base.
Tip
Perform this in the following order:
• Put the attachment screws in the
holes but do not tighten them yet (if
they have been removed earlier).
• Place the bracket on the attachment
screws.
• Secure the bracket with its attach-
ment screws.
3
Parts:
• A: Base
• B: Attachment screws (2 pcs)
• C: Bracket
Continues on next page
214 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.3.2 Refitting the complete cable harness
Continued
