NoteAction
xx0900000099

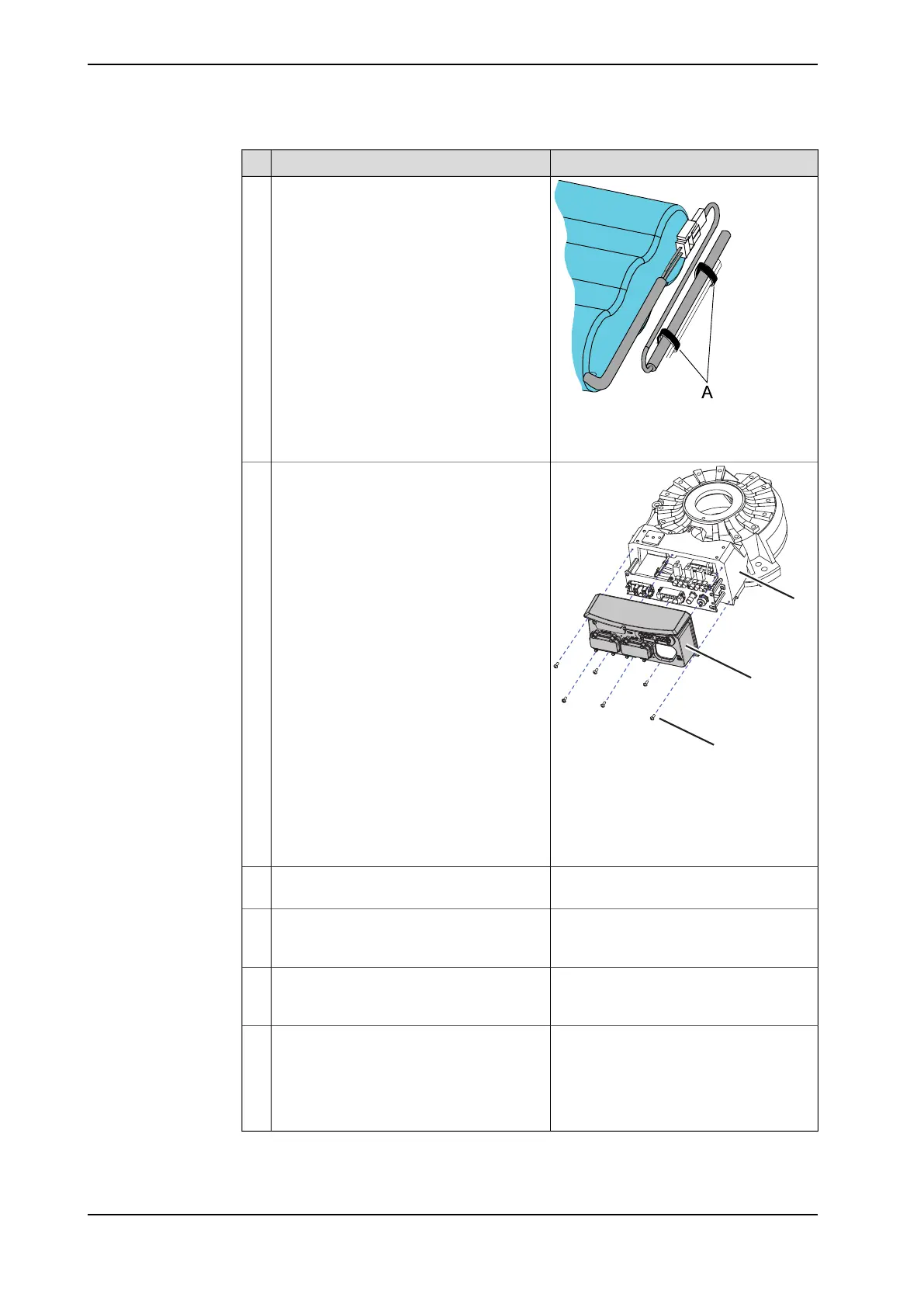

Secure the battery cable with cable straps.16
Parts:
• A: Cable straps (2 pcs)
A
B
C
xx0800000456
Use caution when pushing the base cover
into position while at the same time check-
ing that no cables are damaged.
17
Parts:
• A: Base
• B: Base cover
• C: Attachment screws (6 pcs)
Secure the base cover with its attachment
screws.
18
See the figure in:
• Location of the cable harness on
page 208
Refit the bracket on the frame.19
See the figure in:
• Location of the cable harness on
page 208
Refit the cable straps securing the cable
harness to the frame.
20
How to refit the cable harness on the
lower arm and armhouse is described in
section:
• Refitting the cable harness in the
lower arm and armhouse on
page 219
Continue the refitting of the cable package
on lower arm and armhouse.
21
Continues on next page
218 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.3.2 Refitting the complete cable harness
Continued
