ABB IRB 2600 Series User Manual

InformationAction
xx0300000186

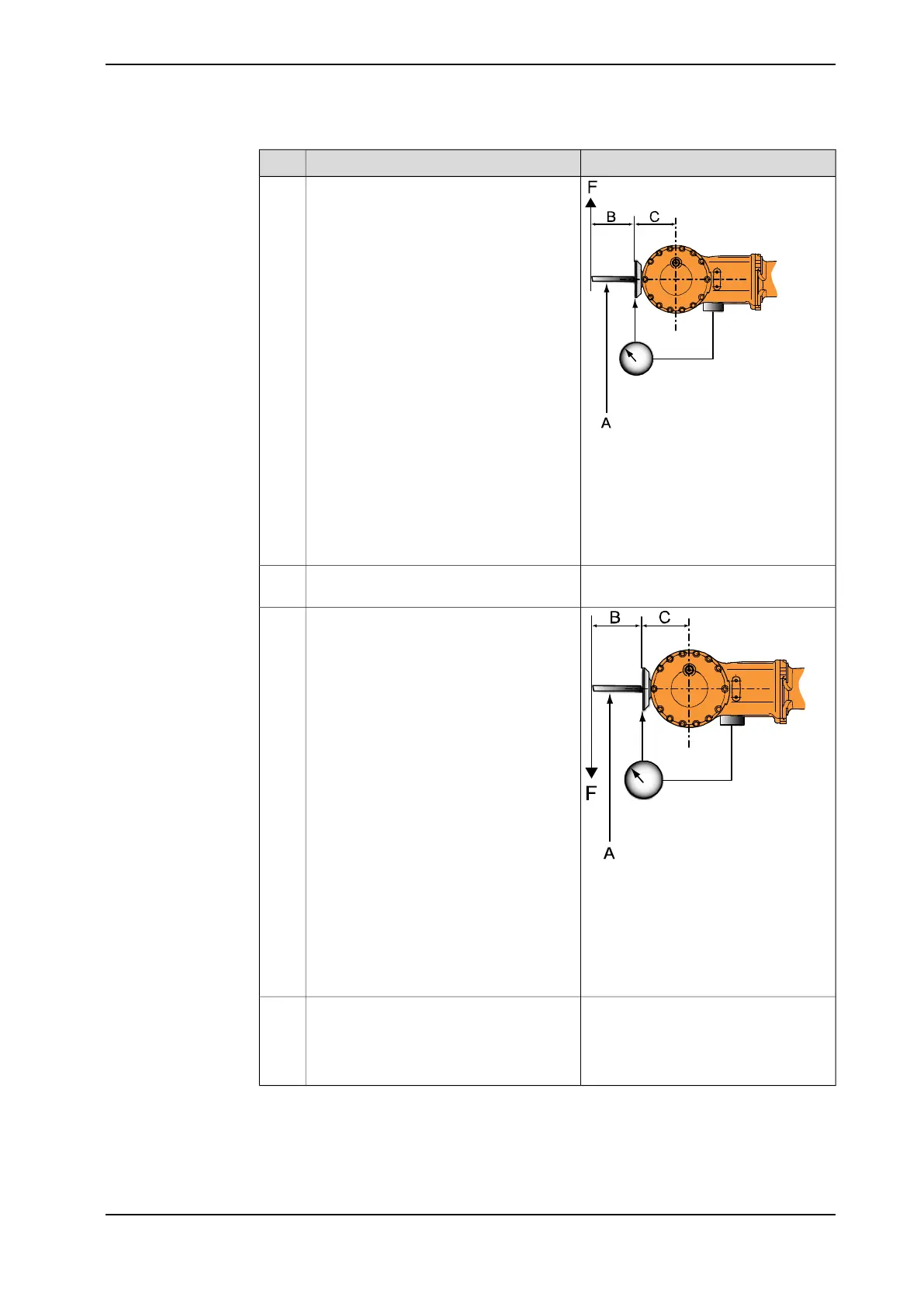

Apply load F in one direction, as shown in
the figure to the right.
4
Values for IRB 2600 -20/1.65, -12/1.65,
-12/1.85:
• A: Measuring tool, play
• B: 140 mm
• C: 85 mm
• F: 40N
Remove the load and set the dial indicator
to zero.
5
xx0300000187
Apply load F in the opposite direction, as
shown in the figure to the right.
6
Values for IRB 2600 - 20/1.65, -12/1.65,
-12/1.85:
• A: Measuring tool, play
• B: 140 mm
• C: 85 mm
• F: 40N
The maximum play allowed at the given
distance from the center of axis 5 is, for
robot version:
• IRB 2600 -20/1.65, -12/1.65, -
12/1.85: 0.12 mm
Remove the load and measure the play by
reading the dial indicator.
7
Product manual - IRB 2600 269
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.4.4 Measuring the play, axis 5
Continued
