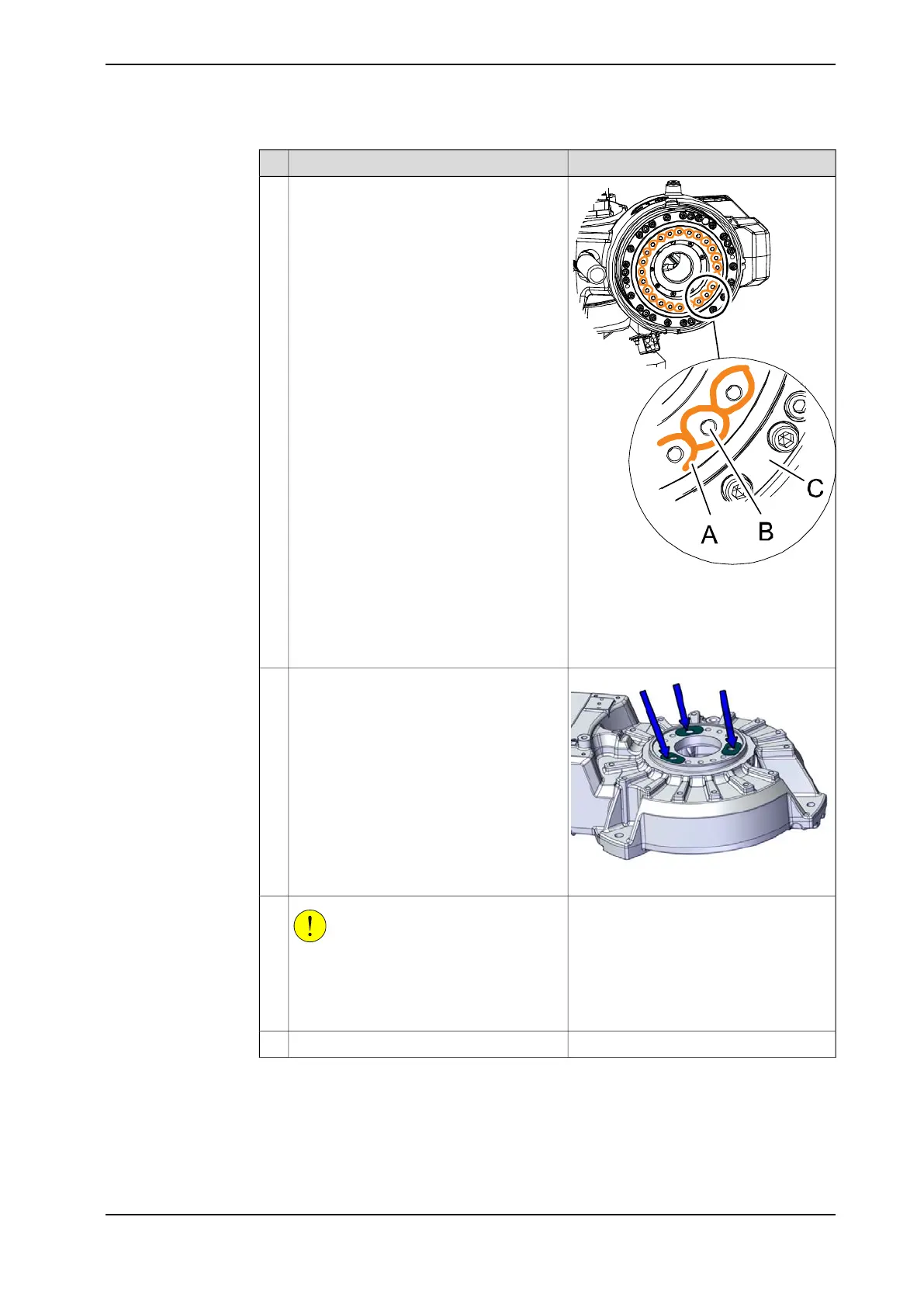

ABB IRB 2600 Series User Manual

NoteAction
xx0800000353
Valid for IRB 2600-20/1.65, IRB 2600-
12/1.65, IRB 2600-12/1.85, IRB 2600ID-
15/1.85, IRB 2600ID-8/2.0:
Apply Loctite 574 around the screw holes
on the axis-1 gearbox as shown in the fig-
ure.
5
Parts
A Loctite 574
B Screw hole in axis-1 gearbox
C Axis-1 gearbox
xx1800000797
Valid for IRB 2600 Type C-20/1.65, IRB
2600 Type C-12/1.65:
Fit three new gaskets to the base. The gas-
kets are included with the gearbox spare
part.
6
CAUTION
The arm system and axis-1 gearbox weighs
235 kg together.
All lifting accessories must be sized accord-
ingly.
7
Lift the arm system to the mounting site.8
Continues on next page
Product manual - IRB 2600 297
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.6.2 Replacing the base
Continued
