Weights
The motors for the different axes weighs according to the table:
Weight in kgMotor
13 kgAxis-1 motor
13 kgAxis-2 motor
8 kgAxis-3 motor
6.5 kgAxis-4 motor
6.5 kgAxis-5 motor
6.5 kgAxis-6 motor
CAUTION
All lifting equipment must be sized accordingly!

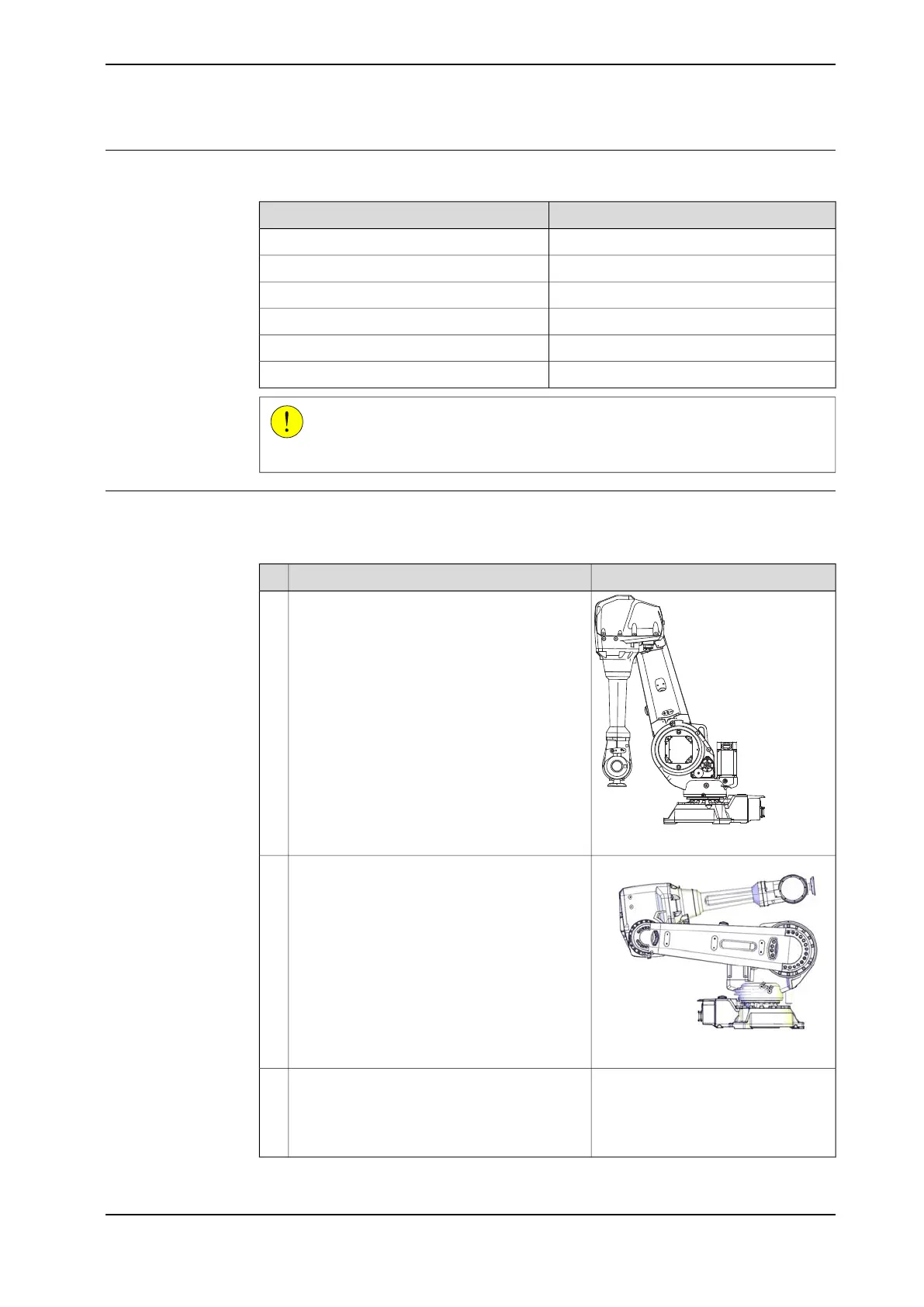

Position of robot
Use this procedure to place the robot in the position recommended in order to
facilitate replacement of motors.
InformationAction
xx0800000388
Axis-1, axis-4, axis-5 and axis-6 motors (IRB
2600 Standard)
Axis-1 and axis-4 motors (IRB 2600ID)
• Move the robot to a position where the
wrist is pointing to the floor, as shown in
the figure. This will make it possible to
remove the motors without draining the
oil from the gearbox.
xx1100000548
Axis-2 motor
• Move the robot to a position where the
lower arm rests firmly on the axis-3
damper. Release the axis-2 brake to be
sure that the lower arm rests in the end
position.
Axis-3 motor
• Move axis-2 to 0° and axis-3 to maximal
+. Release the axis-3 brake to be sure
that the upper arm is completely vertical
and rests against the damper.
Continues on next page
Product manual - IRB 2600 319
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.7.2 Refitting motors
Continued
