ABB IRB 2600 Series User Manual

IRB 2600 Type C-20/1.65, IRB 2600 Type C-12/1.65

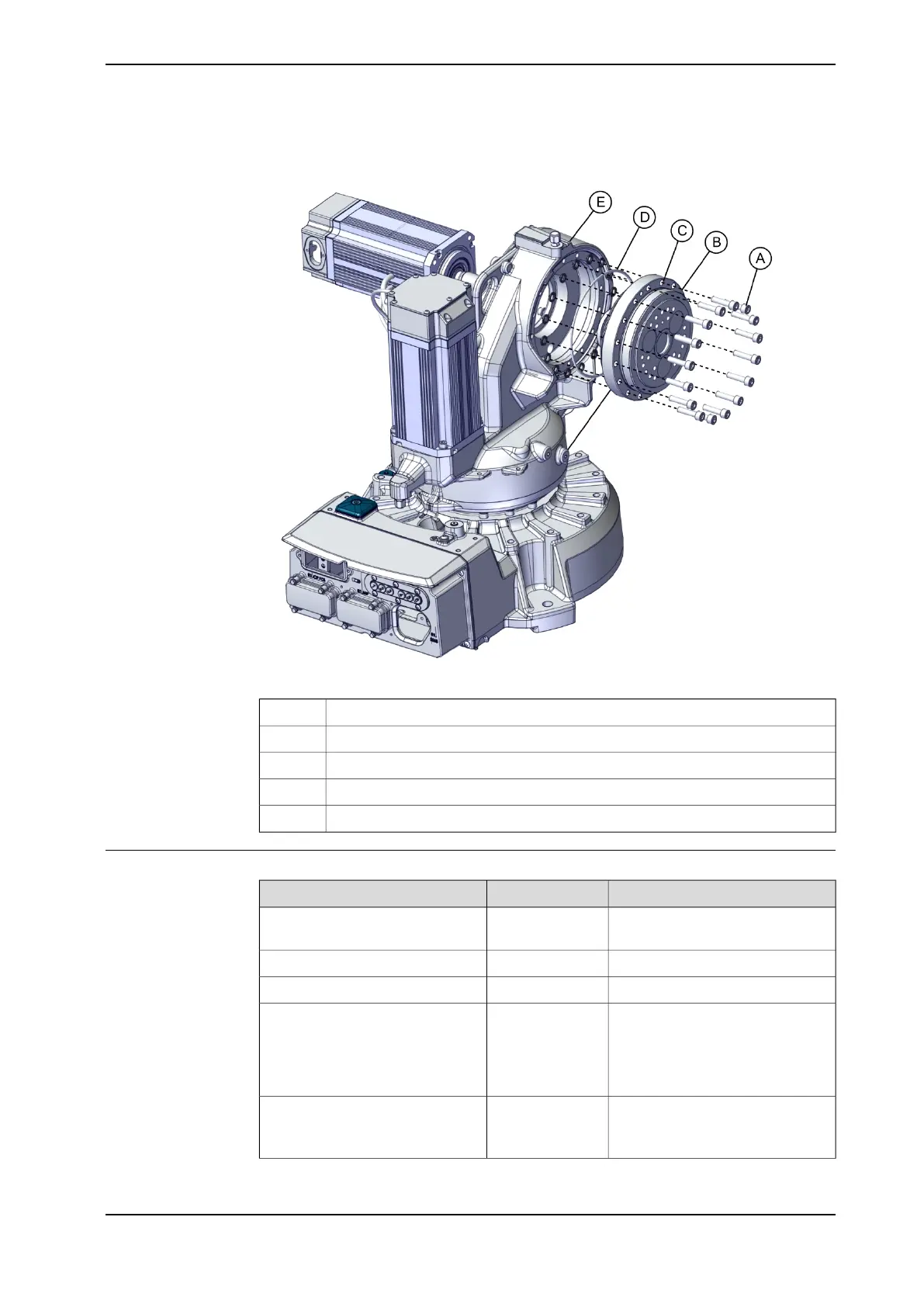

xx1800000940
Attachment screws M10x40 12.9 Gleitmo 603+Geo500 (16 pcs)A
Washers (16 pcs)B
Gearbox axis 2C
O-ringD
FrameE
Required equipment
NoteArticle numberEquipment
See Spare part
lists on page 445.
Gearbox
3HAB7887-1Rotation tool
Roundslings.-Lifting accessories
Valid for IRB 2600-20/1.65, IRB
2600-12/1.65, IRB 2600-12/1.85,
IRB 2600ID-15/1.85, IRB 2600ID-
8/2.0.
3HAC15520-2Guide pin, M8x150
Always use guide pins in pairs.
Valid for IRB 2600 Type C-20/1.65,
IRB 2600 Type C-12/1.65.
3HAC15521-2Guide pin, M10x150
Always use guide pins in pairs.
Continues on next page
Product manual - IRB 2600 371
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.8.2 Replacing gearbox axis 2
Continued
