A071010 V3 EN

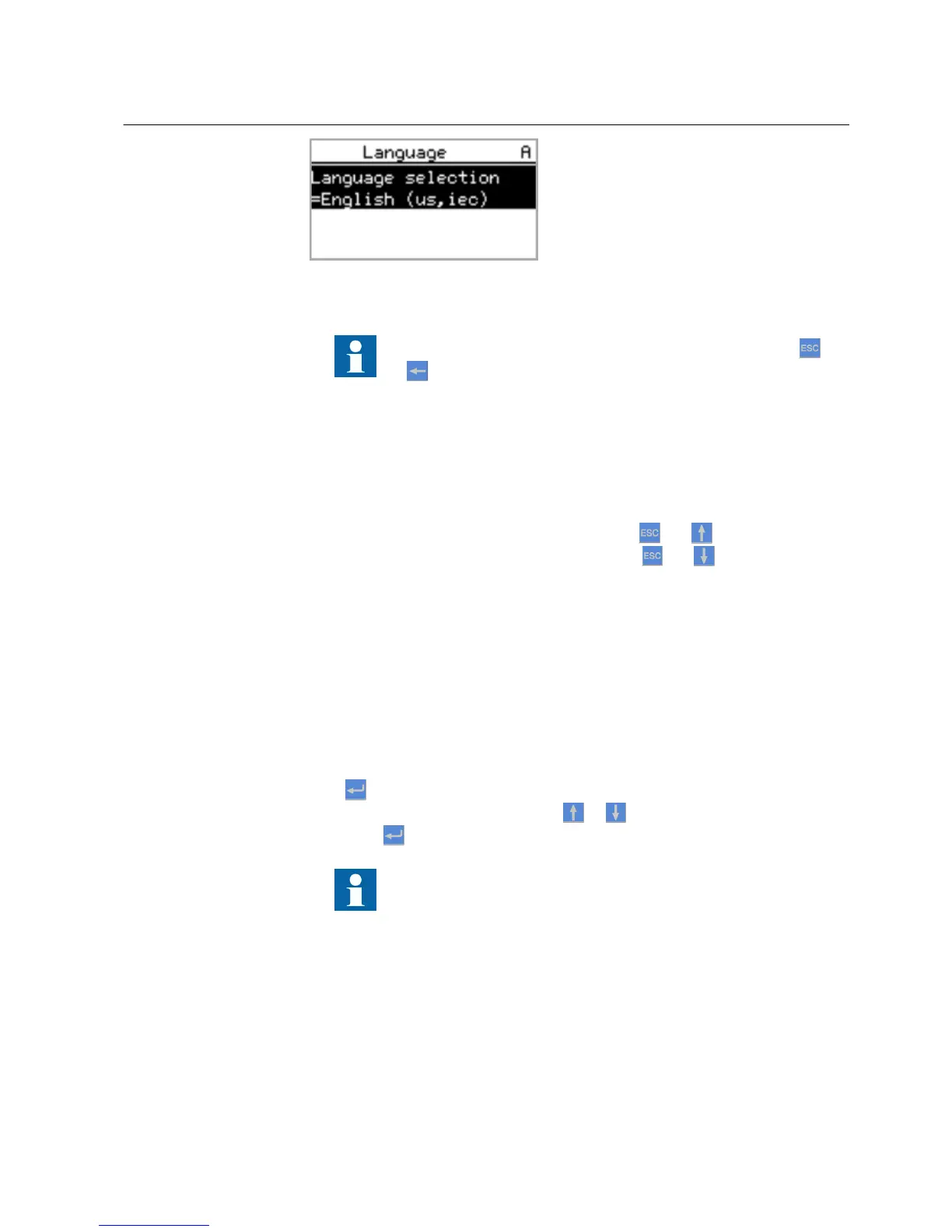

Figure 66: Changing the LHMI language
You can change the language also by pressing simultaneously and
.
8.5.2.2 Adjusting display contrast
Adjust the display contrast anywhere in the menu structure to obtain optimal
readability.
•
To increase the contrast, press simultaneously and .
•
To decrease the contrast, press simultaneously and .
The selected contrast value is stored in the non-volatile memory if you are logged in
and authorized to control the IED. After an auxiliary power failure, the contrast is
restored.
8.5.2.3 Changing display symbols
To switch between the display symbols IEC 61850, IEC 61617 and IEC-ANSI:
1. Select Main Menu/Configuration/HMI/FB naming convention and press
.
2.
Change the display symbols with or .
3.
Press to confirm the selection.
The IED has to be rebooted if the WHMI display symbols are
changed. With the LHMI, the change takes effect immediately.
8.5.2.4 Changing the default view
The default view of the display is the Measurements unless set otherwise.
1MRS756499 A Section 8
Commissioning
RED615 93
Operation Manual
